Installation
Install delivery system
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 41
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com M0930207
3

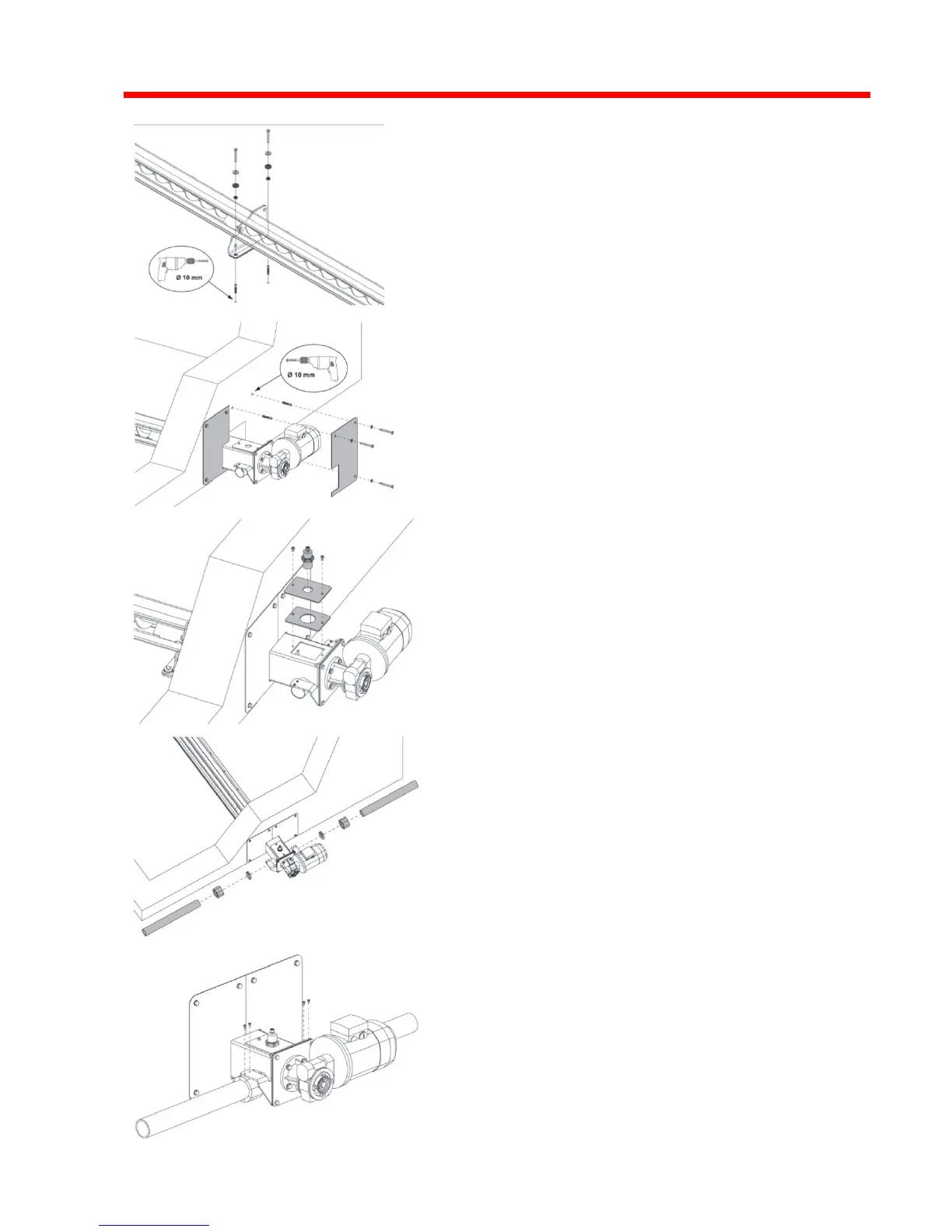

Drill holes in the floor with a power drill
( 10mm) and hammer in the nylon plugs).
Insert a soundproof washer 18 mm in each of
the holes in the adjustable feet and position a
soundproof washer 30 mm on top.
Secure the adjustable feet to the floor with frame
screws and spacer wahers.
The assembly material provided for the
following steps is a suggestion. Use a
material that is best suited to the surface.
Pack the space in the hole in the wall with a non-
flammable material.
Drill holes in the wall lining of the outer wall of
the store with a power drill ( 10mm) and
hammer in the nylon plugs provided.
Secure the wall linings with frame screws and
spacer washers.
Remove the inspection cover from the suction
piece.
Unscrew the bottom nut on the jam sensor.
Push the jam sensor through the hole in the
inspection cover and secure with the nut
previously removed.
The sensor should project approx. 1 cm into
the suction piece.
The sensitivity is set during initial startup.
Replace the inspection cover on the suction
piece.
Lay both hose lines in the boiler room from the
boiler to the suction piece.
Slide a fire protection collar and hose clamp onto
the hose lines.
Place the hose line on the suction piece and
secure with hose clamp.
When connecting the hose lines, beware of
static discharge!
Screw the fire protection collars to the brackets
on the suction piece (optional).
