Installation
Install delivery system
Page 40
M0930207 I
3

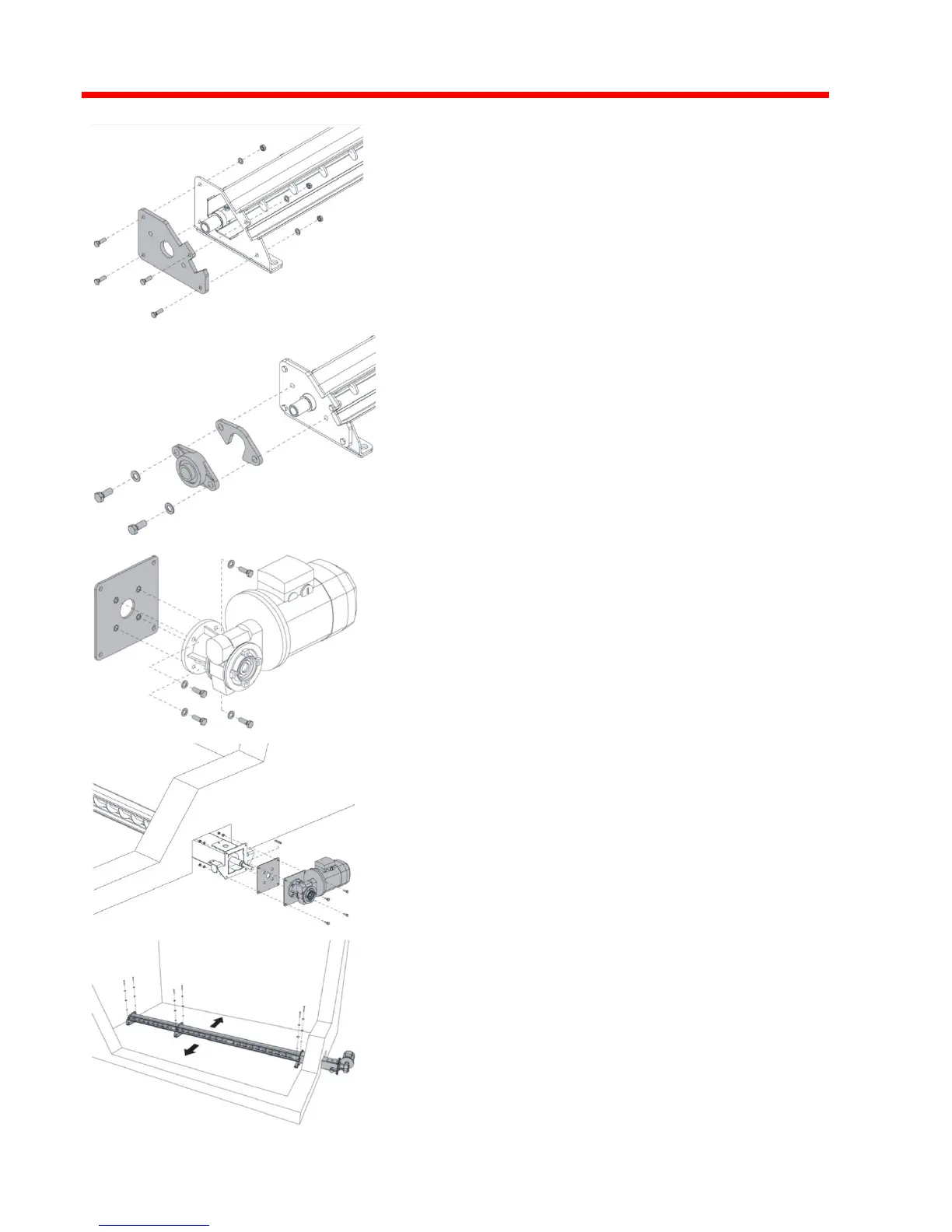

Slide the flange plate over the shaft endpiece and
screw to the trough.
Fit the ejecting flange and flange bearing to the
flange plate.
The opening of the ejecting flange must face
down.
Fit the gear flange to the geared motor as
shown.
Slide the flange seal onto the pellet screw and
insert the key into the groove on the stub shaft.
Attach the geared motor and screw to suction
piece.
There is no particular installation position
specified for the geared motor.
Align the complete unit in the store so that it is
parallel to the outer walls.
Align the height of the troughs, evening out any
bumps in the ground with spacer washers under
the soundproof plates.
