Froling P4 - Dismantling the Suction Cyclone Cover

Technology
Components, Connections, and Dimensions
Page 20
M0930207 I
3

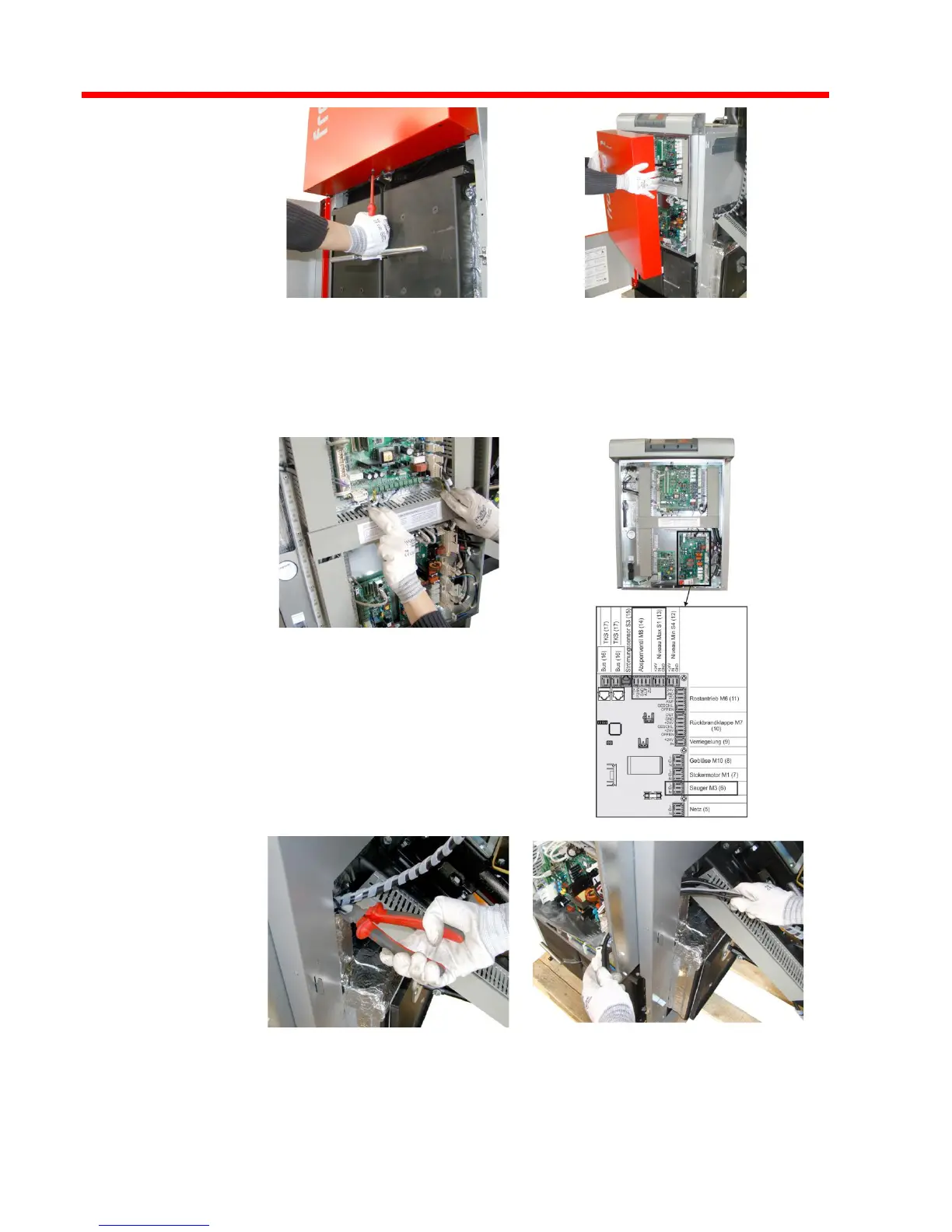

❒ Remove the screw and lock washer on the bottom of the controller cover.
❒ Remove the controller cover.
3.3.2 Dismantling the suction cyclone cover
❒ Remove the covering of the middle
cable duct.
At the pellet module:
❒ Unplug the components:
▪ "Suction unit M3"
▪ "Max level S1"
▪ "Gate valve M8"
❒ Undo the cable ties at the cable leadthrough.
❒ Pull out the cables of the unplugged components.
