Installation
Install delivery system
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 39
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com M0930207
3

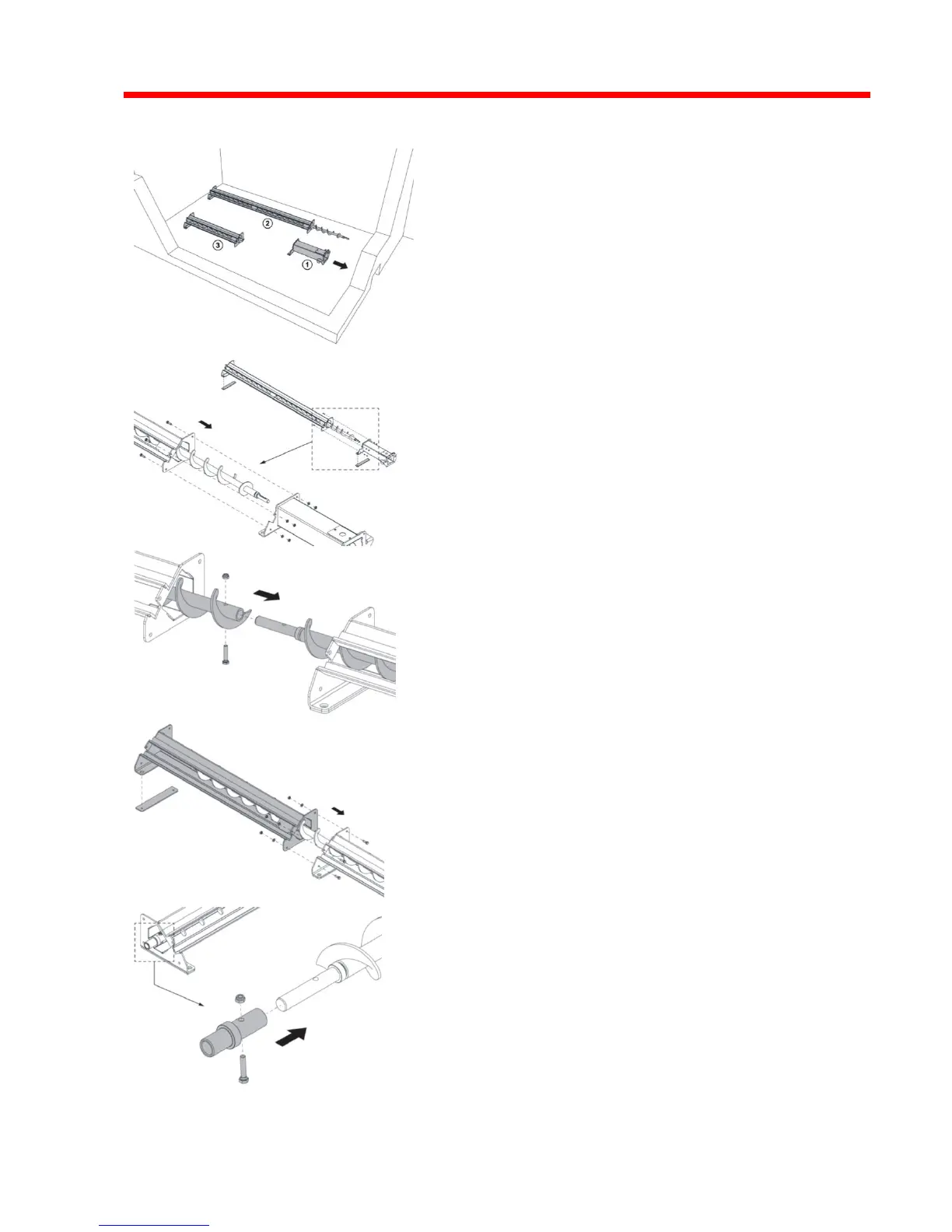

Position the main components in the store.
(1) Suction piece
(2) Basic screw with trough
(3) Extension screw(s) with trough (number
depends on model)
Push suction piece from inside out through the hole in
the wall.
Place the open pellet trough and the basic screw at the
suction piece and screw together as shown.
Fit a soundproof plate under each of the adjustable feet.
If an extension trough is not being used, skip the
next two assembly steps.
Place the extension screw and trough at the basic
screw.
Telescope the basic screw and extension screw.
Ensure that the two ends of the screw blade are
aligned and that there is continuous slope.
Secure the joint with hexagonal screw M8 x 40 mm and
safety nut.
Screw the extension trough to trough of the base unit.
Fit the soundproof plate underneath the adjustable foot.
Repeat assembly steps for additional extension troughs.
Place the shaft endpiece on the end of the pellet screw
as shown and secure with hexagonal screw M8 x 40 mm
and lock nut.
