Plumbing Systems
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 49
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com M0930207
5
Option A: Oil/Gas boiler Circulator Connections
 If additional pump connections are needed;
mount the optional Hydraulic System Module to
wall.
Option A: Circulator Wire Connections
 Please refer to Lambdatronic Operating
Instructions Section 6.2.2 Hydraulic System
Module for complete wiring instructions.

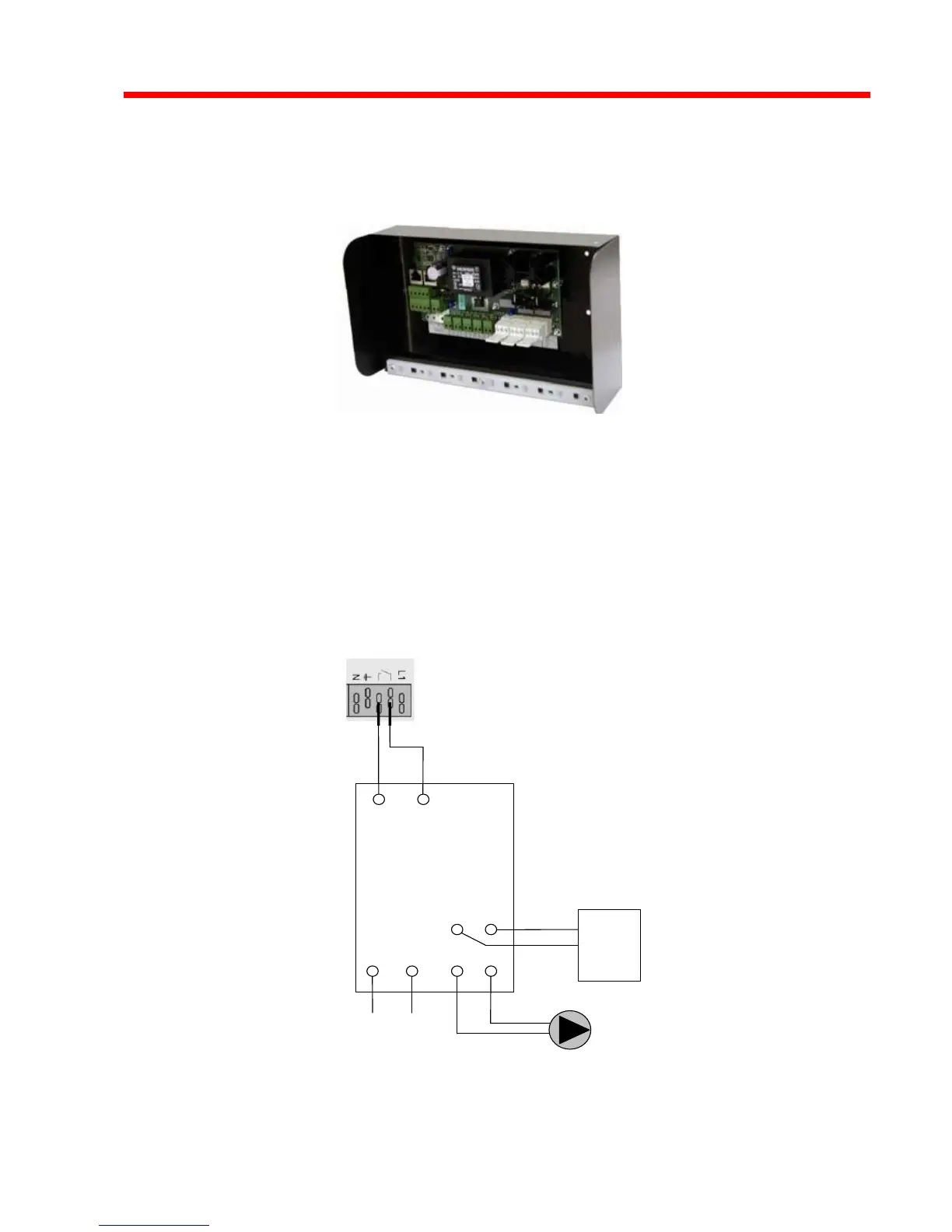

Option B: Circulator/Burner Control Wire Connections
(example only)
Core Module
Burner Relays
T T
C1 C2
B1 B2
Burner Package
1 2
Circulator
Incoming Power
Honeywell L8124C or
Equivalent on Back-up
Boiler
