Adjusting the doors
On the side with the door stop

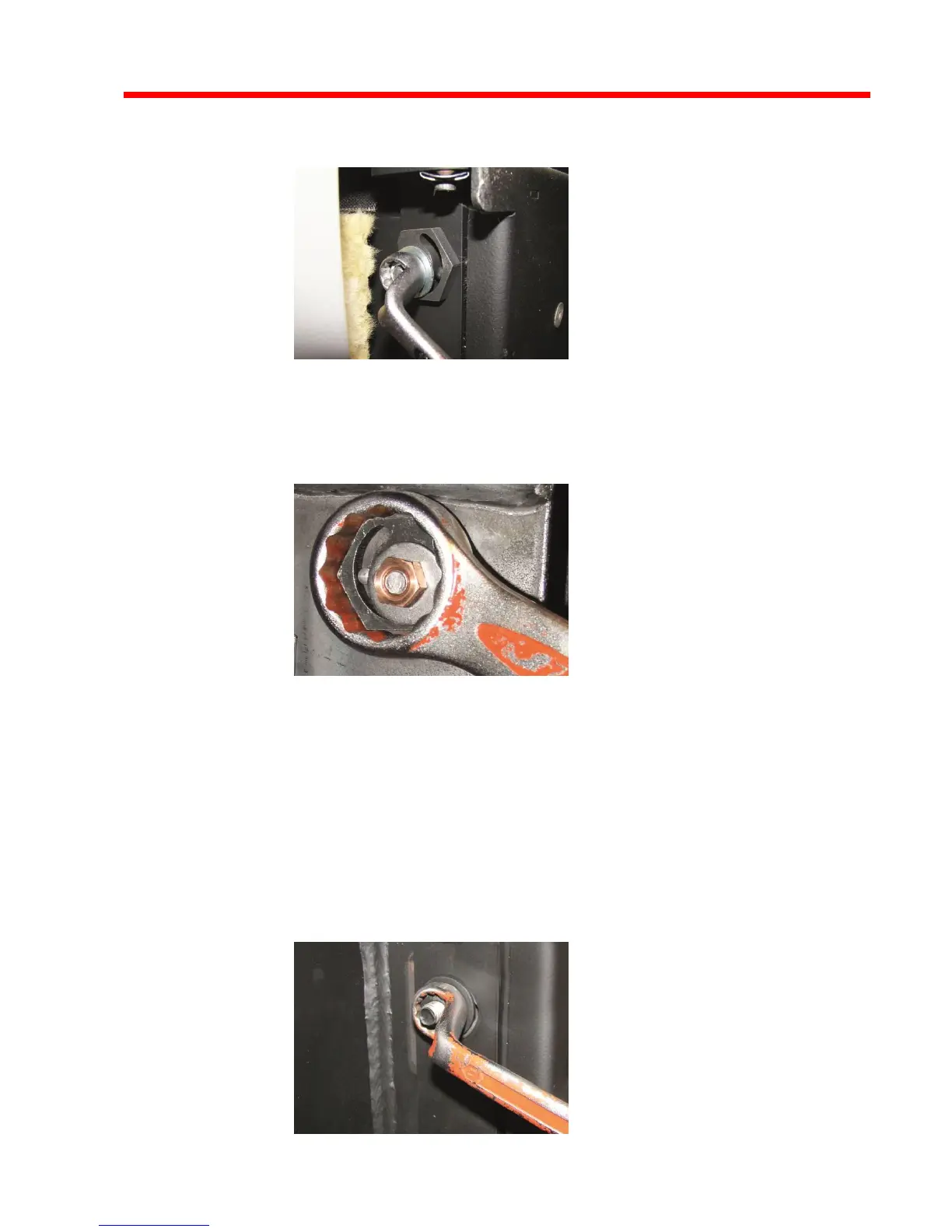

❒ Using wrench (13 mm), loosen the lock nuts on the locking cams at the
top and bottom.
❒ Close the door.
 With a gap of approx. 5-6” there should be noticeable resistance.
❒ If the resistance is too low or too high, move the locking cams backwards
or forwards using a wrench (32 mm).
 The movement of the locking cams causes the hinged plate to
move, allowing the contact pressure to be adjusted
 Caution: The two locking cams (top and bottom) must be aligned
❒ Close the door.
❒ If the door will not close, move the locking cams forward slightly.
 Caution: The two locking cams (top and bottom) must be aligned.
❒ Secure the lock nuts again.
On the side with the door stop
