Fronius Calibration system 2.0 - Preparing the Gas Calibration System

Preparing the
gas calibration
system

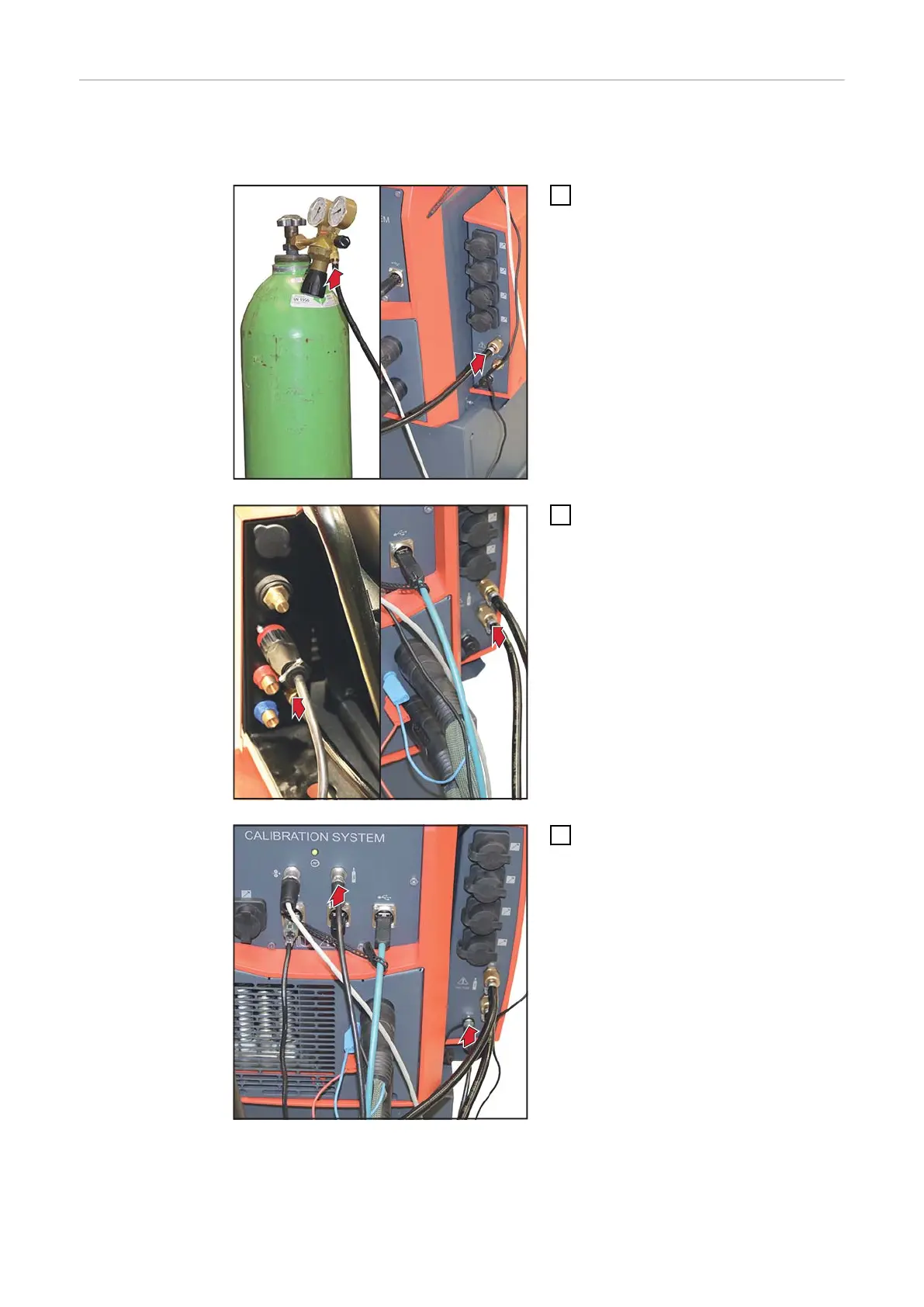

IMPORTANT! If a shielding gas supply is to be calibrated, it must be connected
to the calibration system before starting the calibration process.
The welding system and calibration system must be connected to each other.
1
1
1
Connect the gas hose to the pres-
sure regulator and to the Gas IN
connection on the calibration sys-
tem
max. supply pressure: 5 bar
2
2
2
Connect the gas hose to the
wirefeeder or the power source
and to the Gas OUT connection on
the calibration system
3
3
3
Connect the gas and data connec-
tions to each other
