Connecting the
welding wire cal-
ibration system
NOTE!
The power cables are not relevant for calibration of the welding wire!
Establish data communication between the following:
▶
power source and calibration system (LocalNet, SpeedNet, USB, etc.)
▶
power source and wirefeeder (LocalNet, SpeedNet, USB, etc.)
▶
welding wire calibration system and calibration system
1
Connect the connection cable to the welding wire calibration system
IMPORTANT! A maximum of 3 connection cables (max. 15 m) can be used to
connect the welding wire calibration system and the calibration system!
2
Connect the connection cable to the calibration system
3
Connect the welding torch to the welding system
4
Remove the gas nozzle from the welding torch
5
Thread the wire
The welding wire should protrude approx. 200 mm from the contact tip.
6
Thread the welding wire into the intake part of the sensor
7
Use clamps to secure the welding torch in the welding wire calibration system
at the contact tip
8
Make sure that the torch hosepack is arranged as straight as possible
Connecting the
computer to the
calibration sys-
tem and signa-
ture pad
1
Connect the USB connection cable to the calibration system and the com-
puter / laptop
2
Connect the Signotec signature pad to the calibration system
3
Switch on the power source
Preparing the
gas calibration
system
IMPORTANT! If a shielding gas supply is to be calibrated, it must be connected
to the calibration system before starting the calibration process.
The welding system and calibration system must be connected to each other.

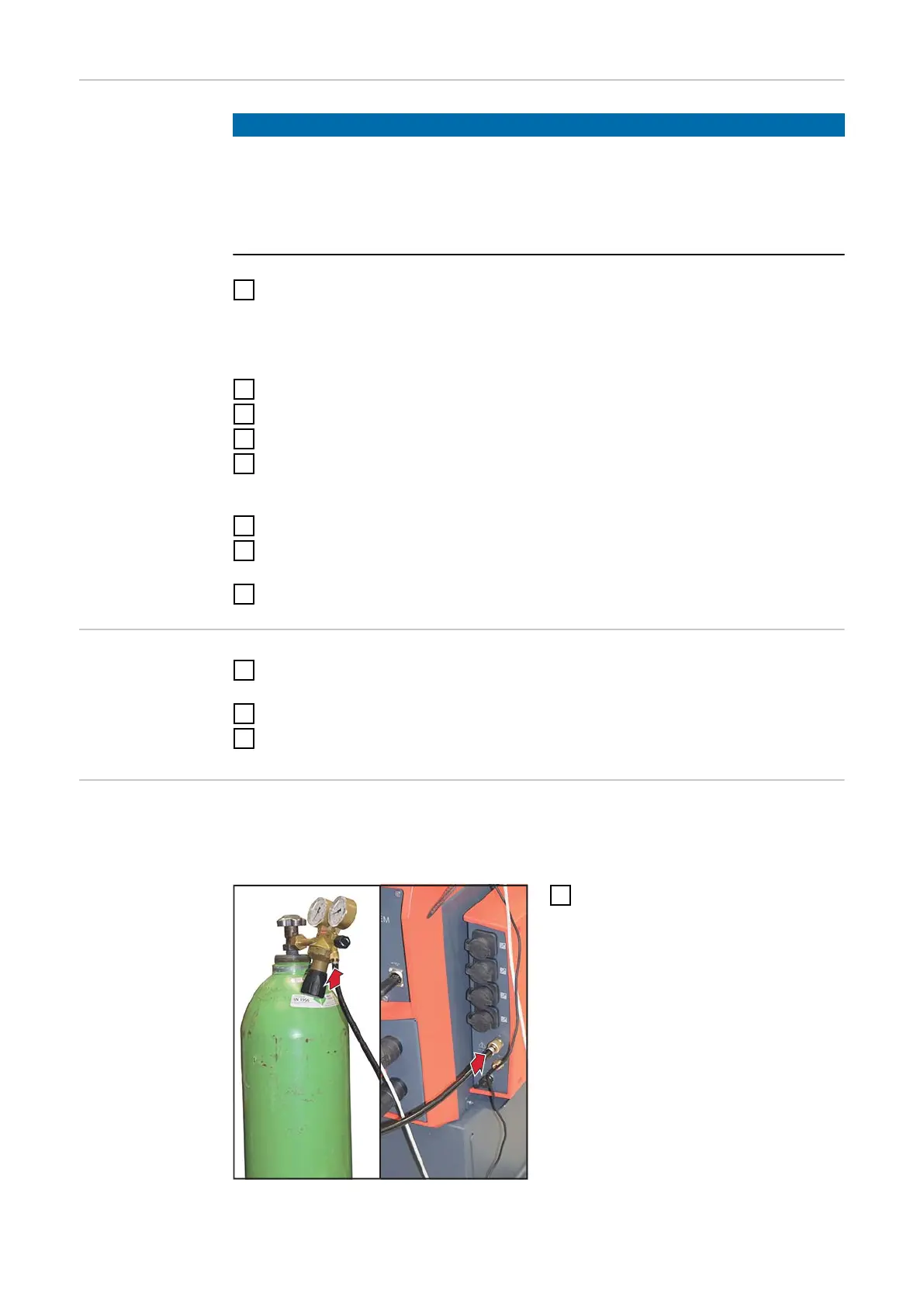

1
Connect the gas hose to the pres-
sure regulator and to the Gas IN
connection on the calibration sys-
tem
max. supply pressure: 5 bar
60
