Fronius MIG/MAG - Pushpull with SB 60 I, 4-Roller Unreeling Wirefeeder and Wirespool

29
EN
PushPull with SB
60i, 4-roller un-
reeling wirefeeder
and wirespool

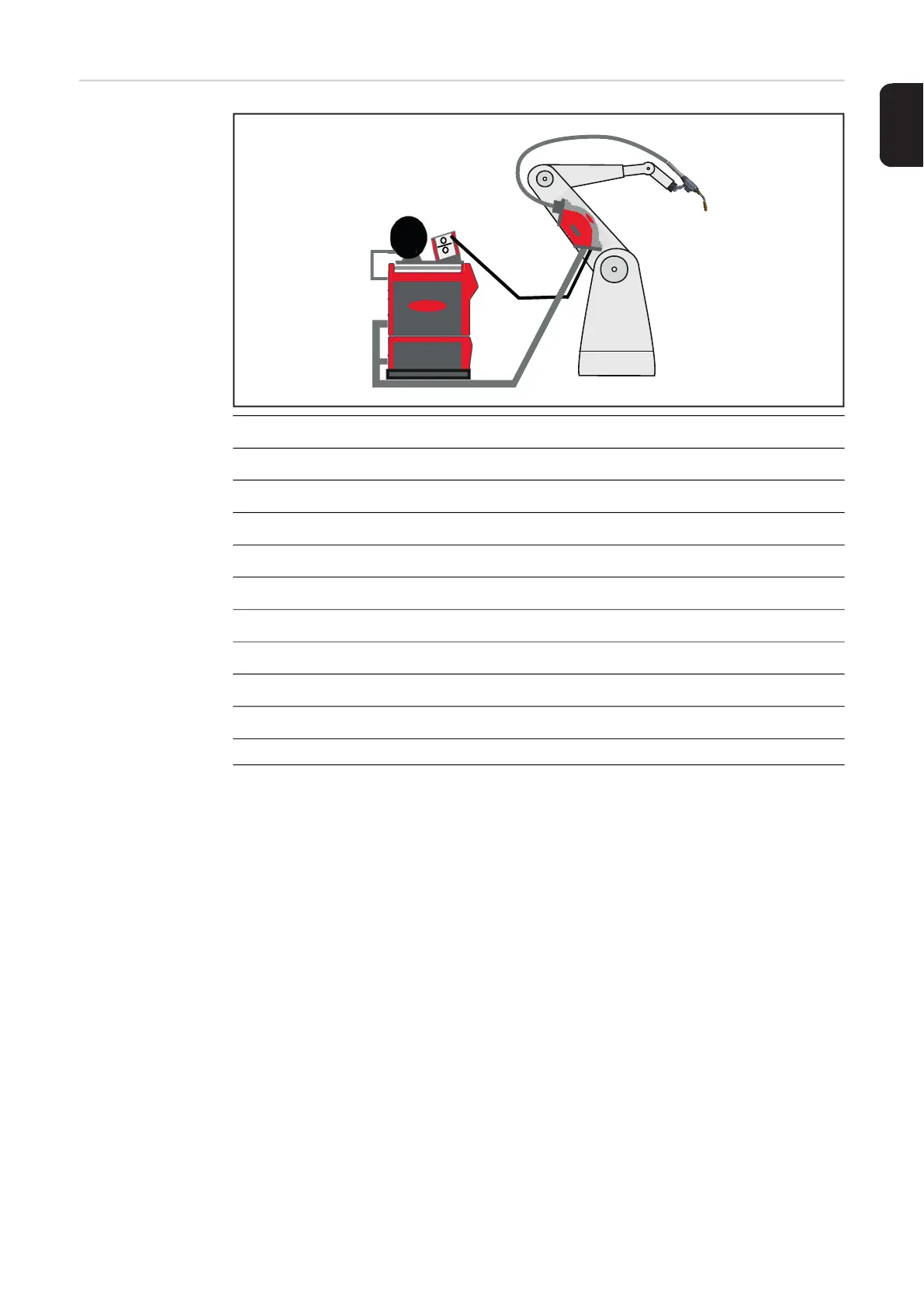

(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) SplitBox SB 60i R
(9) MHP /i R welding torch hosepack
(10) WF 25i Robacta Drive
(11) MTB /i R robot welding torch
Maximum wirefeed length:
- max. 4 m between drive unit and SB 60i R
- max. 6 m between SB 60i R and unreeling wirefeeder
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
(10)
(11)**
(9)
(1)
(7)**
(2)
(8)
(3)
(4)
(5)
(6)
