Fronius MIG/MAG - Fitting the Interconnecting Hosepack; Fitting the Standard Interconnecting Hosepack to the Robot; Connecting the Extension Hosepack

97
EN

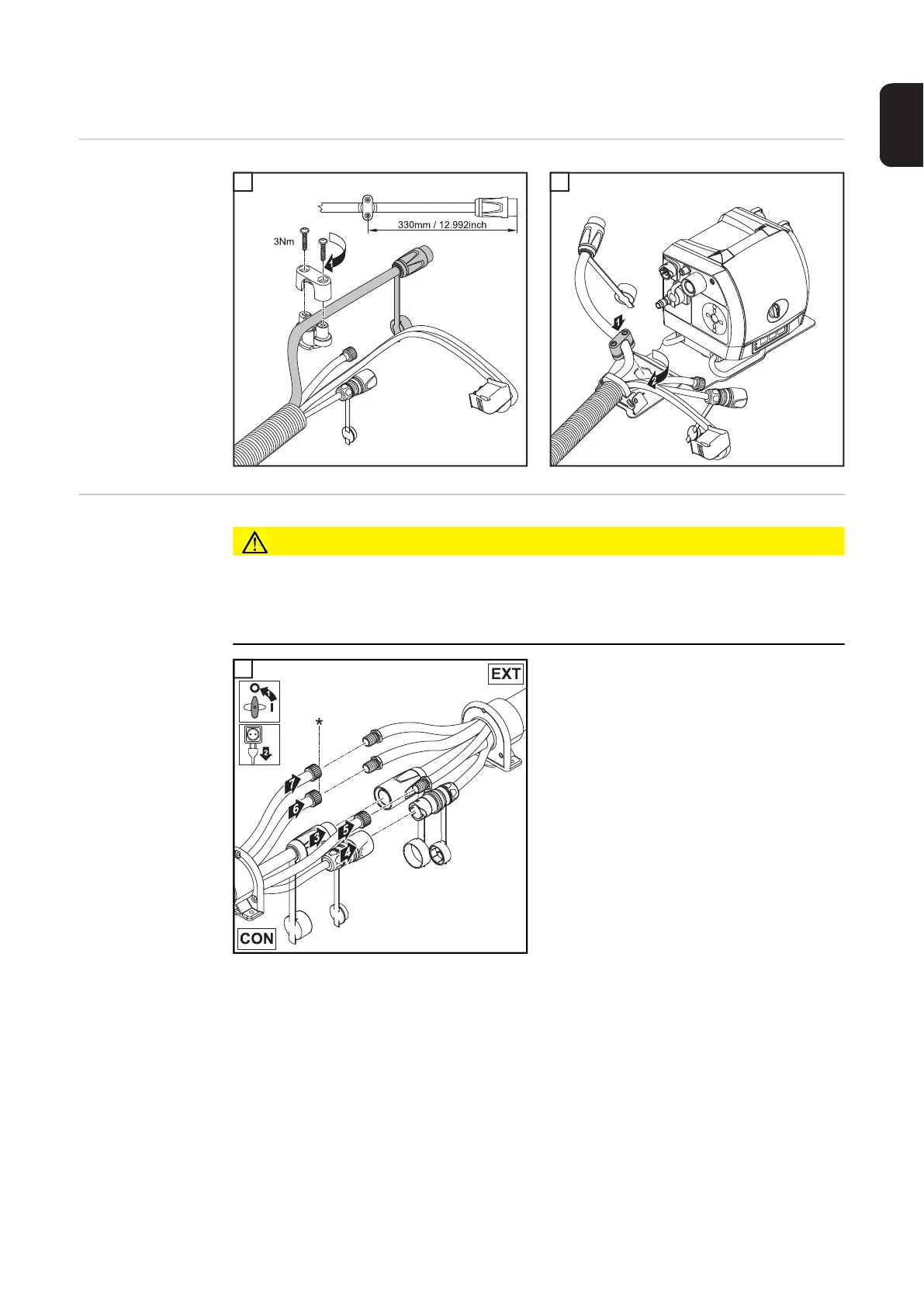

Fitting the interconnecting hosepack
Fitting the stand-
ard interconnect-
ing hosepack to
the robot
1 2
Connecting the
extension hose-
pack
CAUTION!
Danger from electric current due to inadequate connections.
This can result in serious injury and damage to property.
► All cables, leads and hosepacks must be properly connected, undamaged, correctly in-
sulated and adequately dimensioned.
1
* Only on water-cooled hosepack
CON = Interconnecting hosepack
EXT = Extension hosepack
1
SB 500i
2
1
