Fronius MIG/MAG - Pushpull with 2-Roller Unreeling Wirefeeder and Wire Drum

37
EN

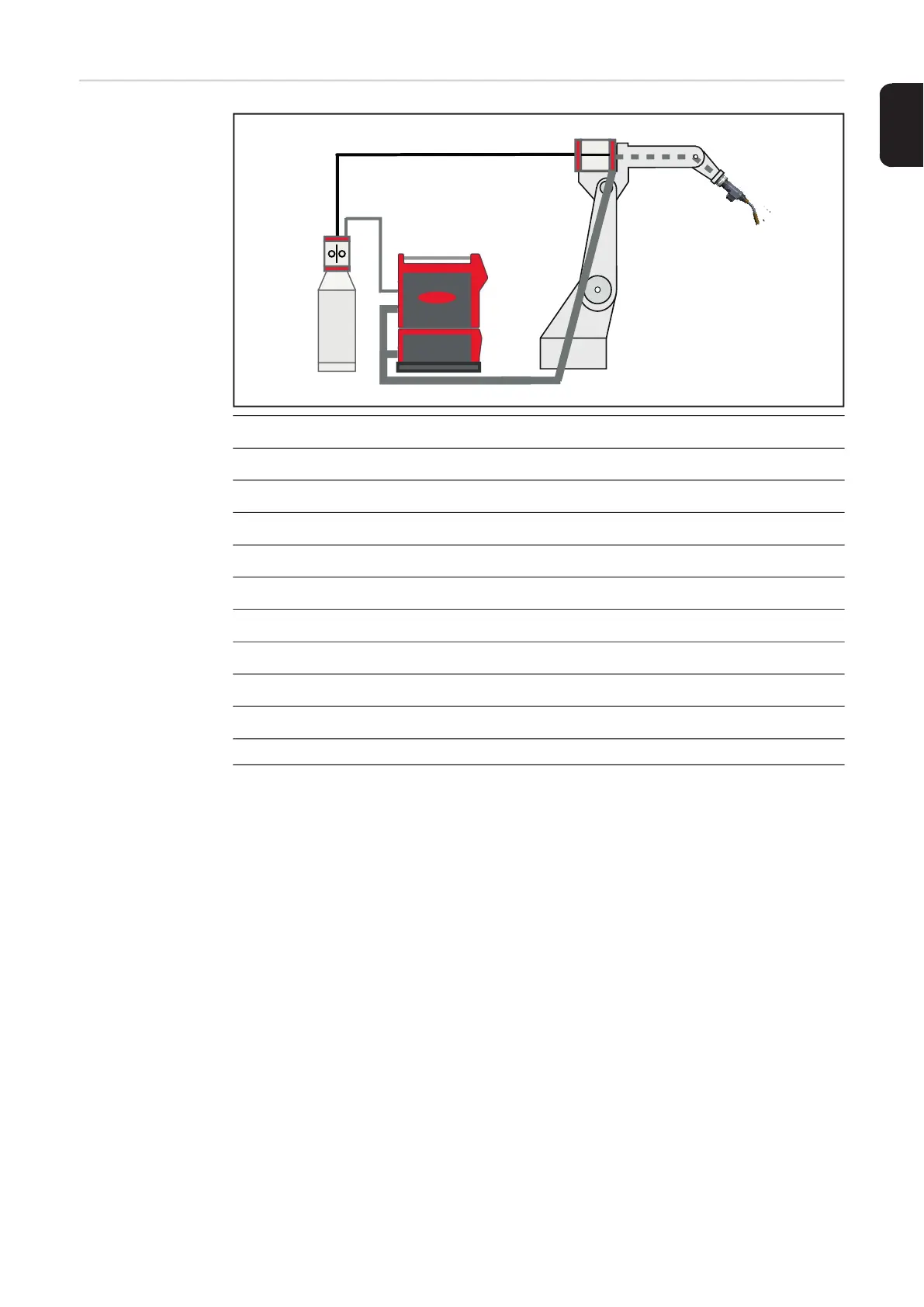

PushPull with 2-
roller unreeling
wirefeeder and
wire drum
(1) Unreeling wirefeeder WF 30i REEL 2R
(2) SpeedNet cable COM
(3) Wirefeeding hose with inner liner
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) SplitBox SB 500i R
(9) MHP /i R welding torch hosepack
(10) WF 25i Robacta Drive
(11) MHP /i R robot welding torch
Maximum wirefeed length:
max. 8 m between drive unit and unreeling wirefeeder
(max. 10 m with PowerLiner)
Minimum length between wirefeeder and drive unit:
4 m
Possible wire diameters:
0.8 - 1.6 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
IMPORTANT! This configuration is only possible with wire drum. A wirespool cannot be
used.
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
(8)
(4)
(5)
(11)**
(9)*
(3)*
(6)
(10)
(7)
(1)
(2)
