Fitting the CrashBox /i to the robot
Fitting the Crash-
Box /i to the robot
1

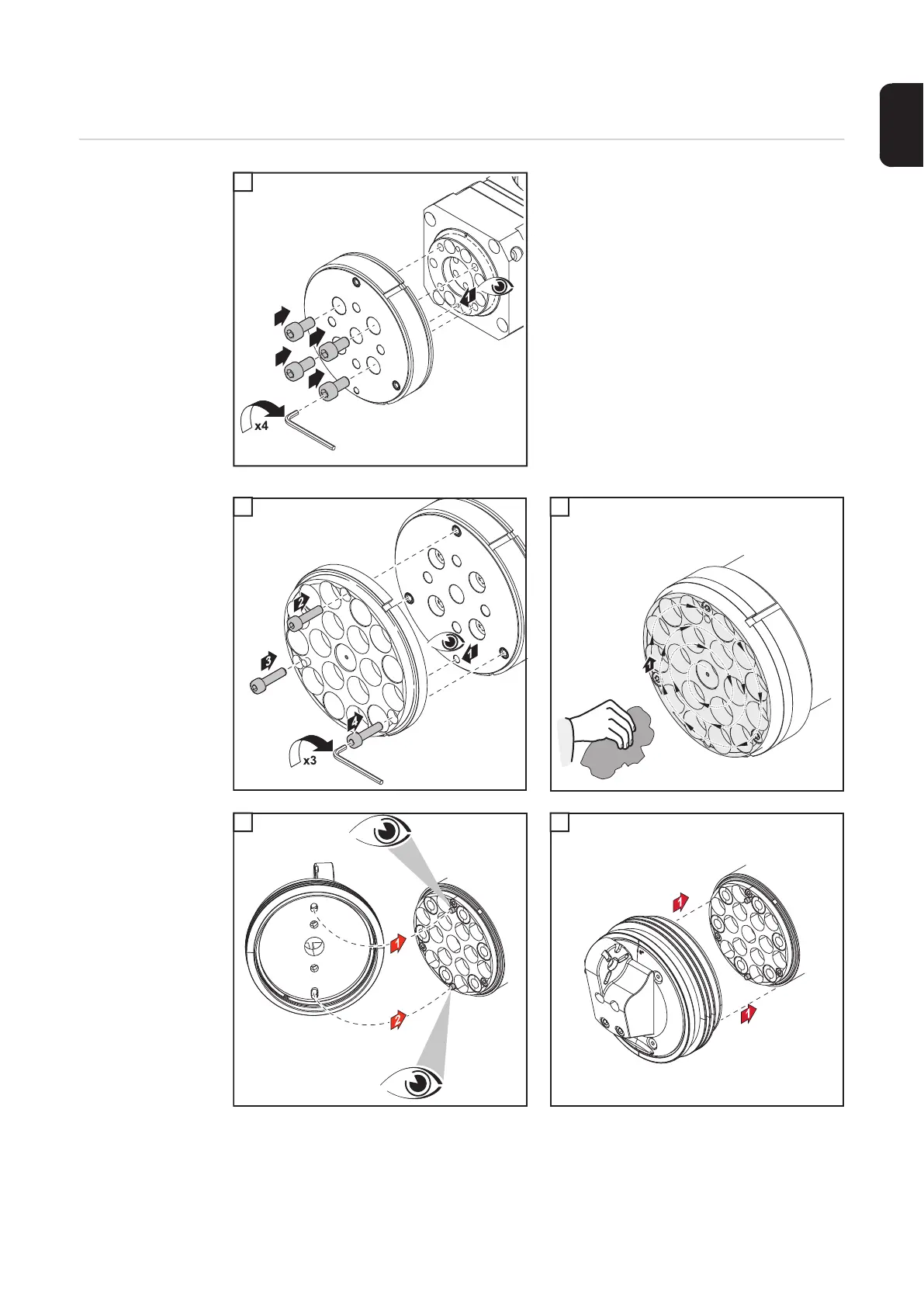

Observe the torques when fitting the robot
flange:
Max. tightening torque for screws of
strength class 8.8
M4 3.3 Nm
M5 5.0 Nm
M6 6.0 Nm
M8 27.3 Nm
M10 54 Nm
M12 93 Nm
2 3
4 5
1
3,3 Nm
2
3
4
5
