SB 500i R PAP control elements, connections and
mechanical components
Safety
WARNING!
Danger from incorrect operation.
This can result in severe personal injury and damage to property.
► All the functions described may only be used by trained and qualified personnel.
► Fully read and understand this document.
► Fully read and understand all the Operating Instructions for the system components,
especially the safety rules.
Control elements,
connections and
mechanical com-
ponents

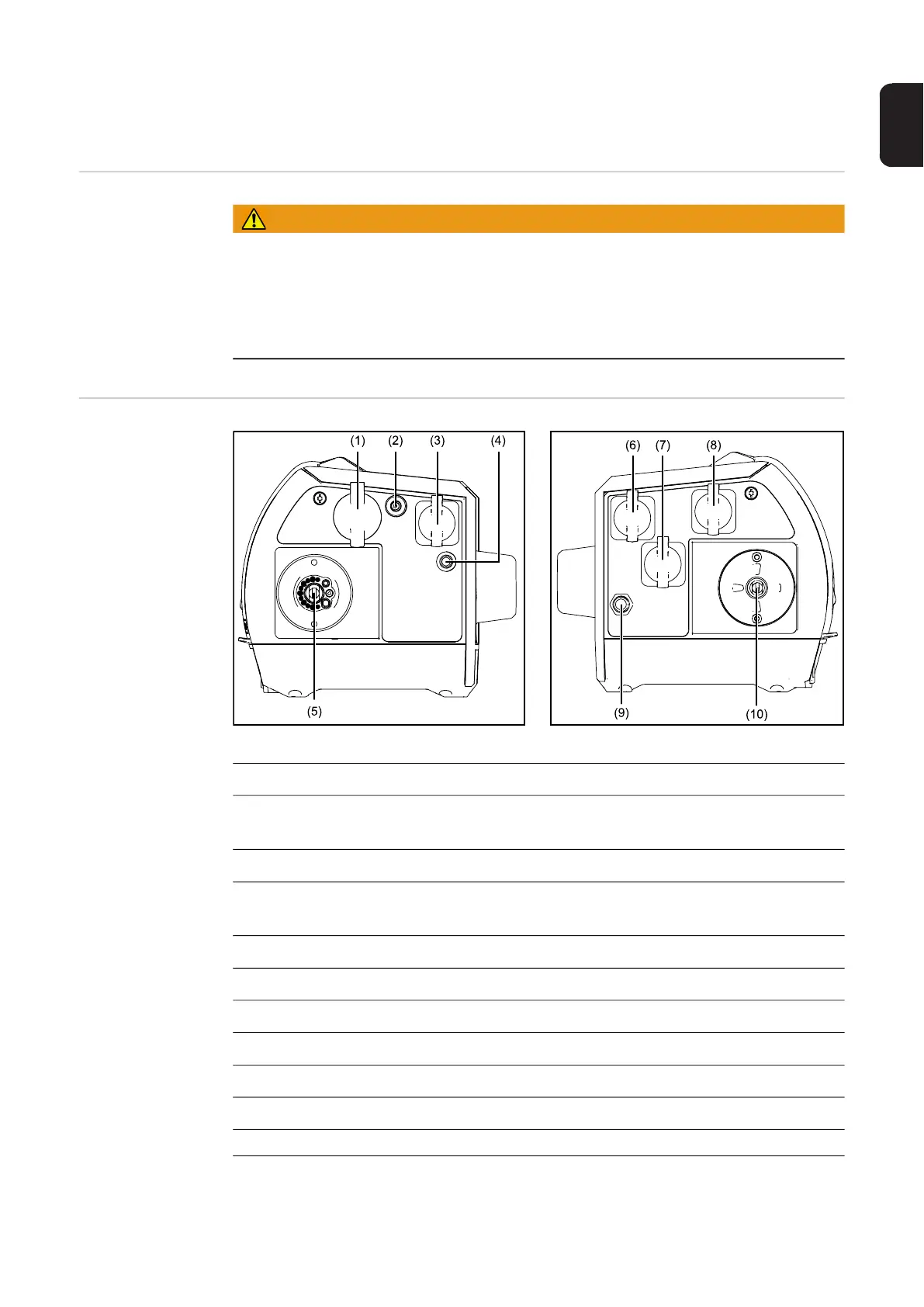

Front Rear
No. Function
(1) (+) current socket
for connecting the power cable from the interconnecting hosepack
(2) Shielding gas connection
(3) SpeedNet connection socket
for connecting the SpeedNet cable from the interconnecting hosepack
(4) Blanking cover for option 1
(5) Welding torch connection
(6) Blanking cover for option 3
(7) Blanking cover for option 4
(8) Blanking cover for option 5
(9) Blanking cover for option 2
(10) Wire infeed
