Fronius MIG/MAG - Pushpull with Wire Buffer, 4-Roller Unreeling Wirefeeder and Wirespool

39
EN

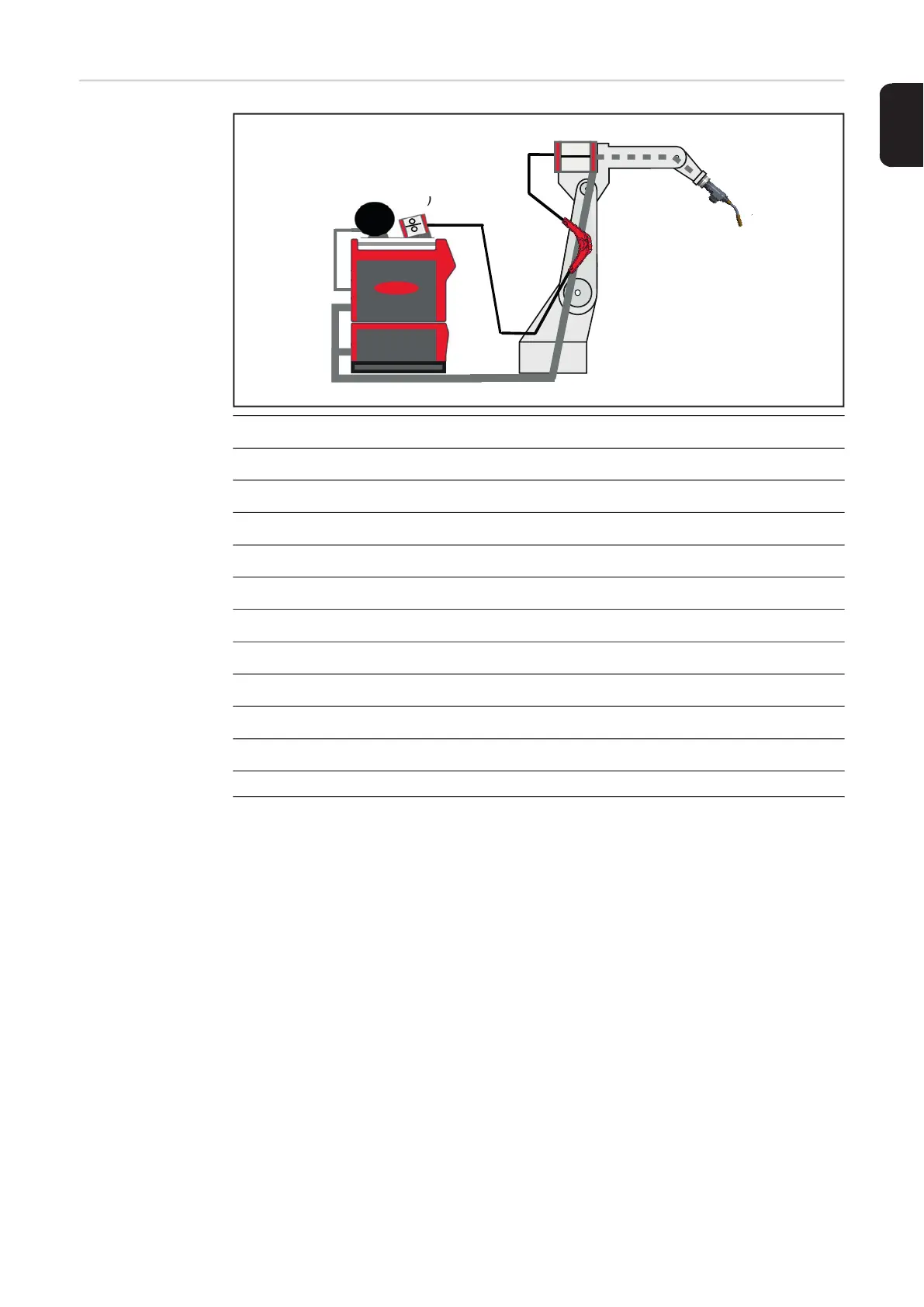

PushPull with
wire buffer, 4-roll-
er unreeling wire-
feeder and
wirespool
(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) Wire buffer
(9) SplitBox SB 500i R
(10) MHP /i R welding torch hosepack
(11) WF 25i Robacta Drive
(12) MTB /i R robot welding torch
Maximum wirefeed length:
- max. 4 m between drive unit and wire buffer
- max. 6 m between wire buffer and unreeling wirefeeder
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
(9)
(12)**
(10)*
(7)**
(8)
(1)
(2)
(7)*
(11)
(
(2
)
(3)
(4)
(5)
(6)
