Fronius MIG/MAG - Fitting the WF Robacta Drive to the Crashbox (Conventional); Fitting the Inner Liner Inside the Torch Body

94

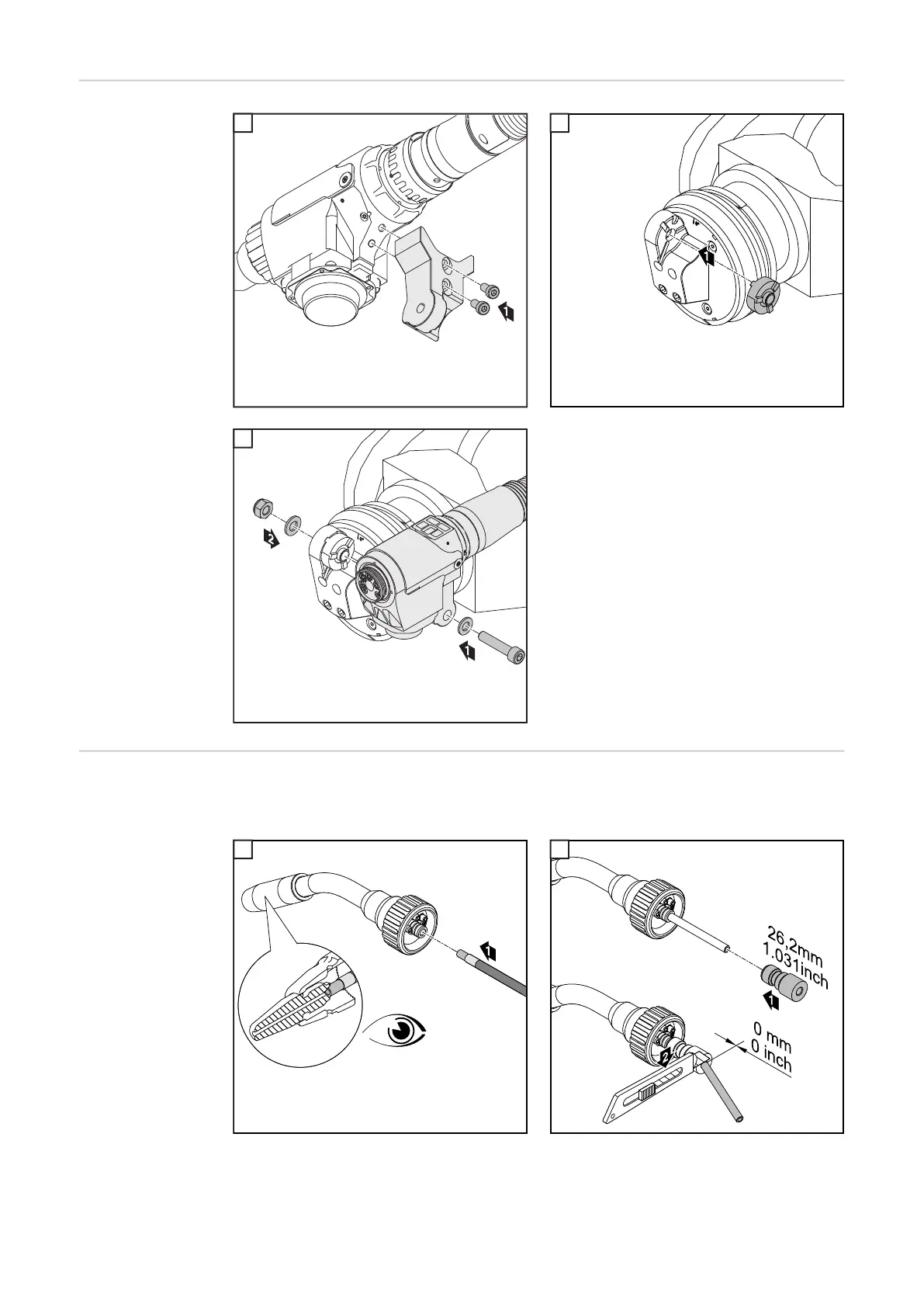

Fitting the WF Ro-
bacta Drive to the
CrashBox (con-
ventional)
1 2
3
Fitting the inner
liner inside the
torch body
IMPORTANT! For the MTB 330i welding torch, the plastic inner liner is fitted from the front.
Plastic inner liner:
1 2
10 Nm
M6 x 12 mm
1
2
42 Nm
3
1
2
