Fronius MIG/MAG - CMT with SB 500 I, 4-Roller Unreeling Wirefeeder and Wirespool

43
EN

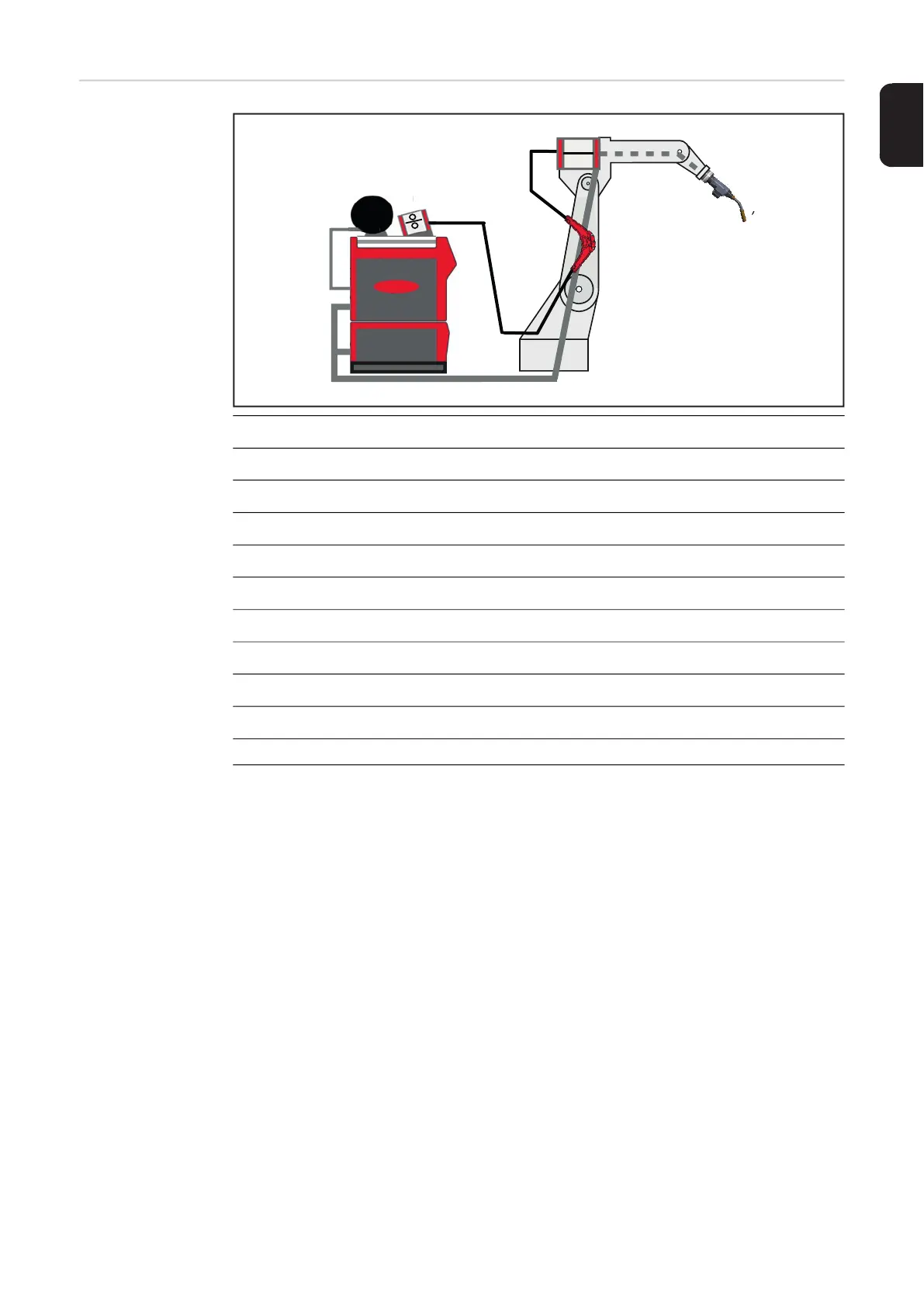

CMT with SB 500i,
4-roller unreeling
wirefeeder and
wirespool
(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) SplitBox SB 500i R
(9) MHP /i R welding torch hosepack
(10) WF 60i Robacta Drive CMT
(11) MTB /i R robot welding torch
Maximum wirefeed length:
- max. 4 m between drive unit and wire buffer
- max. 6 m between wire buffer and unreeling wirefeeder
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm aluminium, 0.8 - 1.4 mm steel
Welding process:
Standard, Pulse, LSC, PMC, CMT
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
(8)
(12)**
(9)
(10)*
(6)
(7)**
(2)
(1)
(11)
(7)*
(
(
(
2
)
(3)
(4)
(5)
