Fronius MIG/MAG - Installing the Crashbox;I Dummy on the Robot

90
6 7
8

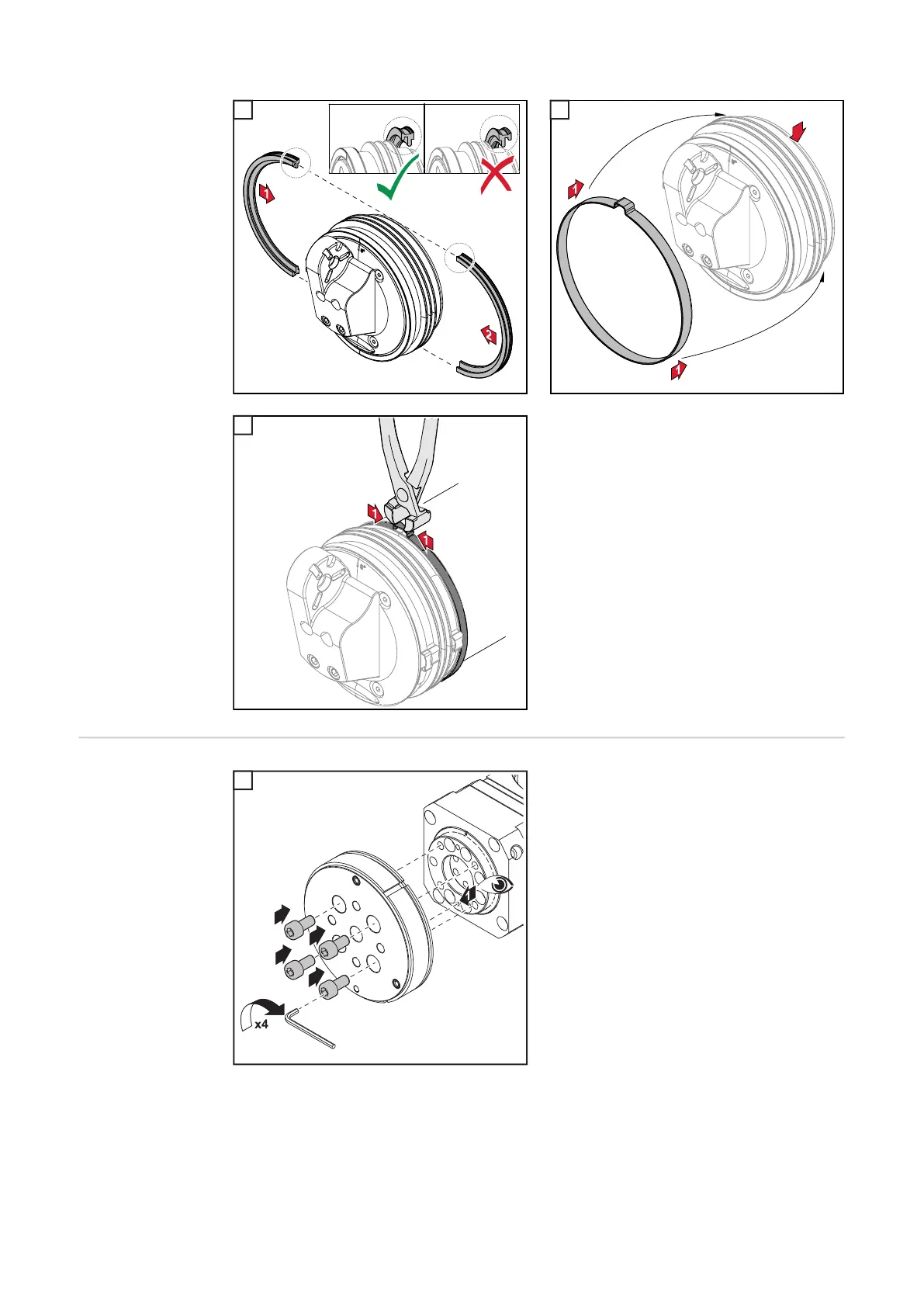

Installing the
CrashBox/i Dum-
my on the robot
1
Observe the torques when fitting the robot
flange:
Max. tightening torque for screws of
strength class 8.8
M4 3.3 Nm
M5 5.0 Nm
M6 6.0 Nm
M8 27.3 Nm
M10 54 Nm
M12 93 Nm
6
7
8
1
