Fronius Symo Service Manual

137
EN

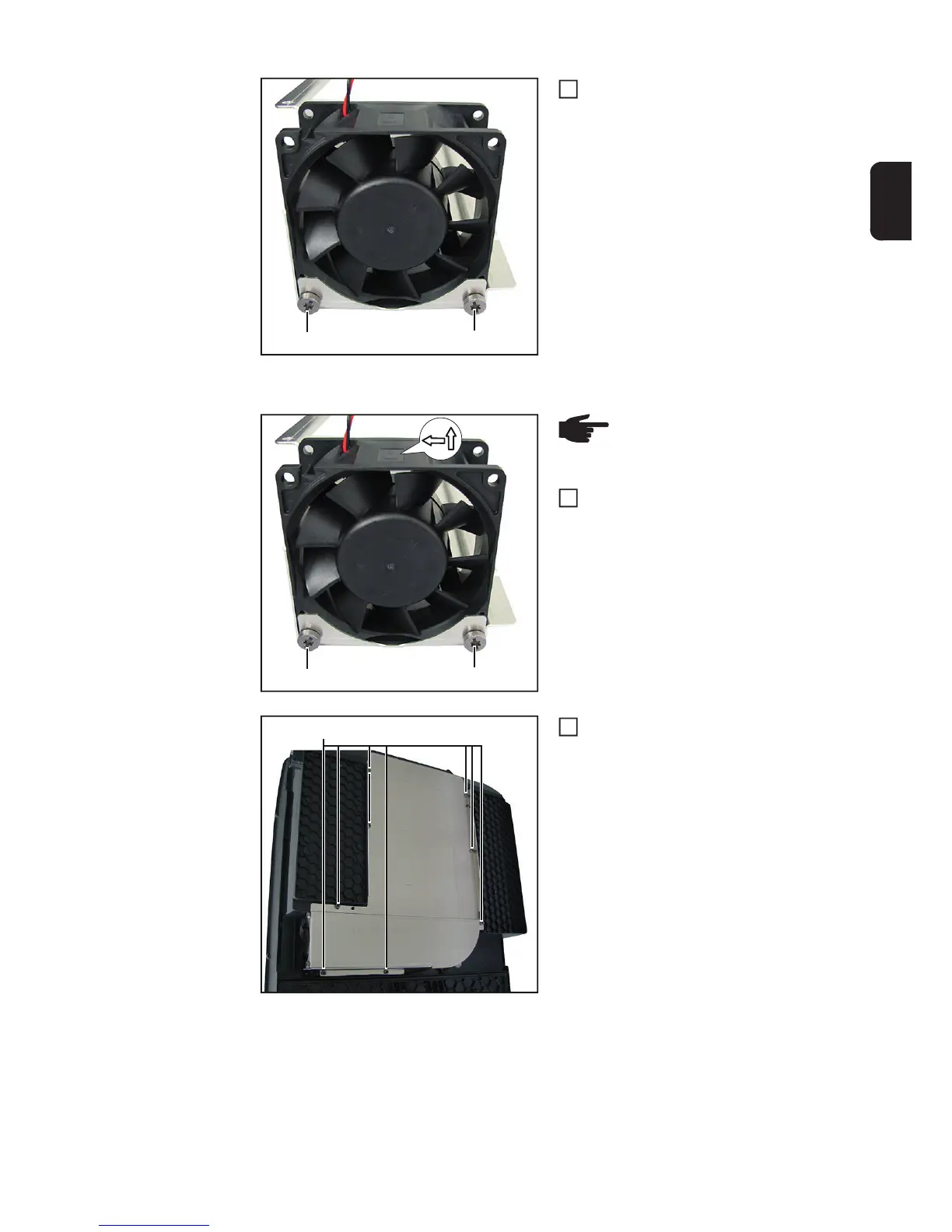

Undo the two 5x10 TX25 screws (5)
and remove the external fan
Inserting the external fan:
Fit the new external fan with two 5x10
TX25 screws (5)
[1.5 Nm]
Fit the air guide plate with eight 4x8
TX25 screws (4)
[1.5 Nm]
(5)
(5)
8
(5)
(5)
NOTE! Ensure the flow of air is
into the device!
1
(4)
2

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
