Fronius Symo Service Manual

138

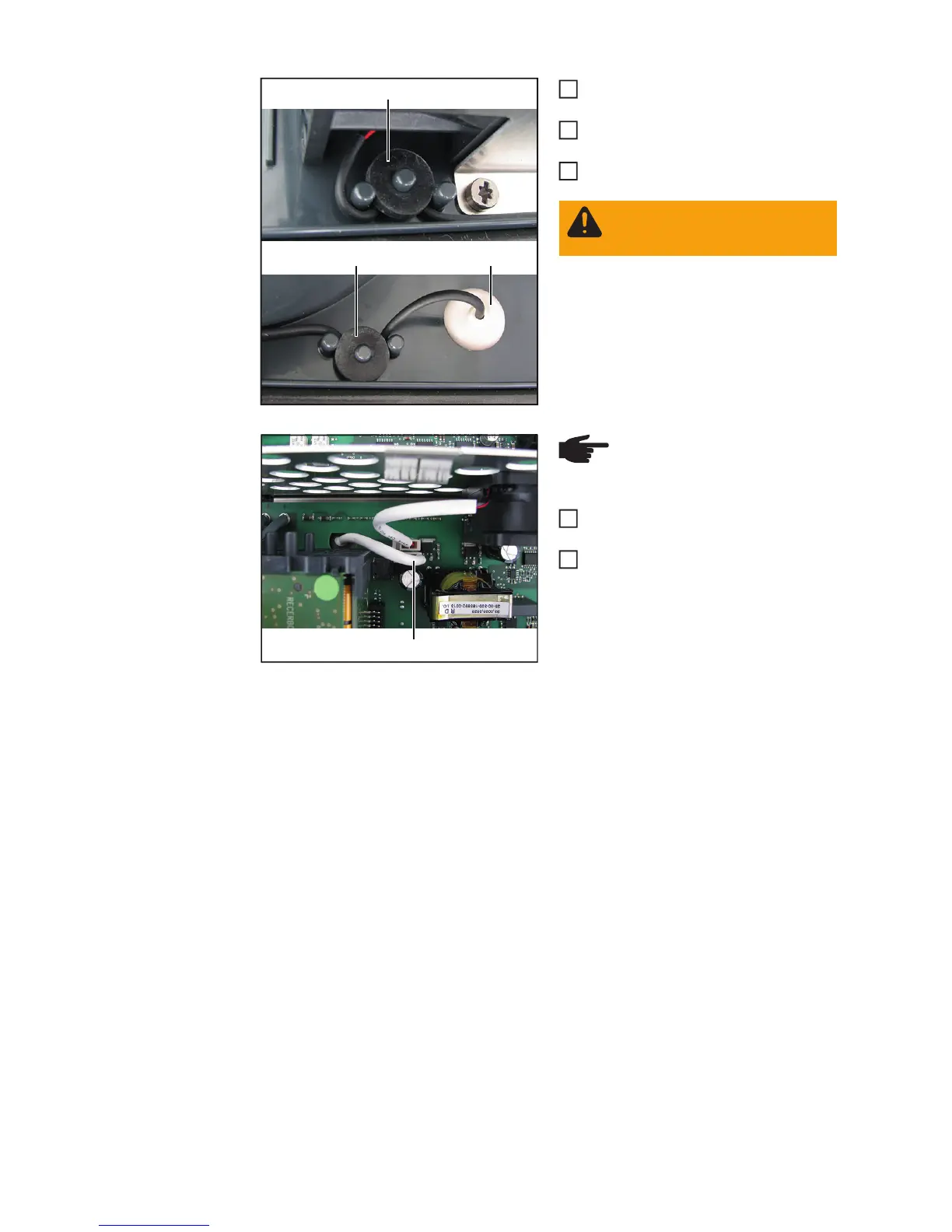

Thread in the fan cable, pushing in the
cable gland (3) as you do so
Feed the fan cable through both strain-
relief devices
Fit the two rubber seals (2)
Plug the fan cable (1) into the SymoFIL
/ EcoFIL
Close the inverter and place it in the
wall bracket (see "Opening and closing
the device")
Switch on the inverter and then carry out a
fan test via the display (see operating inst-
ructions)
(2)
(3)
(2)
WARNING! To ensure there are
no leaks, the cable gland must be
securely in place
3
4
5
(1)
NOTE! Carefully turn the inverter
round.
5
6

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
