Fronius Symo Service Manual

143
EN

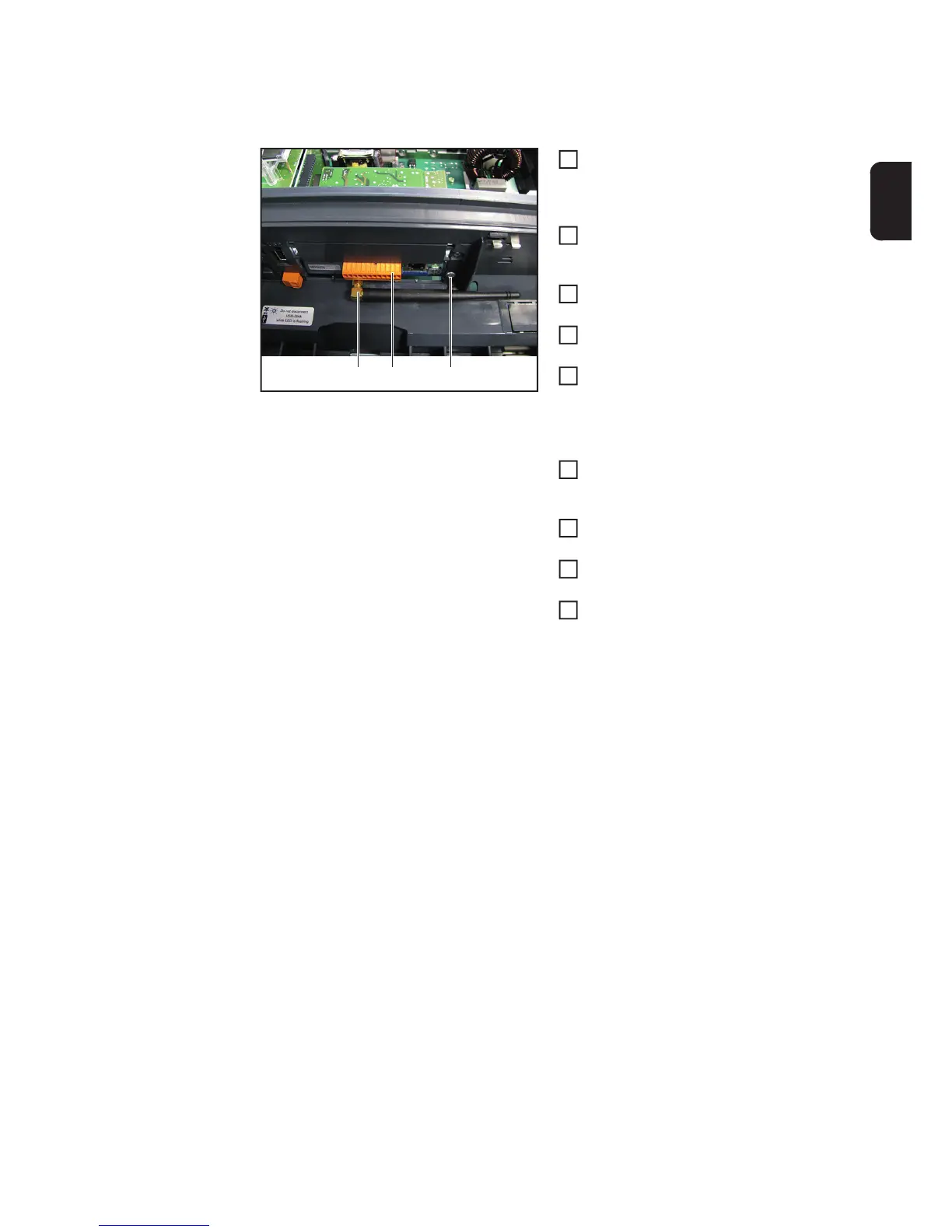

Inserting the Datamanager card:
Insert the new Datamanager card and
connect it to the Recerbo PC board
Datamanager Card:
Fit the Datamanager PC board with a
4x8 TX20 Taptite screw (3)
[1.2 Nm]
Use a flat spanner to fit the antenna (2)
[0.6 Nm]
Fit the 12-pin plug connector (1) to the
Datamanager PC board
Close the inverter and place it in the
wall bracket (see "Opening and closing
the device")
Datamanager Card 2:
Fit the Datamanager 2 PC board with a
4x9 TX20 Taptite screw (3)
[1.2 Nm]
Use a flat spanner to fit the antenna (2)
[0.6 Nm]
Fit the 16-pin plug connector (1) to the
Datamanager 2 PC board
Close the inverter and place it in the
wall bracket (see "Opening and closing
the device")
(1)(2) (3)
1
2
3
4
5
2
3
4
5

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
