Fronius Symo Service Manual

145
EN

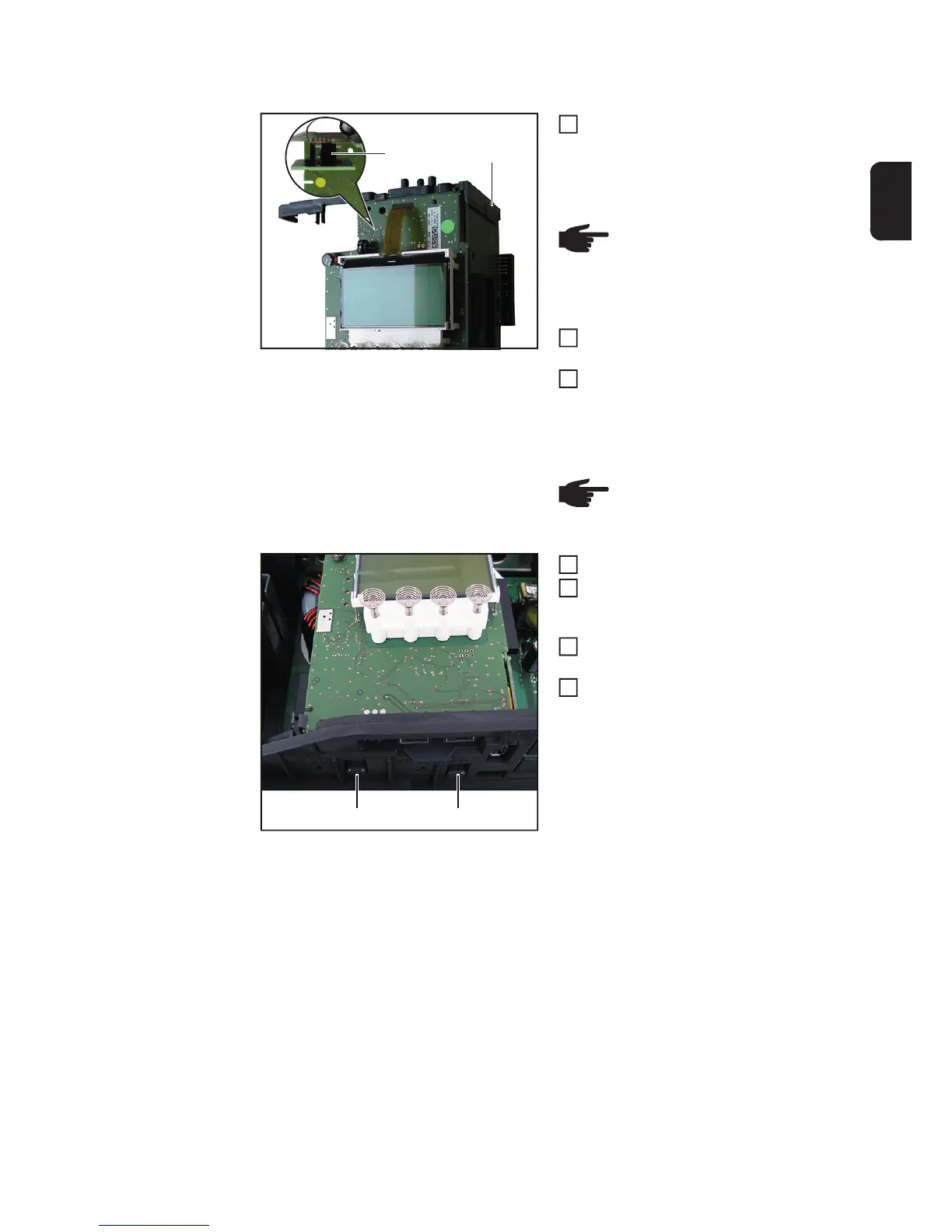

Inserting the Recerbo:
The device data unit of the new
Recerbo must also be broken off and
returned to Fronius with the faulty
Recerbo
Connect the broken off device data unit
(3) to the inside of the new Recerbo
Fit the Recerbo holder (2) to the new
Recerbo
- feed it in from above
- press downwards
Insert the new Recerbo module
The Recerbo holder locking devices
(1) must be fully engaged in the
housing shell
Reconnect all connections to the
Recerbo
Insert the Datamanager card, close the
inverter and place it in the wall bracket
(see "Replacing the Datamanager
card" and "Opening and closing the de-
vice" sections)
(3) (2)
NOTE! If you forget to connect the
device data unit or do not connect
it correctly, the inverter will show
status code 482 on the display
NOTE! All guide bolts and pins
must be properly engaged
1
2
3
(1)(1)
4
5
6
7

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
