INTERFACE INFORMATION
D-12 User's Manual
Cable
This printer supports the 10Base-T and 100Base-TX cables.

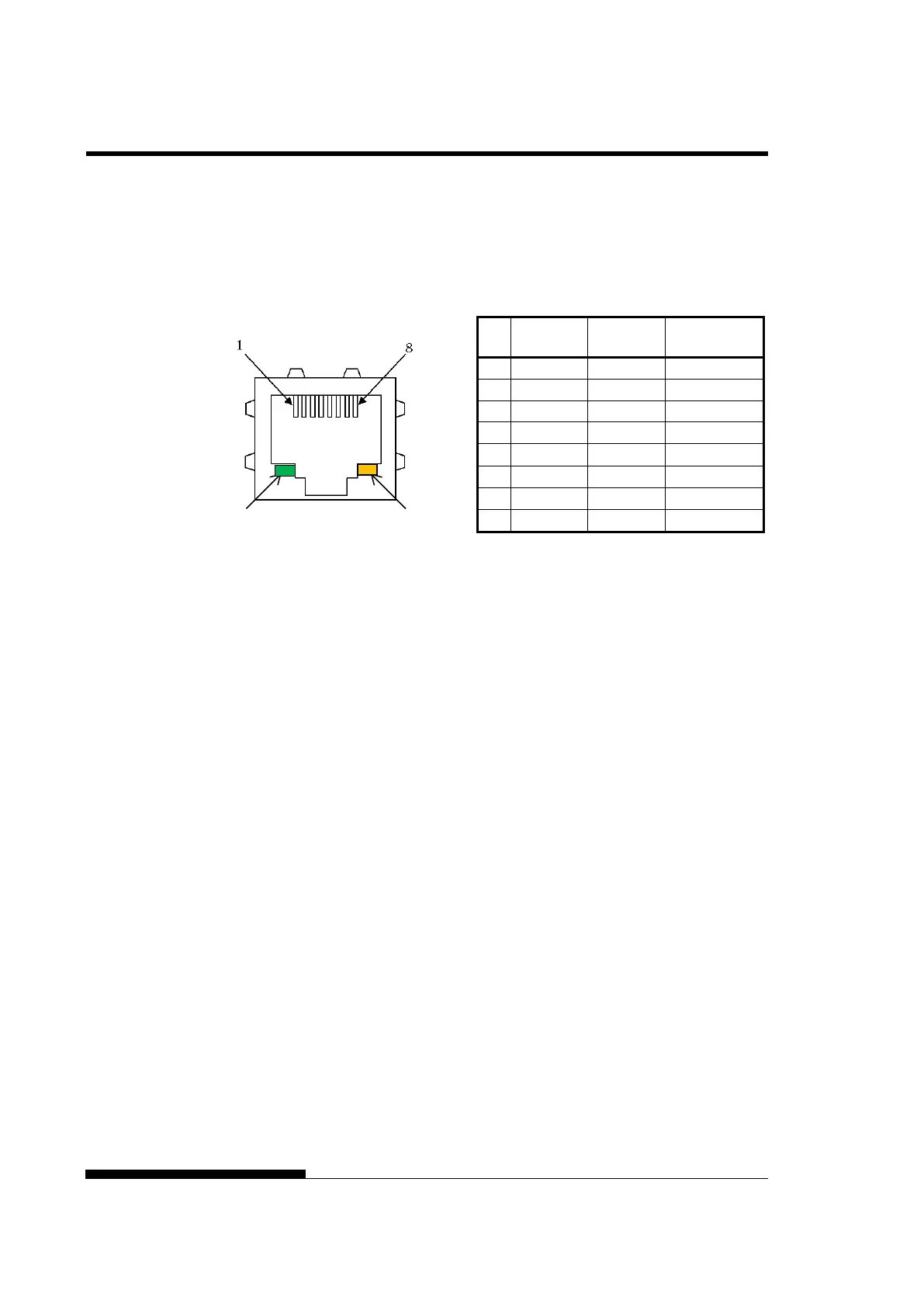

Connector pin alignment
No. Signal line
name
DIR Function
1 TXO+ NIC-HUB Transmit data +
2 TXO- NIC-HUB Transmit data -
3 RXI+ HUB-NIC Receive data +
4
− − −
5
− − −
6 RXI- HUB-NIC Receive data -
7
− − −
8
− − −
Green LED: 100Mbps
Amber LED: Link/Act
Specification
- Ethernet specifications
Standard: IEEE802.3 10BASE-T,
IEEE802.3u 100BASE-TX
Speed: 100Mbps/10Mbps
Auto negotiation
Duplex: Full/Half
Auto negotiation
MDI/MID-X: Auto negotiation
- Internet protocol specifications
Link layer: ARP
Internet layer: IPv4, ICMPv4
Transport layer: TCP, UDP
Application layer: #9100 RAW, LPD, FTP,
HTTP, SNMP, DHCP
Note
It does not guarantee all operations on hosts.
LAN INTERFACE
Green LED
Amber LED
