74 Operating Manual RX200 S3
Hot-pluggable hard disk drives Hot plug components
Unlocking the 3.5 inch HDD module

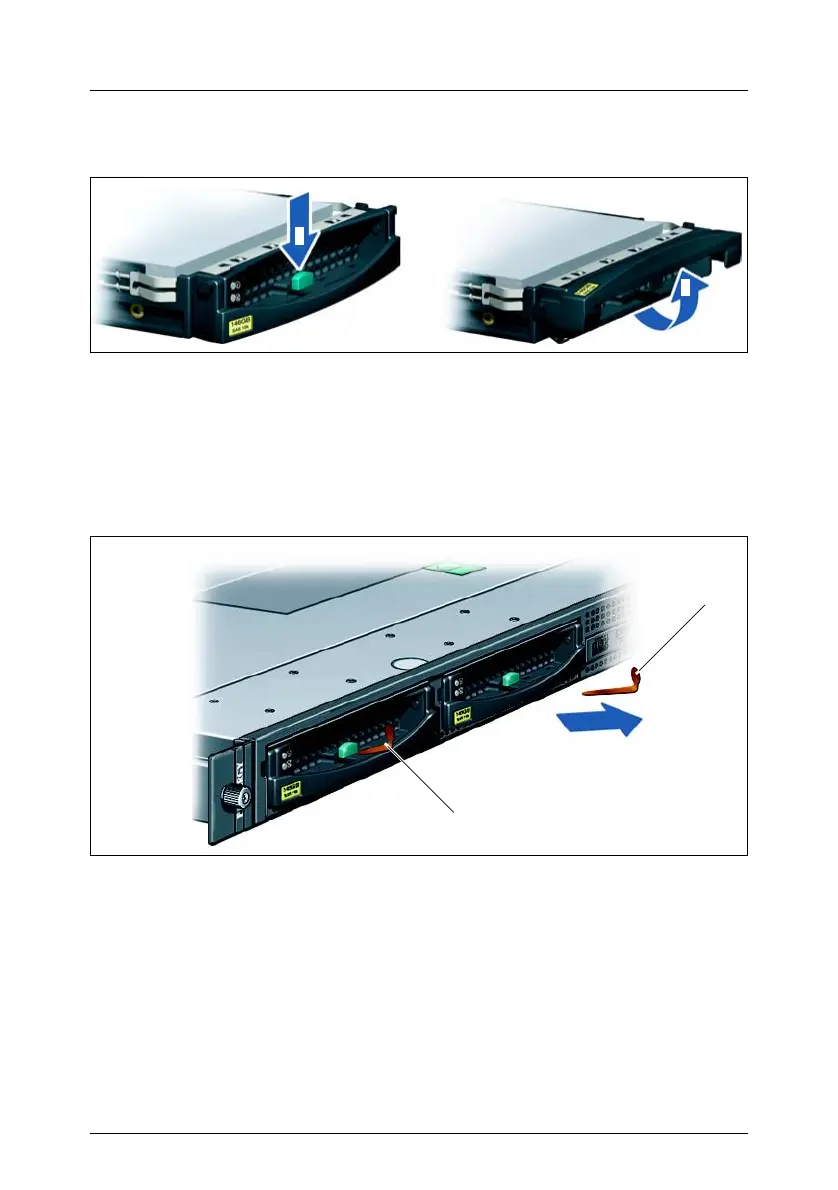

Figure 19: Unlocking an HDD module
Ê Open the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow (2).
I If the HDD modules are provided with a transport lock (1 in the next
figure) remove these before you open the locking mechanism.
Figure 20: Remove the transport lock from the HDD module
2
1
1
1
