RX200 S3 Operating Manual 75
Hot plug components Hot-pluggable hard disk drives
Installing the 3.5 inch HDD module

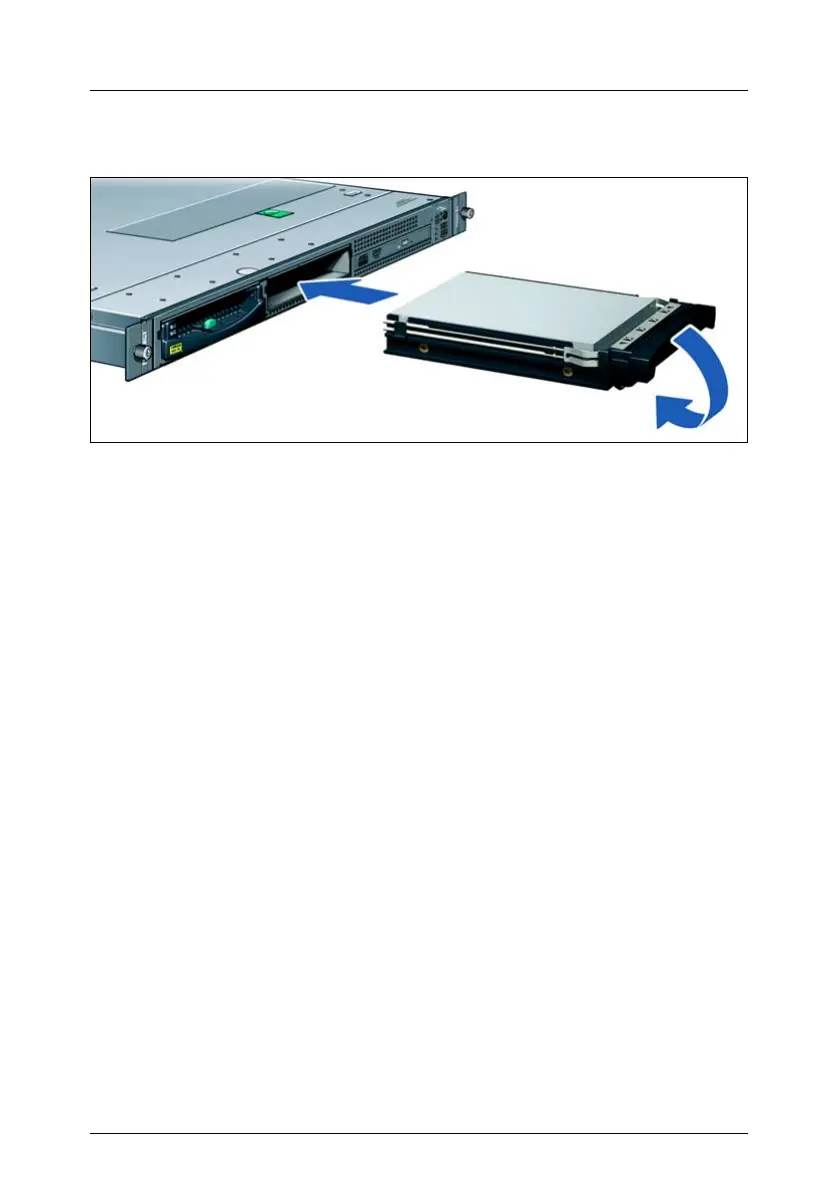

Figure 21: Install the 3.5 inch HDD module
Ê Unlock the HDD module as described in section “Unlocking the 3.5 inch
HDD module” on page 74.
Ê Carefully push the HDD module into the empty slot (1) until it stops.
Ê Push the handle completely in the direction of the arrow (2) until the locking
mechanism engages.
To remove the server, follow this procedure in reverse.
1
2
