Hot-pluggable hard disk drives Hot plug components
Unlocking and installing the 2.5 inch HDD module

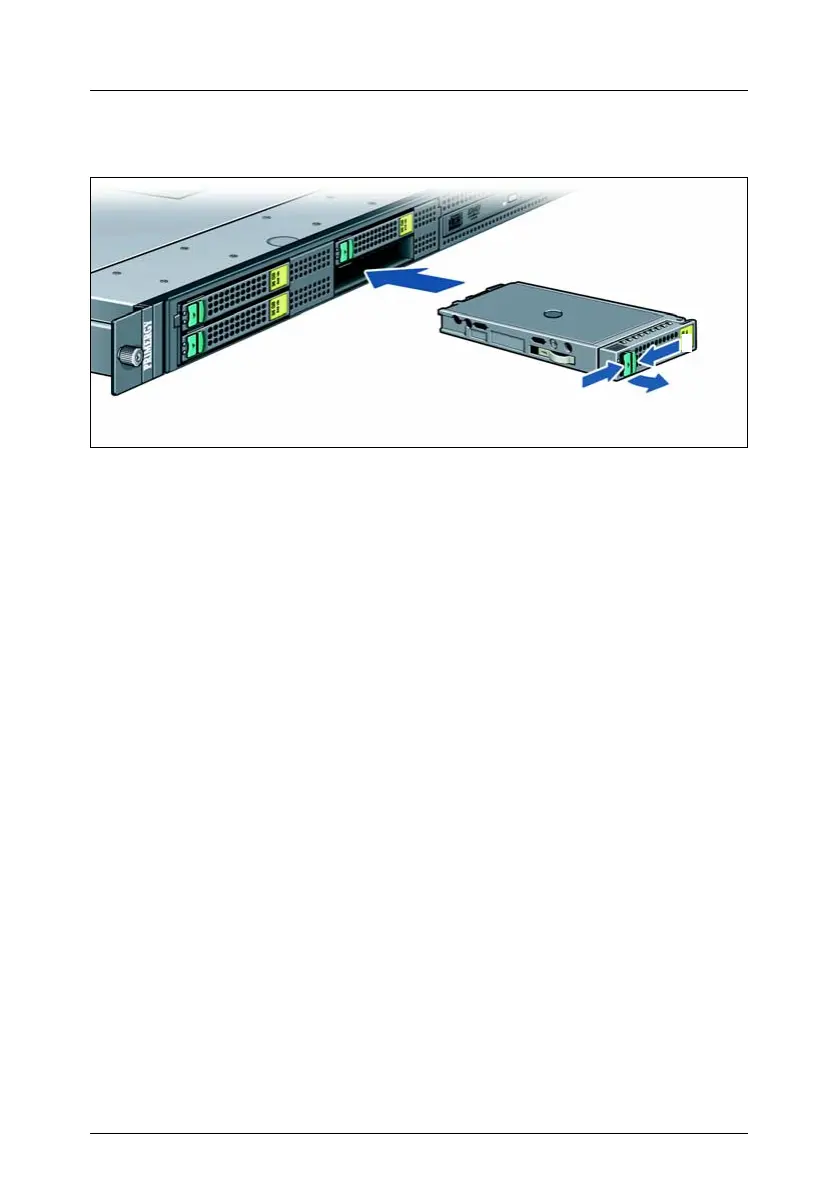

Figure 22: Unlocking and installing the 2.5 inch HDD module
Ê Release the locking mechanism by pressing the lock together (1).
Ê Push the clip of the HDD module fully in the direction of the arrow (2).
Ê With the clip open, carefully slide the HDD module as far as possible into the
free slot (3).
Ê Close the clip on the HDD module until the locking mechanism is engaged.
To remove the server, follow this procedure in reverse.
