PRIMERGY RX300 S2 User’s Guide
Installing Internal Options
7

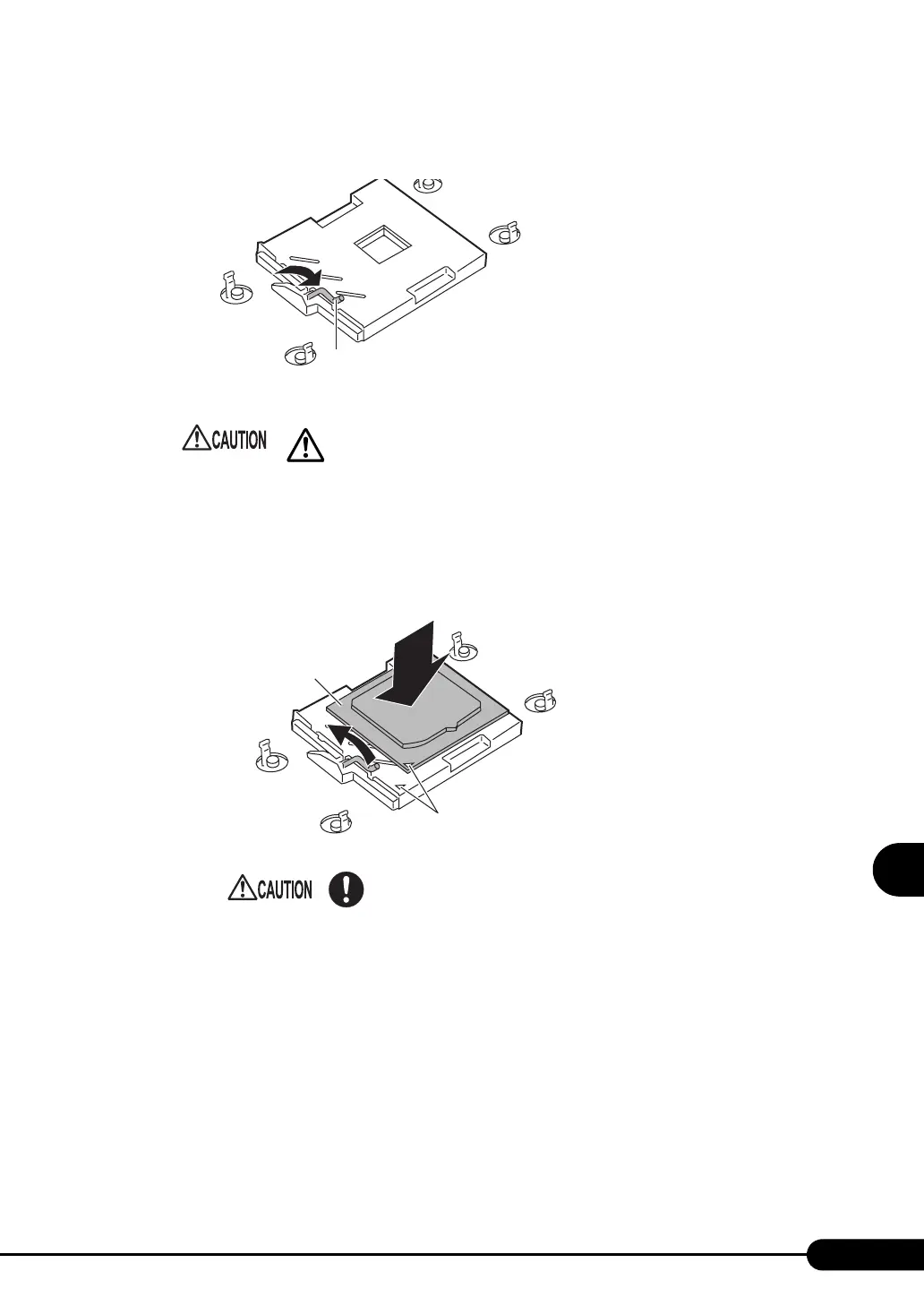

5 Release the socket lever.
Slide the socket lever to the side and lift it slowly to release it.
6 Install the CPU.
1. Align the pin 1 marking (small triangle) on the CPU socket with the triangle on the
CPU, and insert the pins into the socket.
2. Return the socket lever to fasten the CPU.
• The socket lever turns approx 135 degrees.
Be sure to open the socket lever fully to release it.
If the socket lever is not fully open during installation, the CPU may be
damaged.
• When installing the CPU in the socket, be careful not to bend the CPU
pins.
Socket lever
1
2
Pin 1 marking
CPU
