Installing a hard disks extension box Accessible drives
Variant 1

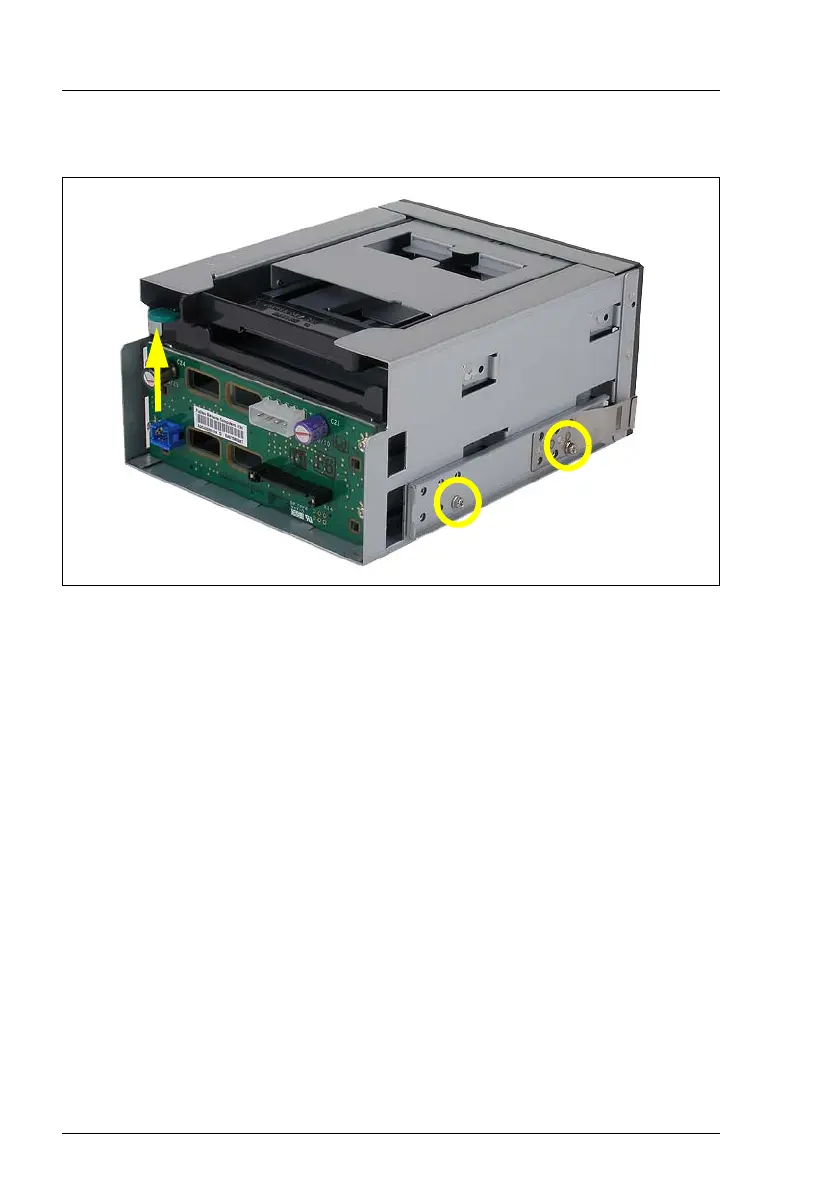

Figure 24: Variant 1 - Attaching the EasyClick rails
Ê Screw the EasyClick rails onto either side of the hard disks extension box
using two M3 screws for each rail. Use the holes marked above (see the
circles) for this purpose.
Install possibly a slimline DVD drive:
Ê Release the DVD dummy by pressing the touch point upward (see arrow in
figure 24).
Ê Push the DVD dummy out of the bay in direction of the front side.
