TX150 S6 Options Guide 41
Accessible drives Installing a hard disks extension box

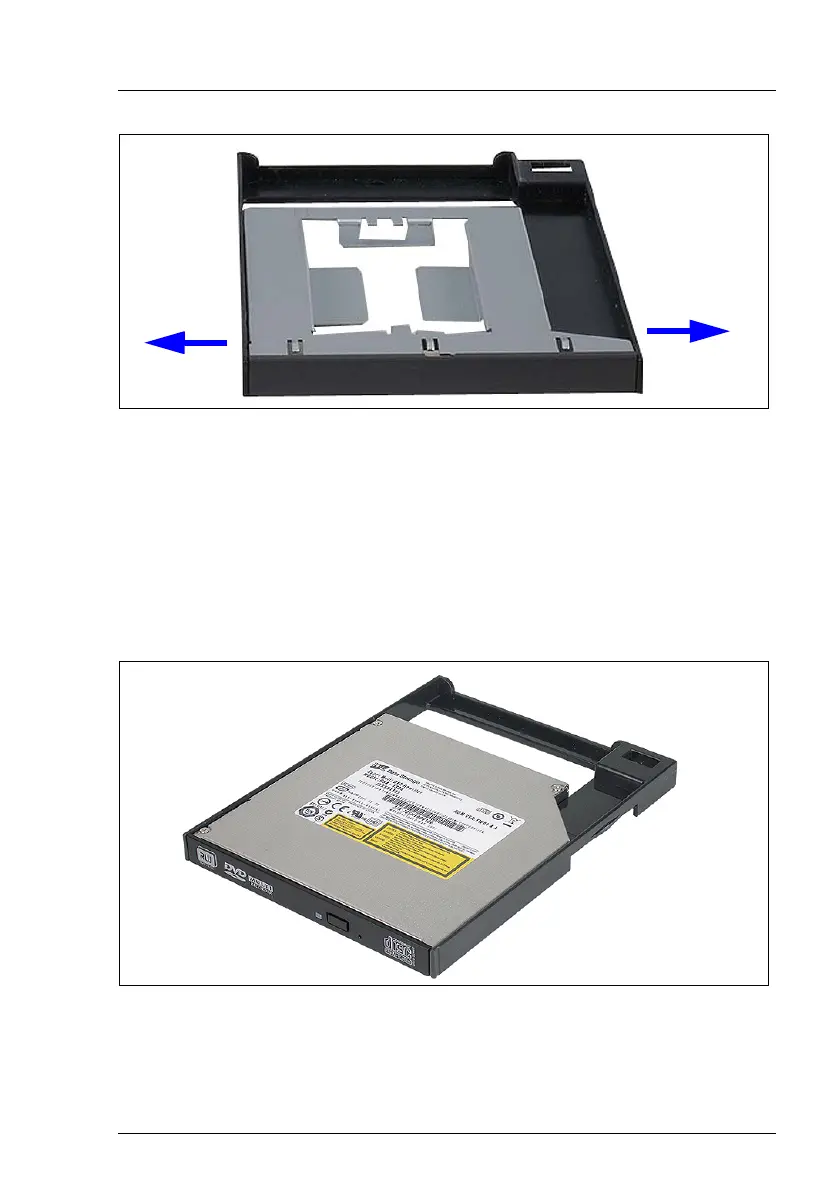

Figure 25: Taking out the dummy
Ê Take the dummy out of the frame by extracting sideward the frame until the
four noses of the frame disengage.
V CAUTION!
Keep the dummy for future use. If you remove the slimline drive again
and do not replace it with a new one, the dummy must be reinstalled
to comply with EMC regulations and to satisfy cooling requirements
and fire protection measures.
Figure 26: Inserting the slimline DVD in the frame
Ê Insert the slimline DVD drive in the frame. The four noses will fasten the
frame.
