Accessible drives Installing a hard disks extension box

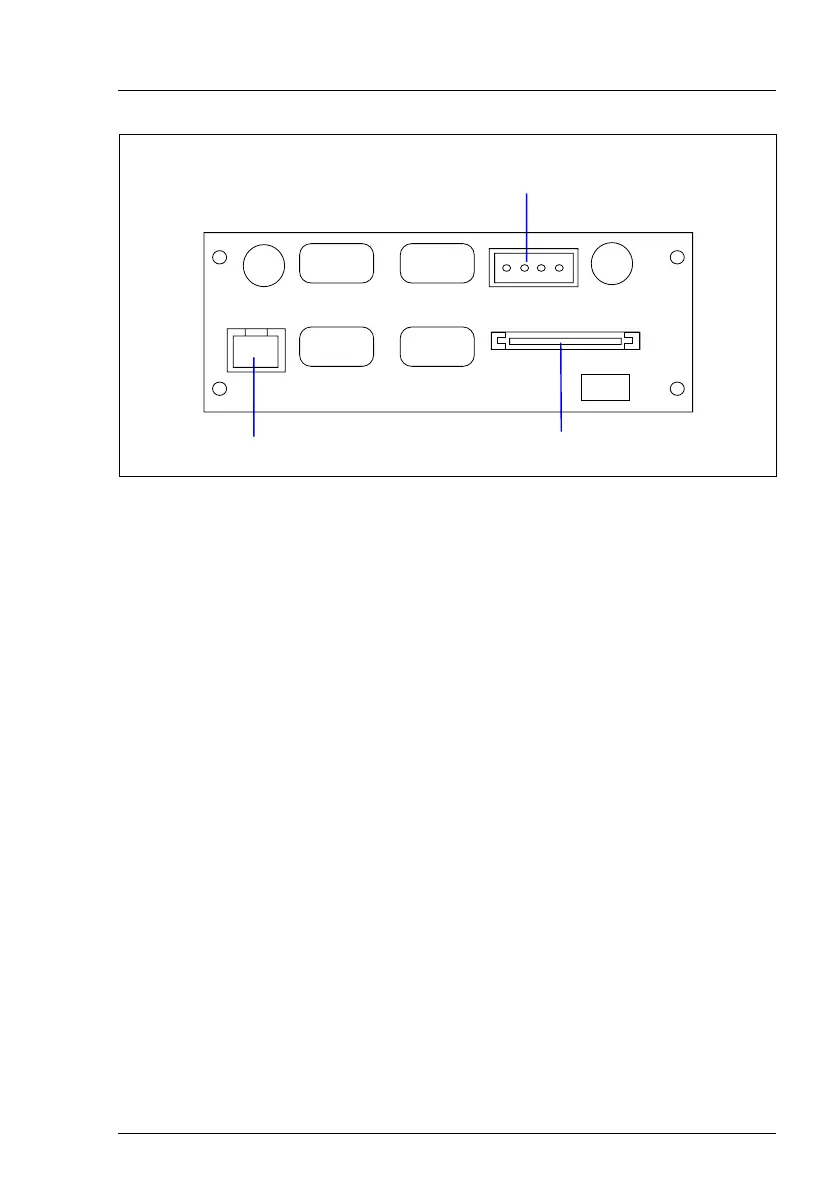

Figure 28: Variant 1 - Connectors of the HDD backplane
Ê Connect the power cable plug P2 to the power connector of the HDD
backplane on the rear side of the hard disks extension box.
Ê Connect the SAS cable included in the conversion kit to the SAS connector
on the HDD backplane.
Ê Connect the I
2
C cable with the I
2
C bus connector on the HDD backplane
(see the cabling plans in the Appendix).
Ê Secure the I
2
C cable with a green clamp.
Ê Route the SAS cable and connect it to the connector of an additional SATA
RAID controller (see the cabling plans in the Appendix).
Ê Install the 3.5“ hard disks (description see the Operating Manual).
Ê Possibly install a ServerView Local Service Panel (description see chapter
“ServerView Local Service Panel” on page 49).
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 85 et seq..
