Installing a hard disks extension box Accessible drives
Variant 2

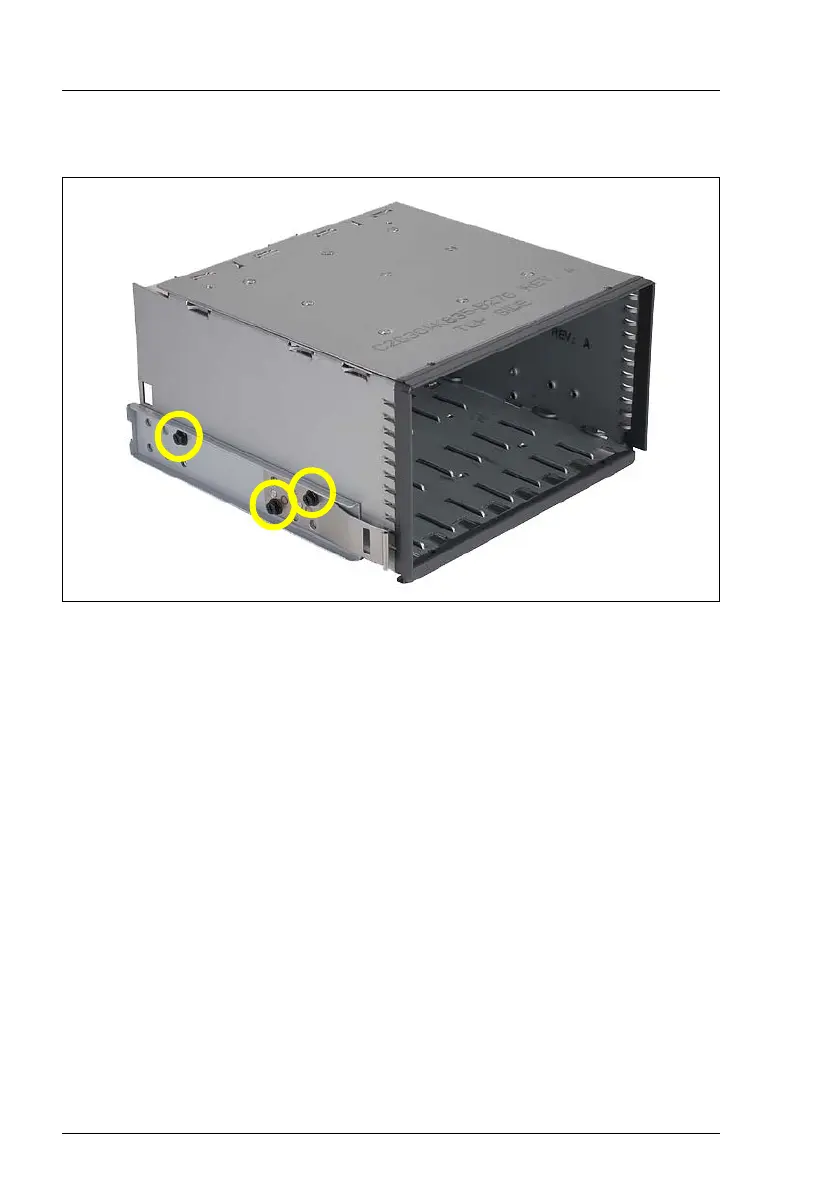

Figure 29: Variant 2 - Attaching the EasyClick rails
Ê Screw the EasyClick rails onto either side of the hard disks extension box
using three M3 screws for each rail. Use the holes marked above for this
purpose.
Ê Push the hard disks extension box fully into the bay until the EasyClick rails
lock in place.
