Assembly Stage 1: Locate & Remove Zip Ties
To secure the machine during shipping, yellow zip ties are used to hold the laser head assembly and the
x-gantry. These zip ties must be removed before operating your laser cutter for the rst time.
1. Locate Yellow Zip Ties: Yellow zip ties secures the laser head and x-gantry during shipping.
Open the lid and identify all yellow zip ties.
2. Cut and Remove Yellow Zip Ties: Using a small pair of scissors (nail cutters work remarkably
well), carefully cut and remove ALL yellow zip ties. DO NOT cut any other cord or wire. Be aware that the
glass laser tube is extremely fragile. Be careful NOT to damage any part of the machine during this process.

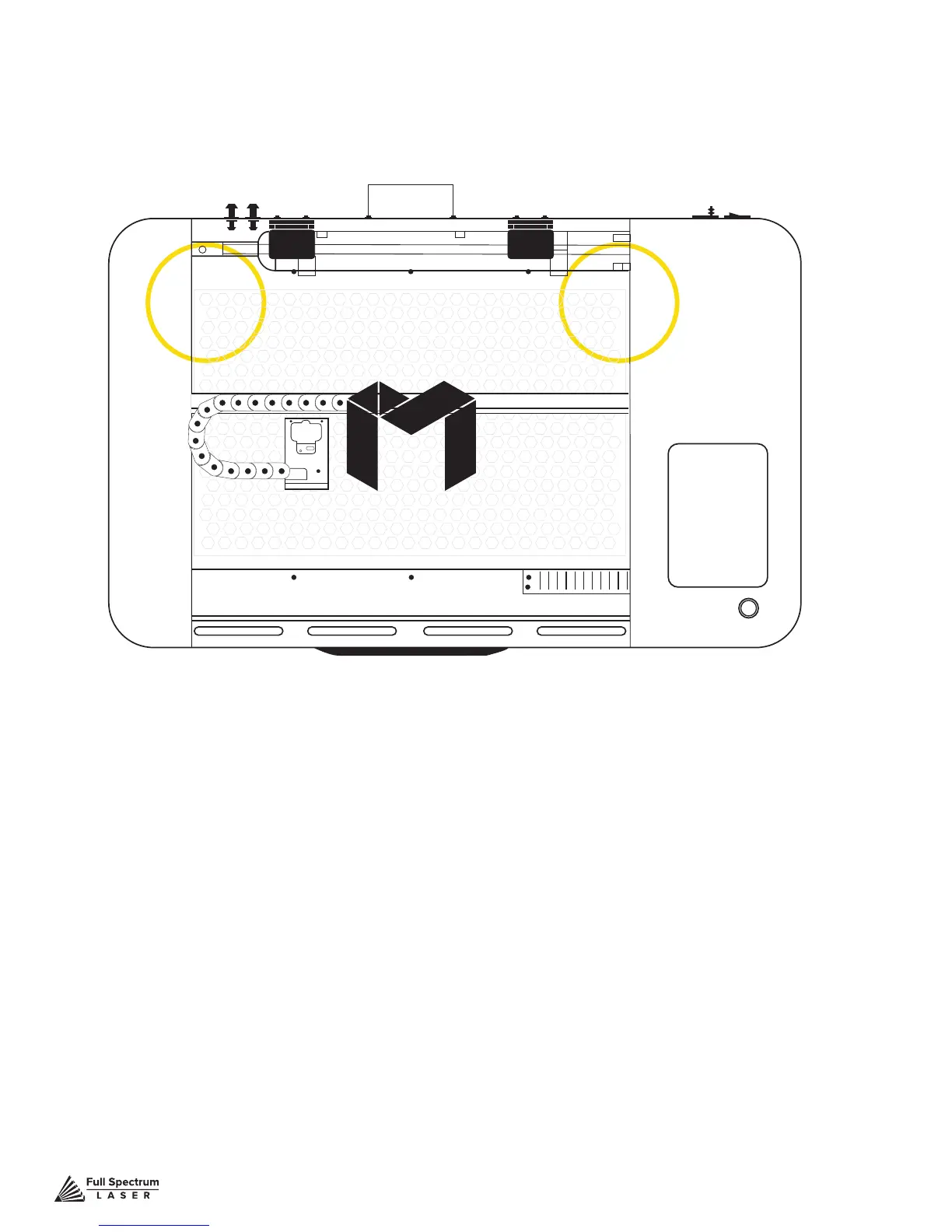

Figure 3.2
