Full Spectrum Laser Muse - Alignment and Focusing

Technical Support is available from 8am to 5pm (PST) M - F at support@fslaser.com.
28
Alignment Test
The laser tube that came pre-installed in your Muse was carefully aligned in our facilities in Nevada.
When you rst turn on your machine, the mirror alignment should be perfect. It is possible, however,
that sometimes mirrors may come out alignment during shipping. Before running your rst job, you will
want to check and make sure the mirrors are properly aligned using this simple test. Once the mirror
alignment is conrmed, you are ready to use your laser cutter. If your mirrors are out of alignment, or
if you have installed a new laser tube, you must align the laser using the procedure provided. For this

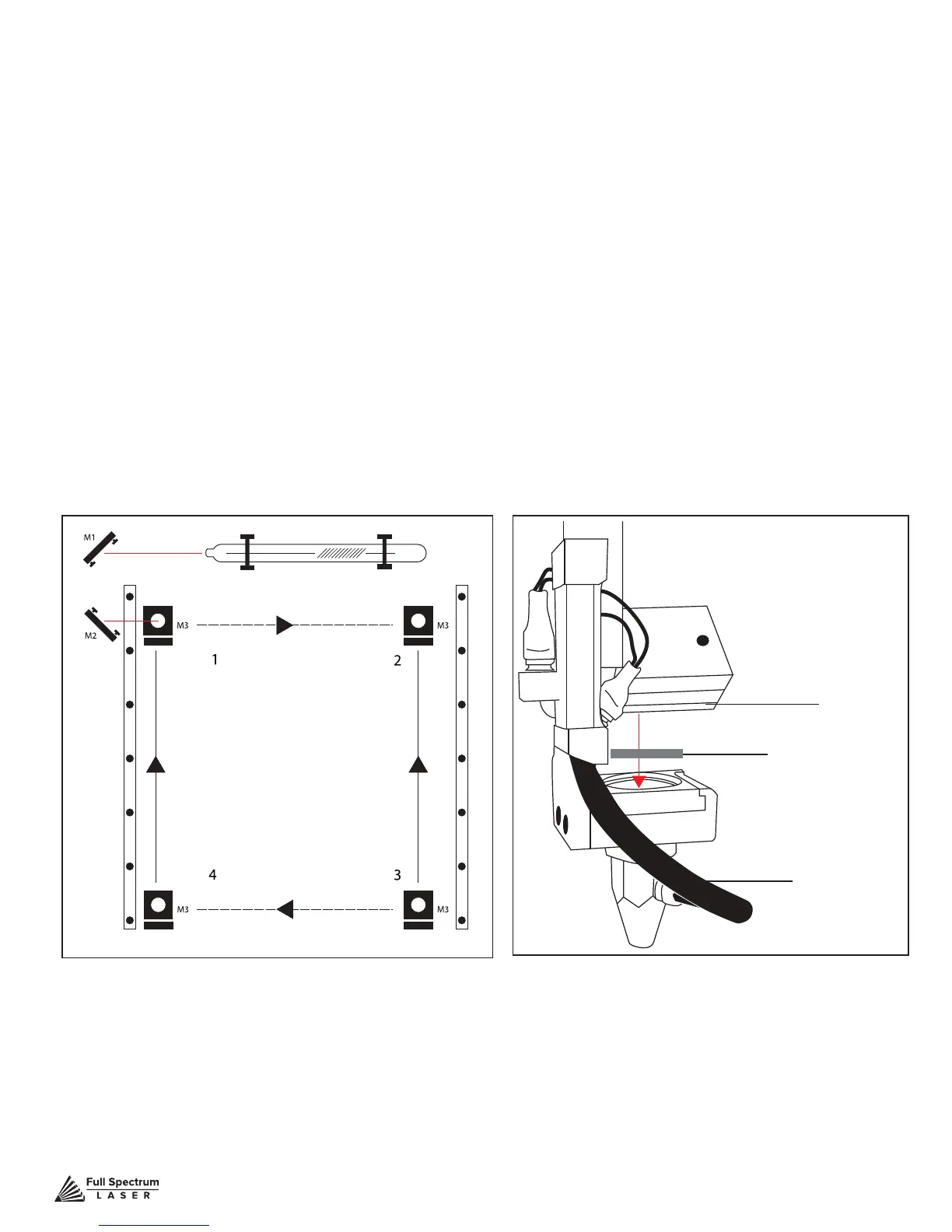

alignment test we will test re the laser once in each corner of the machine to make sure the laser is
following the right path to the focus head, and ultimately to the cutting material.
1. Open the Safety Lid: You will need to access the interior of the machine.
2. Place Thermal Paper: Take a small piece of thermal paper (approx. 15 mm should be plenty)
and place it over the focus lens under Mirror #3.
3. Position Laser Head: Move the laser head into the upper left corner of the workspace.
Test Fire
Test Fire
Test Fire
Test Fire
Figure 4.1 Figure 4.2
Mirror #3
Focus Lens
Thermal Paper
