18
Assembly Stage 3: Assemble the Water System

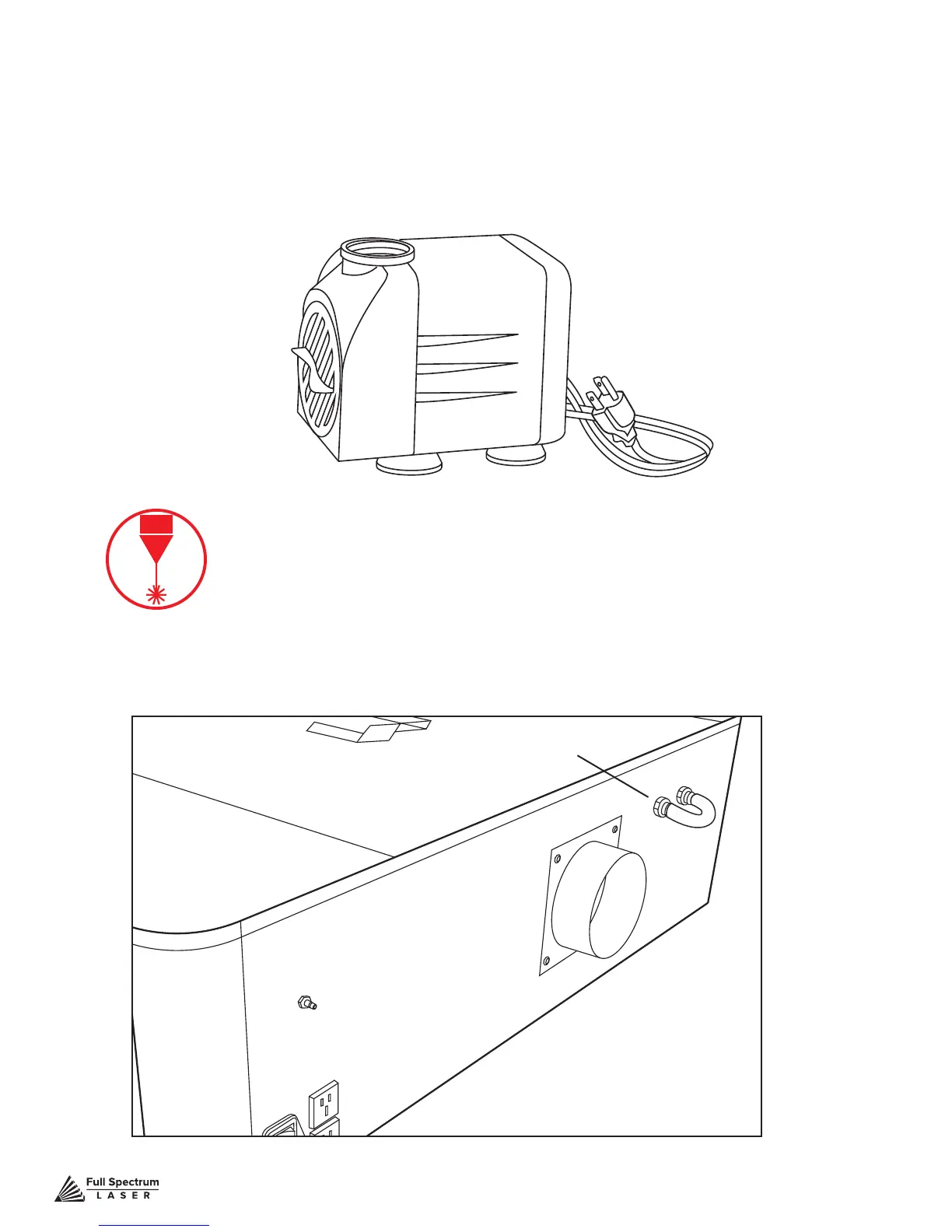

Muse uses a water-cooled continuous beam CO2 laser tube. The tube requires a ow of room
temperature water to regulate the temperature of the laser tube. Your purchase includes
a water pump for cooling the laser tube. For Coolbox users, skip this step and refer to Appendix A:
Coolbox Assembly. Coolbox users will not need a bucket.
Never Fire the Laser: Without a correctly connected and
powered water pump. Firing the laser without turning the pump
on or, worse, with no water in the system,will severely degrade
or destroy your laser tube and void your warranty.
1. Remove Capping On Water Inlet /Outlet: Remove the short silicone tubing, capping
the water inlet and outlet on the back of the machine.
Tubing Capping
Figure 3.6
To Next Page
