7. Reposition the X-Gantry to “Close” Position: Now that we have a burn mark on our
thermal paper from a “far” ring of the laser, we want to re the laser from the closest position. Move
the X-Gantry to the upper most position in the machine and test re again.
8. Re-Position X-Gantry back to “Far”: Jog or manually position the X-Gantry to the far
position where you did the rst test re. (as shown in Figure 4.7).
9. Check Results: There should be two observable burn marks on the thermal paper. If they overlap
perfectly you can move on to the next mirror. If they are apart, adjust the three 2.5mm hex screws on
Mirror #1 (not the red beam diode) to move the second burn mark over the red beam.
10. Repeat Until Aligned: Check your results by repeating this process until the two burn marks
are both center and perfectly overlapping each other. Once aligned, you will repeat this procedure on
the next mirror.

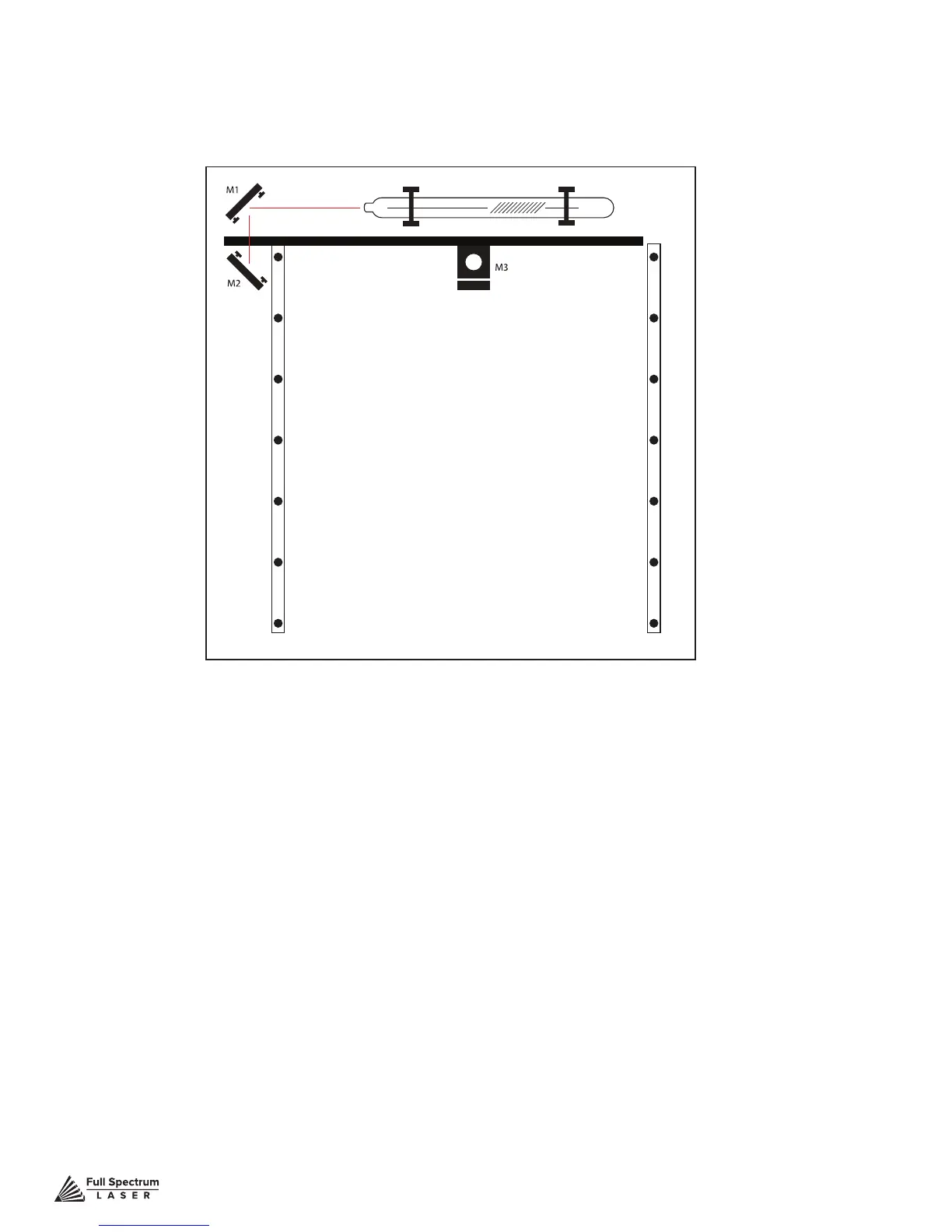

Figure 4.9
