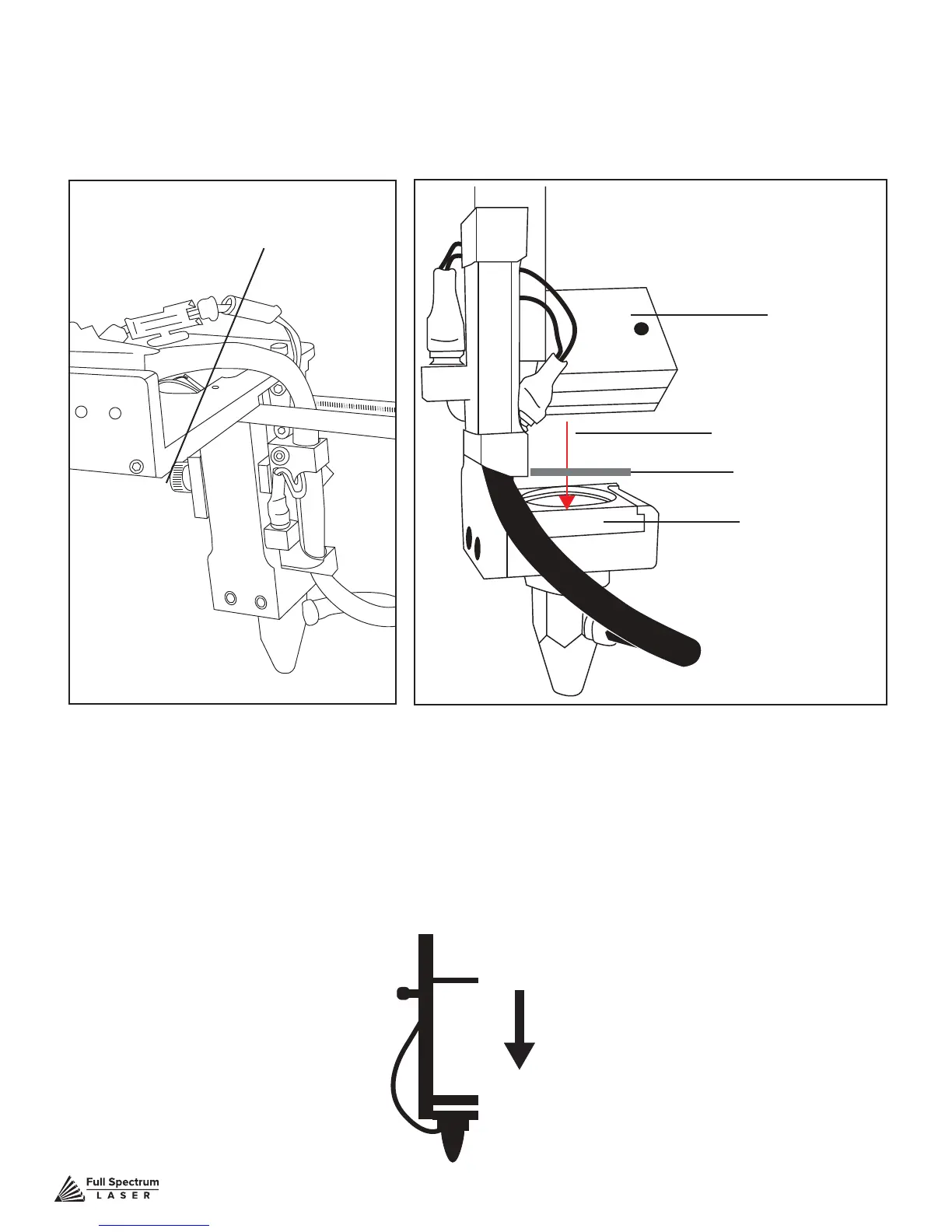

1. Open Safety Lid: You will need to access the interior of the machine.
2. Place Thermal Paper: Put a piece of thermal paper on top of the focus lens. It is best to use a
slightly smaller piece of thermal tape to fully see the outline of the lens.
3. Position Focus Lens “Far”: Use the thumb screw to loosen and position the focus lens as
far down as it will go.
Mirror #3
Laser Path
Thumb Screw
Focus Lens
Figure 4.12 Figure 4.13
Figure 4.14
Technical Support is available from 8am to 5pm (PST) M - F at support@fslaser.com.
37
Stage 5 Focus Lens Alignment
The focal lens is located at the bottom of the laser head assembly. For proper alignment, the laser
beam should always be hitting the center of the focal lens, regardless of the position of the cutting
head in the machine.
Thermal Paper
