INSTALLATION VTG-IOM-2016-1214 SECTION 2
2-6
3. Ensure all labels on the boiler will be fully visible for
maintenance and inspection.
4. Do not place any boiler room accessories, or other
components, on the Vantage skid.
Install Boiler Trim
Each Vantage boiler is supplied with a safety relief valve
sized in accordance with ASME requirements. Adhere to the
following installation requirements:
1. The safety relief valve (Figure 2) must:
» Be connected to the coupling located in the
top of the boiler.
» Be installed in the upright vertical position.
NOTE: Safety relief valve size is determined by trim pressure
and is supplied in the trim kit along with appropriate bushing.
For inlet and outlet sizes, see Table 2.
2. The discharge pipe must:
» Not have a diameter less than the full area of
the valve outlet.
» Be as short and straight as possible and so
arranged as to avoid undue stress on the valve.
» Be supported by means other than the safety
valve itself.
» Be piped to avoid danger of scalding
personnel.
NOTE: Each boiler is equipped with a pressure-temperature
gauge to be installed in the outlet piping section of the boiler.
Gauge must not be isolated from the boiler by any valve.
TABLE 2  SAFETY RELIEF VALVE INLET AND OUTLET SIZES
Model Trim Pressure
PSI (kPa)
Inlet Size
inch (mm)
Outlet Size
inch (mm)
VTG-2000
(DF)
30 (206.84) 1 1/4 (31.75) 1 1/2 (38.1)
60 (413.69) 1 (25.4) 1 1/4 (31.75)
100 (689.48) 3/4 (19.05) 1 (25.4)
125 (861.84) 3/4 (19.05) 1 (25.4)
160 (1103.16) 3/4 (19.05) 1 (25.4)
VTG-3000
(DF, LE)
30 (206.84) 1 1/2 (38.1) 2 (50.8)
60 (413.69) 1 1/4 (31.75) 1 1/2 (38.1)
100 (689.48) 1 (25.4) 1 1/4 (31.75)
125 (861.84) 1 (25.4) 1 1/4 (31.75)
160 (1103.16) 3/4 (19.05) 1 (25.4)
VTG-4000,
5000
(DF, LE)
30 (206.84) 2 (50.8) 2 1/2 (63.5)
60 (413.69) 1 1/2 (38.1) 2 (50.8)
100 (689.48) 1 1/4 (31.75) 1 1/2 (38.1)
125 (861.84) 1 (25.4) 1 1/4 (31.75)
160 (1103.16) 1 (25.4) 1 1/4 (31.75)
VTG-6000
(DF)
30 (206.84) 1 1/2 (38.1)
1 1/4 (31.75)
2 (50.8)
1 1/2 (38.1)
60 (413.69) 1 1/2 (38.1) 2 (50.8)
100 (689.48) 1 1/4 (31.75) 1 1/2 (38.1)
125 (861.84) 1 1/4 (31.75) 1 1/2 (38.1)
160 (1103.16) 1 (25.4) 1 1/4 (31.75)

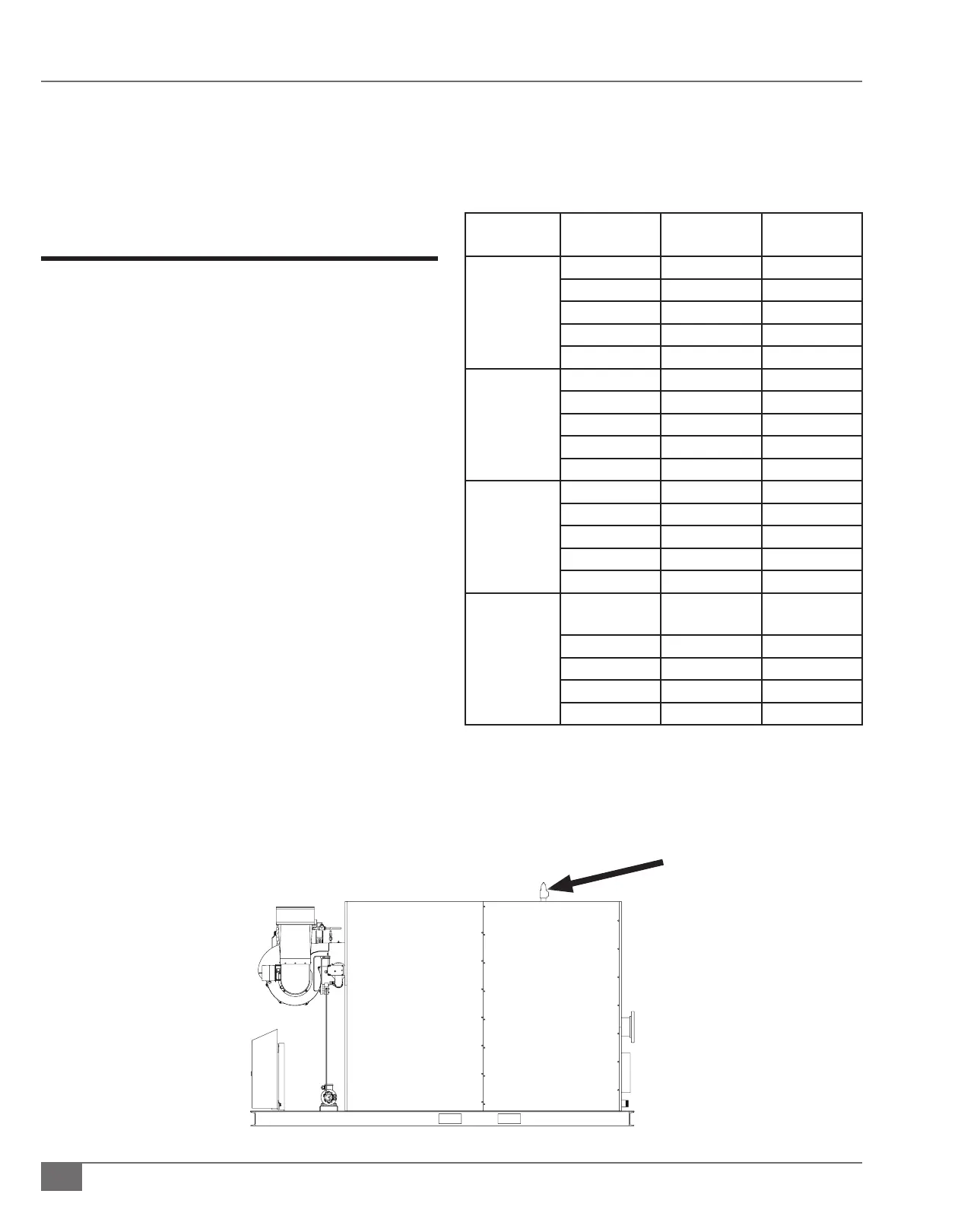

FIGURE 2  SAFETY VALVE LOCATION
Note: Valve is shipped
loose and must be
installed by the con -
tractor.
