Burner Fuel Oil Train Piping Detail
The Vantage DF boiler includes a factory mounted and tested fuel oil train.
Do not modify the fuel oil train. Connections and ttings may loosen during
shipment and rigging; verify connections prior to operating the oil burner.

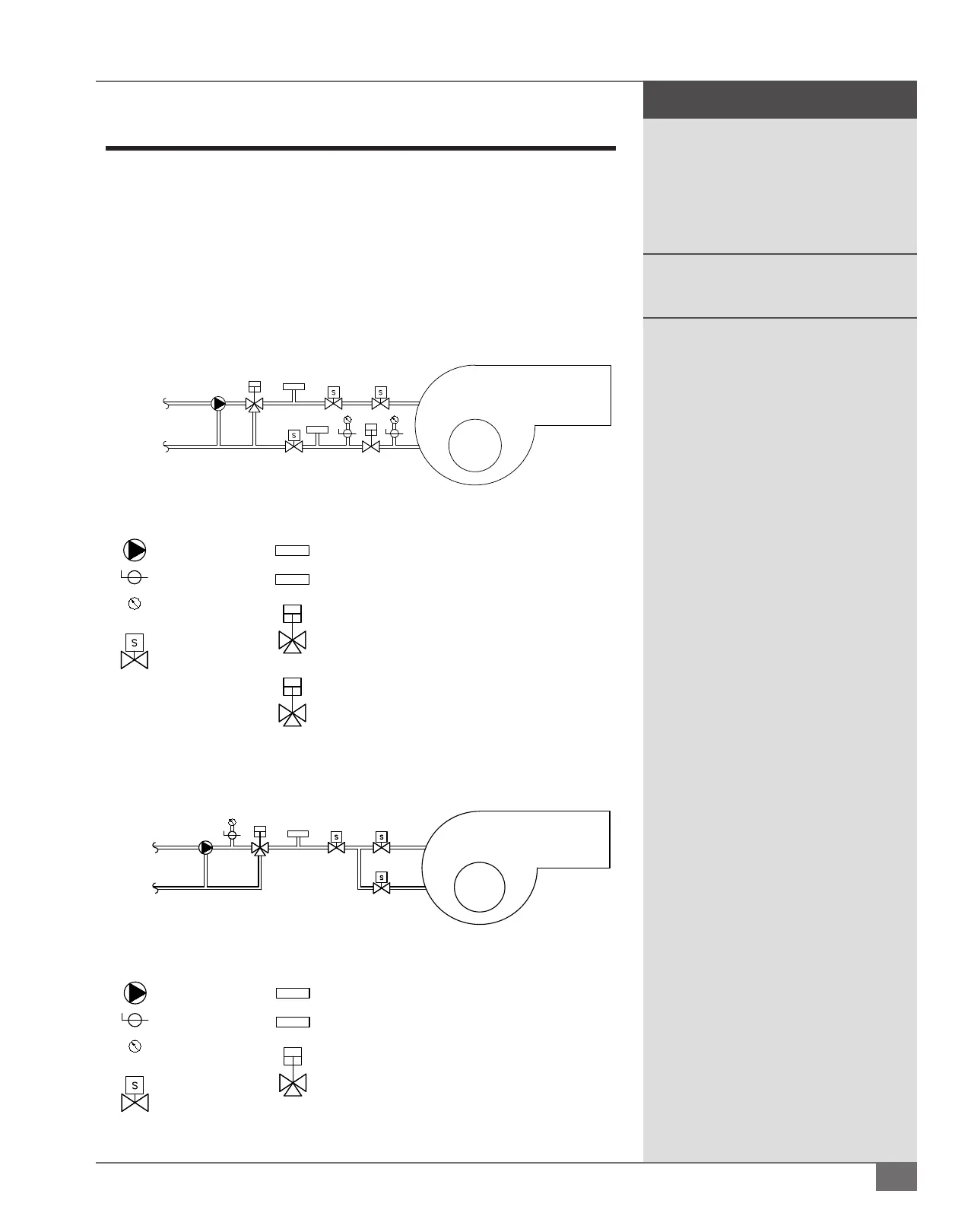

FIGURE 14  FUEL OIL TRAIN VTG2000DF4000DF
FIGURE 15  FUEL OIL TRAIN VTG5000DF/6000DF
