Fulton Endura Boiler
Modbus Communication to a SOLA Display
Purpose:
To show the configuration of the SOLA display to accommodate communication to the ModSync SE.
The SOLA base only communicates to via a baud rate of 38400 and the ModSync only communicates
at a baud rate of 19200 to the boilers.
Procedure (Wiring):
The SOLA Display will typically be wired from MB1 on the SOLA Base to COM 1 on the SOLA Display.
***Please not that this can vary with the job and application. Verify the communication wiring before
proceeding.

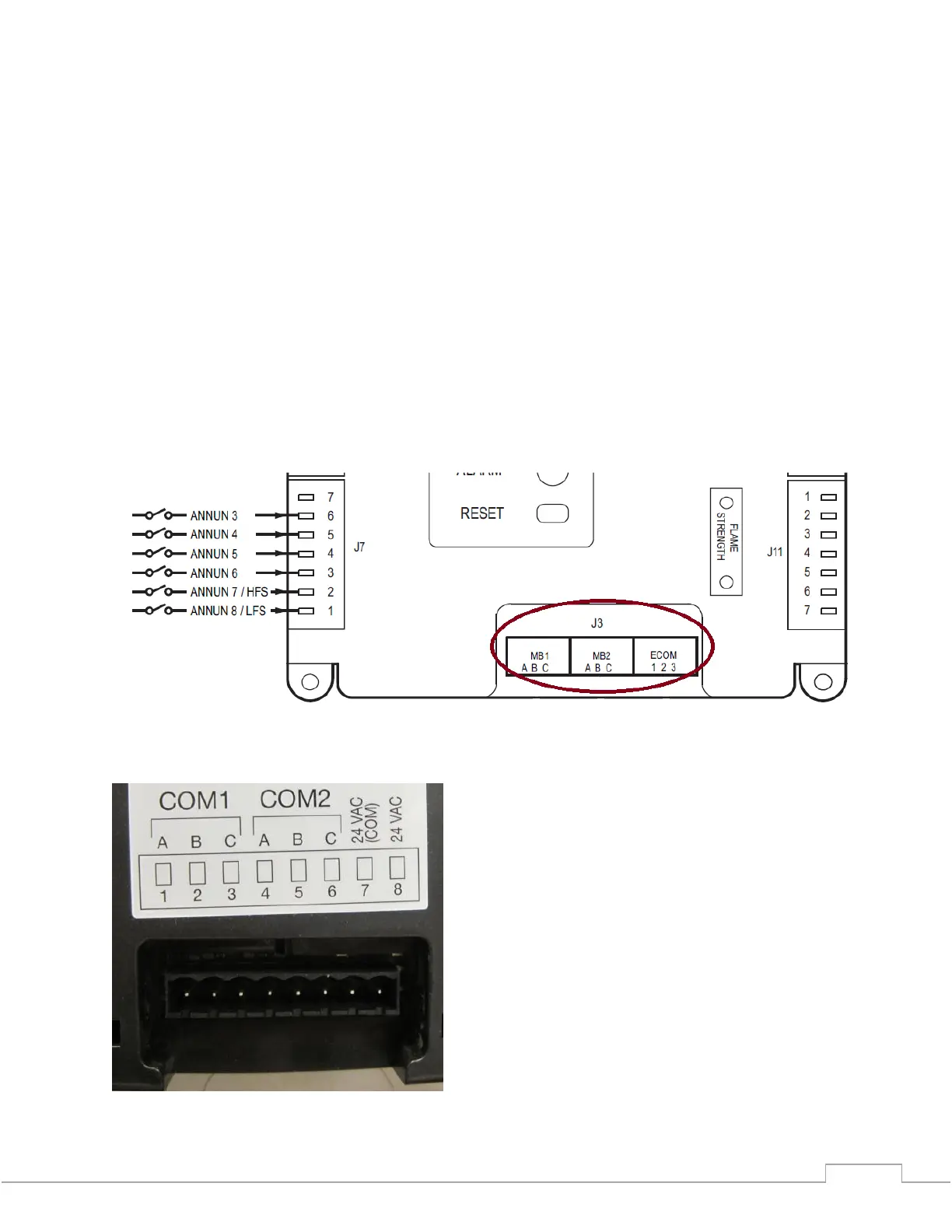

The back center of the SOLA Display will contain the
connections for the Modbus networks COM1 and
COM2.
COM 2 will most commonly be used in these setups
for the ModSync connection.
