FULTON Vantage VTG 2000 - Page 76

© The Fulton Companies 2016
MAINTENANCE VTG-IOM-2016-1214 SECTION 4
4-8
1 3/8”
Electrode
Ignition Pilot

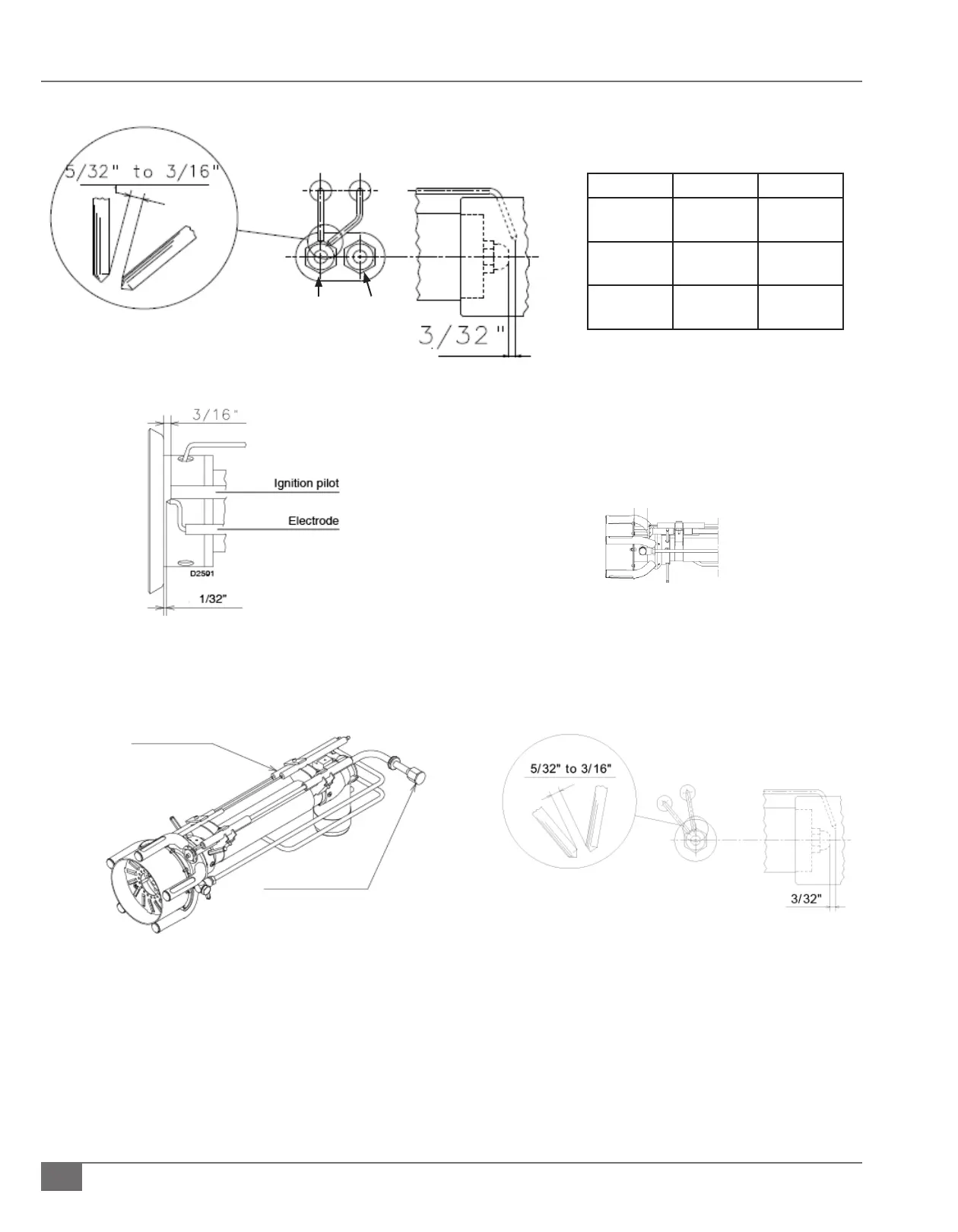

FIGURE 30  RLS160 BURNER ELECTRODE POSITION FOR OIL
OPERATION
FIGURE 26  RLS100130E BURNER ELECTRODE POSITION FOR OIL OPERATION
FIGURE 27 RLS100130E BURNER ELECTRODE POSITION FOR GAS
OPERATION
FIGURE 28  RLS160 BURNER ELECTRODE AND IGNITION PILOT
LOCATIONS
FIGURE 29  RLS160 BURNER ELECTRODE POSITION FOR GAS
OPERATION
1 3/8”
Model
Nozzle A Nozzle B
VTG-
2000DF
5 GPH
60° B
5 GPH
45° B
VTG-
3000DF
7.5 GPH
45° W
7.5 GPH
45° W
VTG-
4000DF
11 GPH
60° B
11 GPH
60° B
A
B
