Program
files
6-4
3.

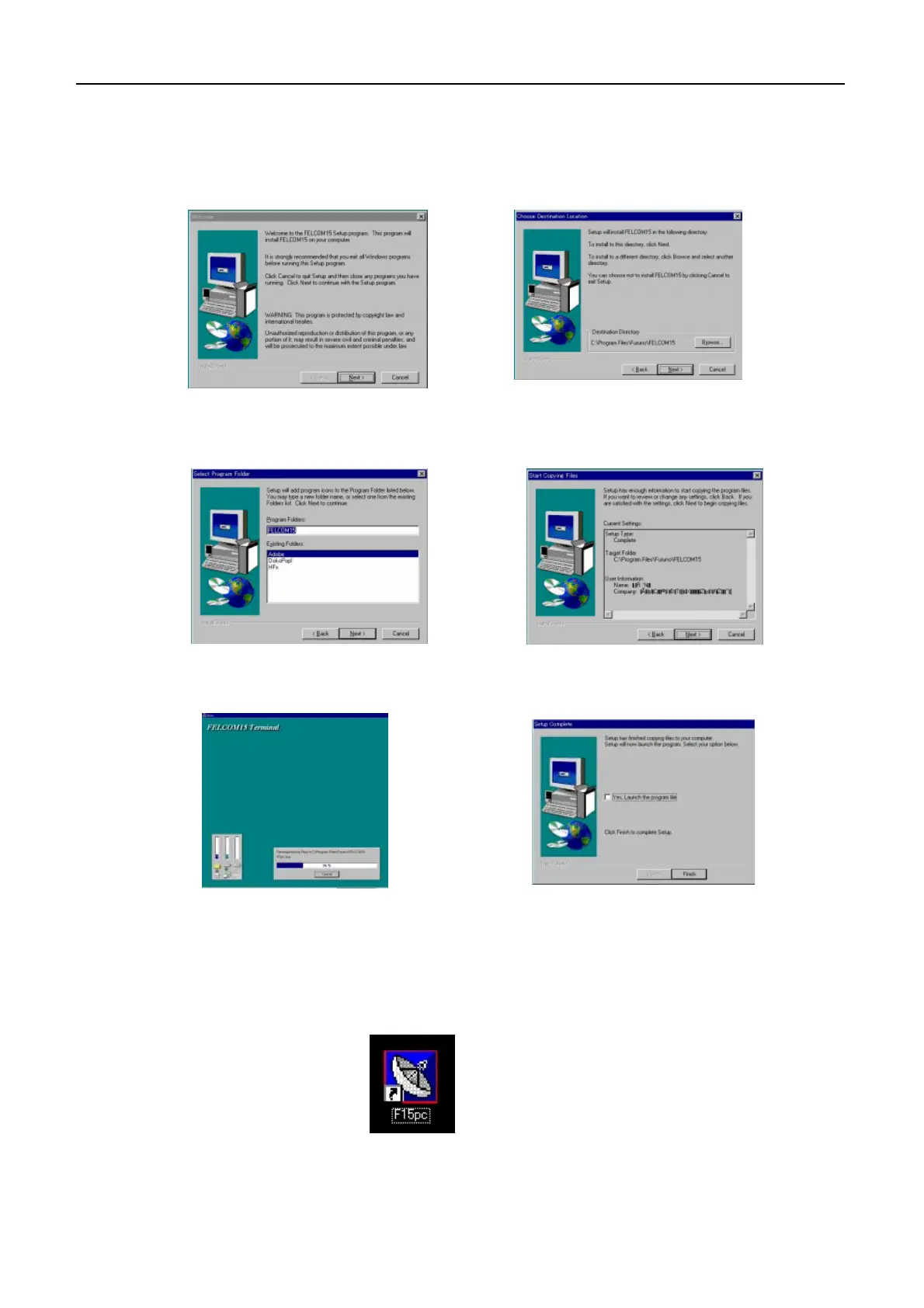

Follow instruction which appears on the screen. When updating FEL
COM15
terminal software, overwrite “F15PC.EXE” file.
4.
After installation, turn of
f the PC and on it again. T
o
run FELCOM 15 terminal
software, double click “F15PC.EXE” icon.
“F15PC.EX
E” icon
1. Click “NEXT”
.
2. Check the fol
der to which the program
is installed and then click “NEXT”.
3. Click “NEXT”
.
5. Wait until the process is completed.
6. Click “Finish”.
4. Click “NEXT”
.
104
106
