Furuno FELCOM 15 Service Manual

5.5 LED
5-15

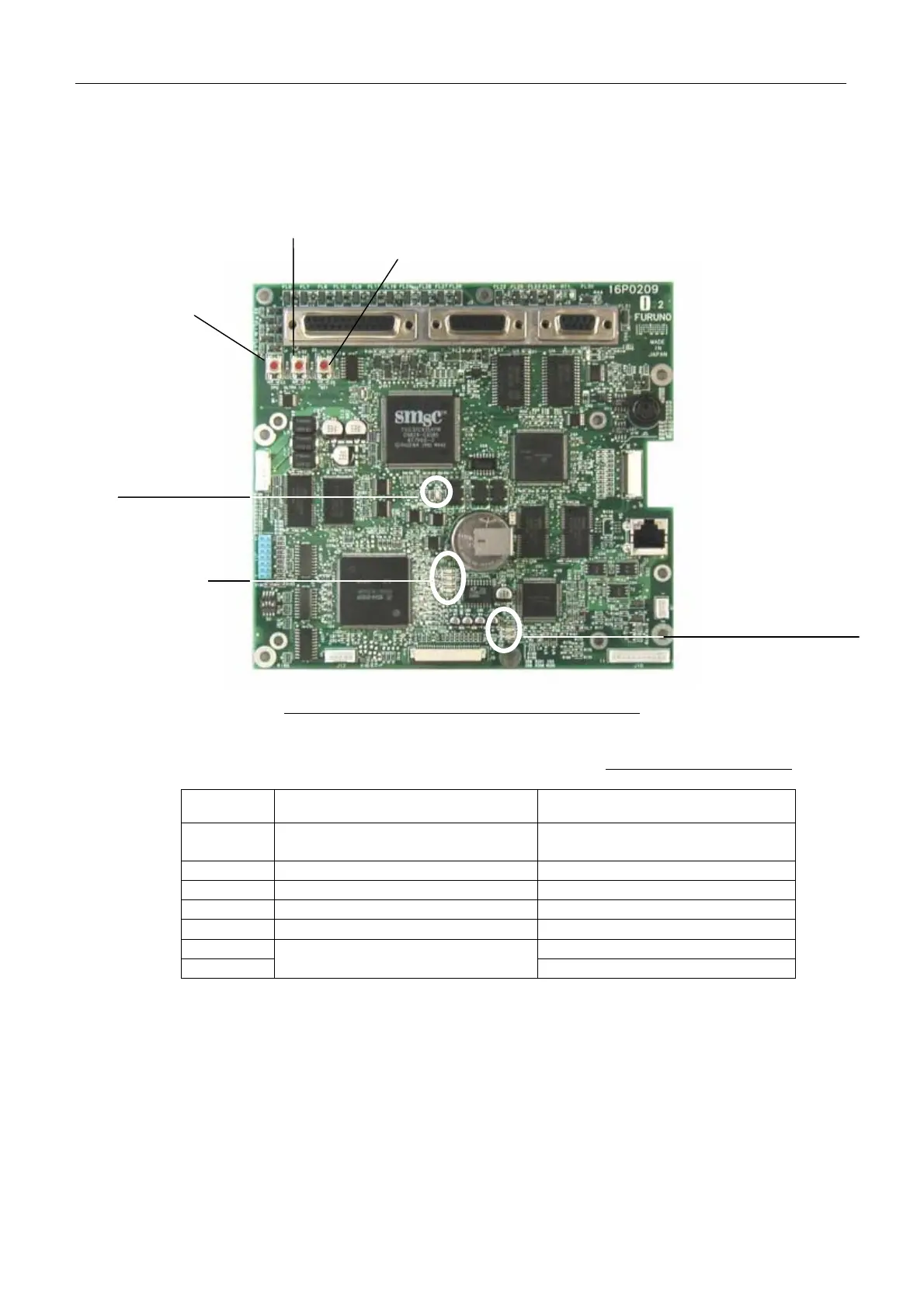

Fig.5.5.2 shows the LED on TERM CPU board (16P0209).
Fig.5.5.2 LED on TERM CPU board (16P0209)
Table 5.5.2 LED function
LED No. Function Status
CR3 Displaying TERM CPU RUN
Blinks every 1 second when
CPU board is worked.
CR4 Not used Always ON
CR5 Not used Always ON
CR6 Not used Always ON
CR7 Not used Always ON
CR8 On when receiving.
CR9
Displaying Ethernet
communication check
On when transmitting.
Not used.
Always ON
CR4
CR5
CR6
CR7
CR3: CPU RUN
Blinks every 1 sec.
Ethernet
communication check
CR8: RX ON
CR9: TX ON
S1: CPU Reset
S2: ULTRA I/O Reset
S3: QZI Reset
