Furuno FELCOM 15 Service Manual

5.6 DIP switch and Reset switch on IC-215
5-17
5.6 DIP switch and Reset switch on IC-215

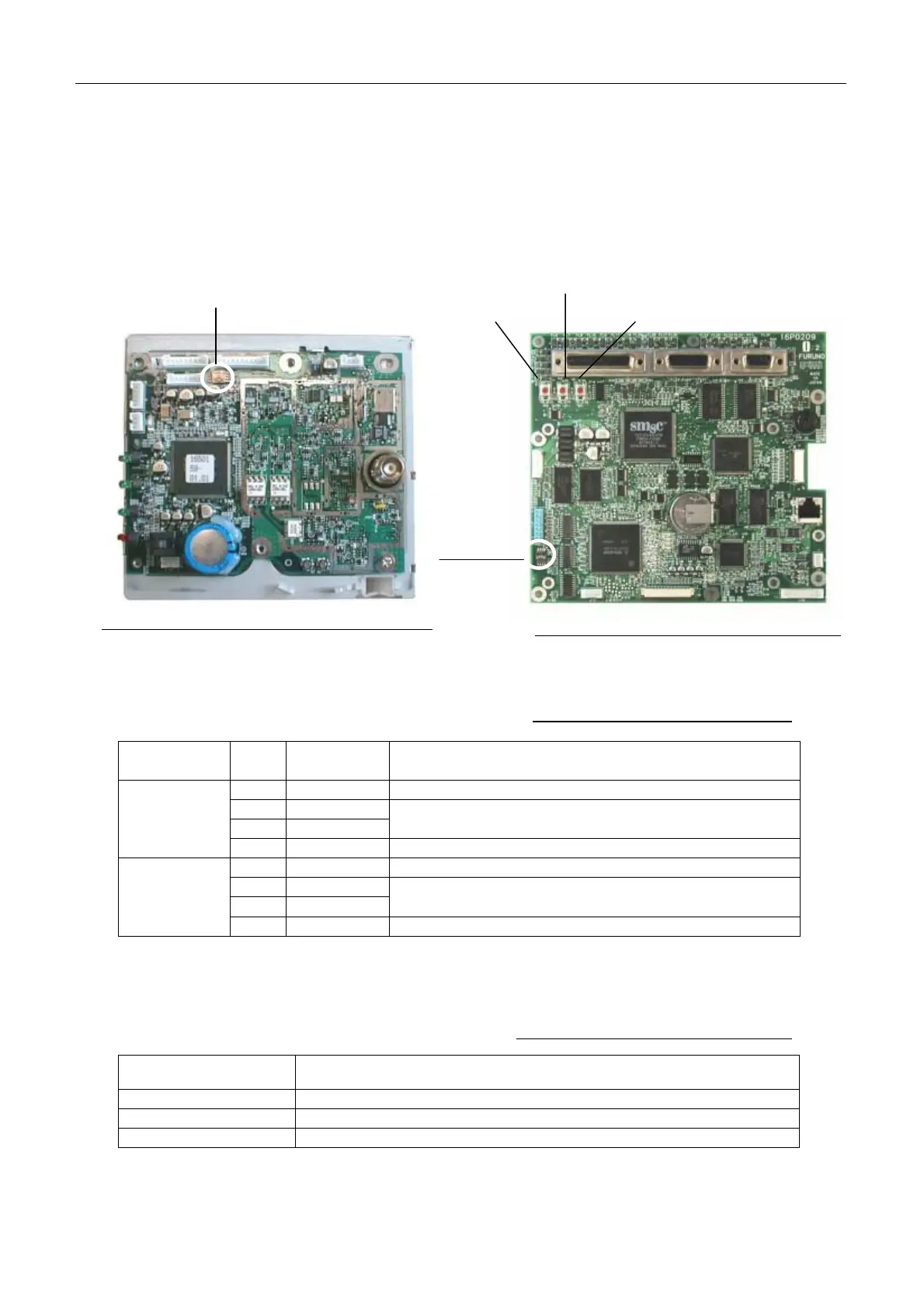

Fig.5.6.1 and Fig.5.6.2 show the switches on the RF CON/CPU board and TERM CPU
board.
Table 5.6.1 lists the function of DIP switch.
Table 5.6.1 Function of DIP switch
Board S1
Factory
default
Function
#1 OFF For factory adjustment (For writing the boot program.)
#2 OFF
#3 OFF
Not used
RFCON/CPU
(S1)
#4 OFF For factory adjustment
#1 OFF Not used
#2 OFF
#3 OFF
For factory adjustment
(For the check for ALM function)
TERM CPU
(S5)
#4 OFF Not used
Table 5.6.2 lists the function of the reset switch on the TERM CPU board. No need to
work for these switches.
Table 5.6.2 Function of Reset switch
Switch Action
S1: CPU Reset Reset switch for CPU (U28). Same as the power-on and off.
S2: ULTRA I/O Reset Reset switch for ULTRA I/O (U7). (I/O action remains stopping.)
S3: QZI Reset Reset switch of QZ1(U21) for controlling LCD.
S1: CPU Reset
S2: ULTRA I/O Reset
S5: Dip SW
S1: Dip SW
S3: QZI Reset
Fig.5.6.1 Dip Switch on RFCON/CPU board
Fig.5.6.2 Switches on TERM CPU board
