9. INSTALLATION
9-6
Terminator

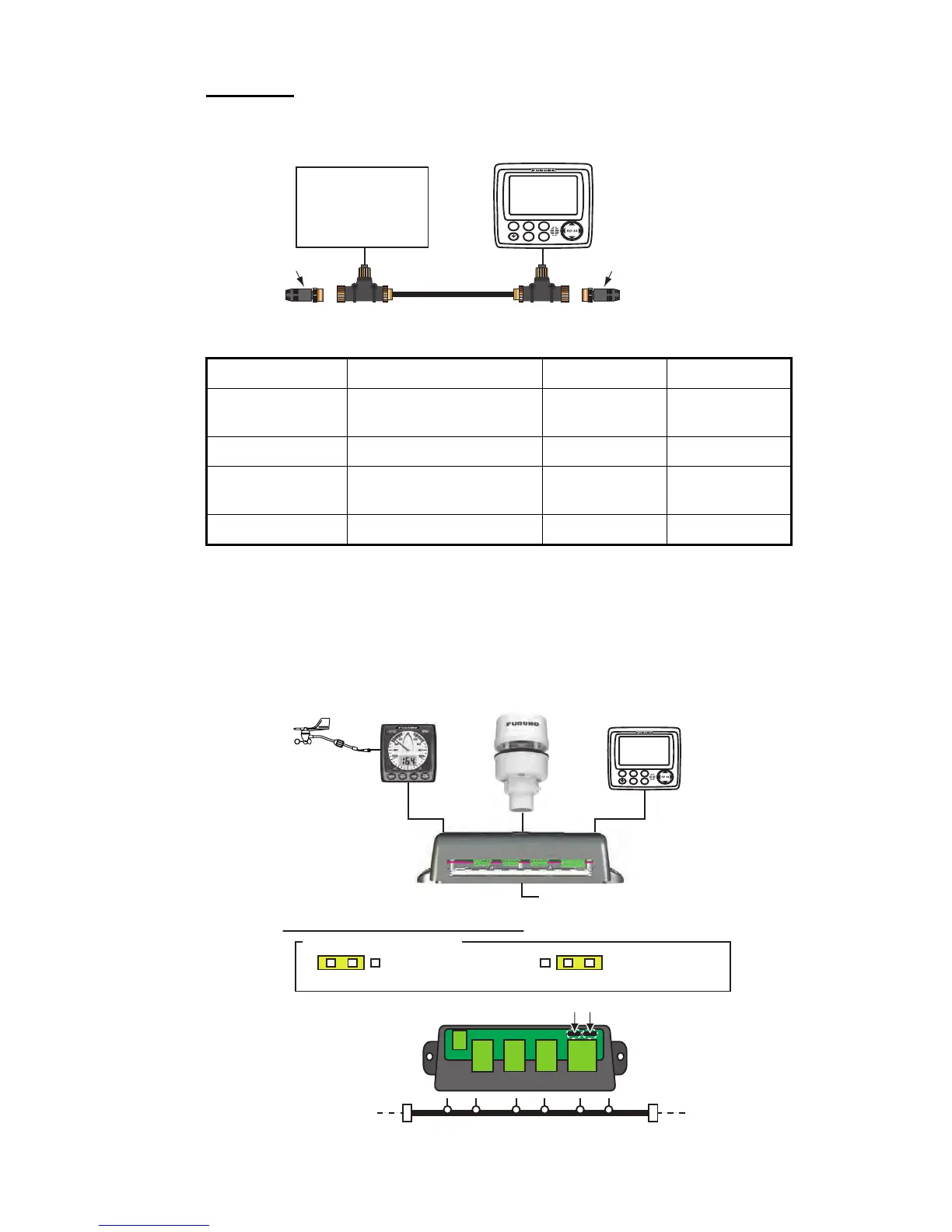

• Connection to the backbone cable
Furuno CAN bus terminators are available with the following part numbers. The ter-
minator should be attached at each end of the backbone cable.
• Connection to the Junction box FI-5002
The FI-5002 has two terminal resistors (R1, R2).
1) When no backbone cable is connected, R1 and R2 are set to ON position.
2) When one backbone cable is connected, either R1 or R2 is set to ON position.
3) When two backbone cables are connected, R1 and R2 are set to OFF position.
Parts name Type Code Number Remarks
Male terminator LTWMN-05AMMT-
SL8001
000-160-508-10 Mini connector
Female terminator LTWMN-05AFFT-SL8001 000-160-509-10 Mini connector
Male terminator LTWMC-05BMMT-
SL8001
000-168-604-10 Micro connector
Female terminator LTWMC-05BFFT-SL8001 000-168-605-10 Micro connector
