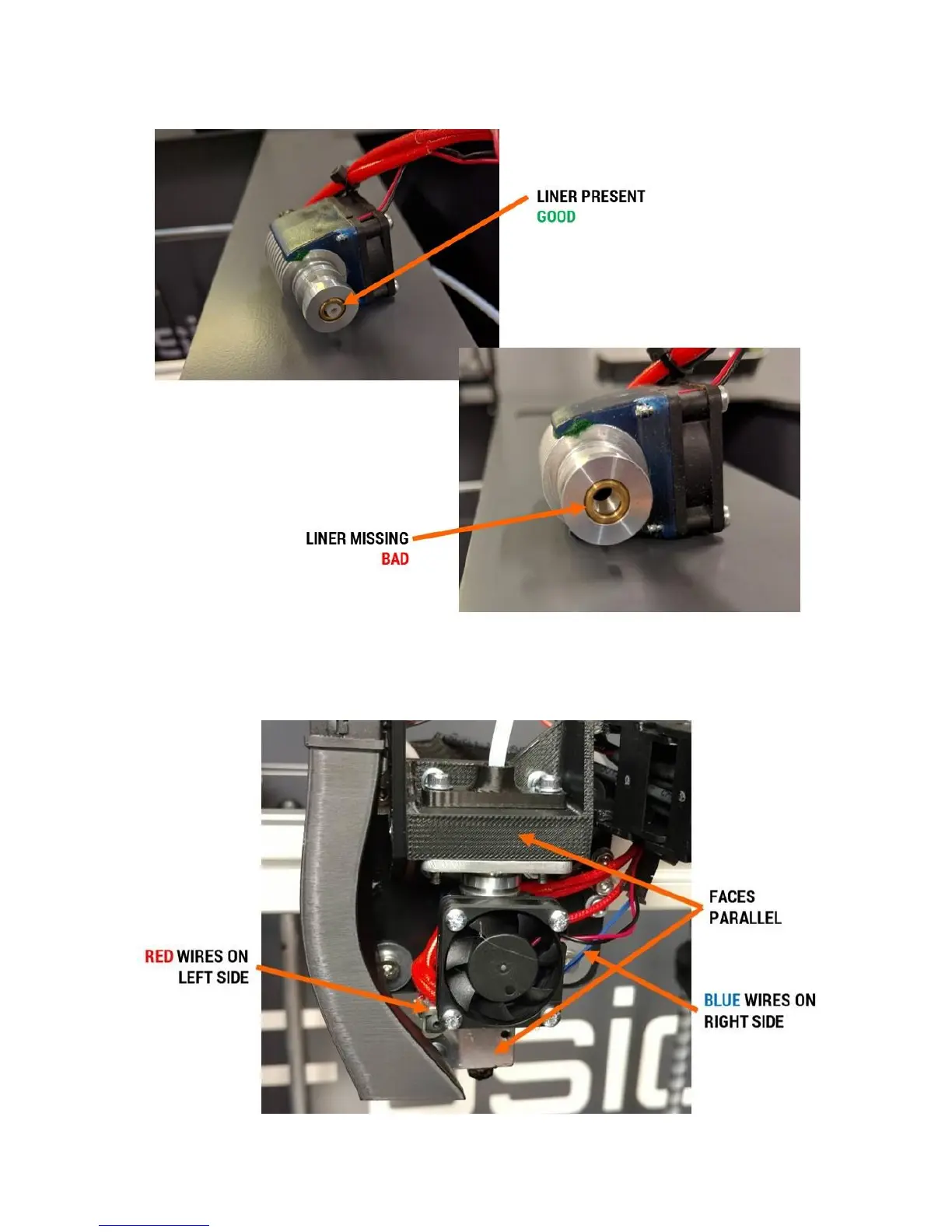

Press the print head into the pocket on the underside of the part. It should be a light press fit so you
can press it in and then it will stay put by itself. Orient the print head so the flat face of the heater block
faces forward and the red wires are on the left side and the blue wires are on the right side.
