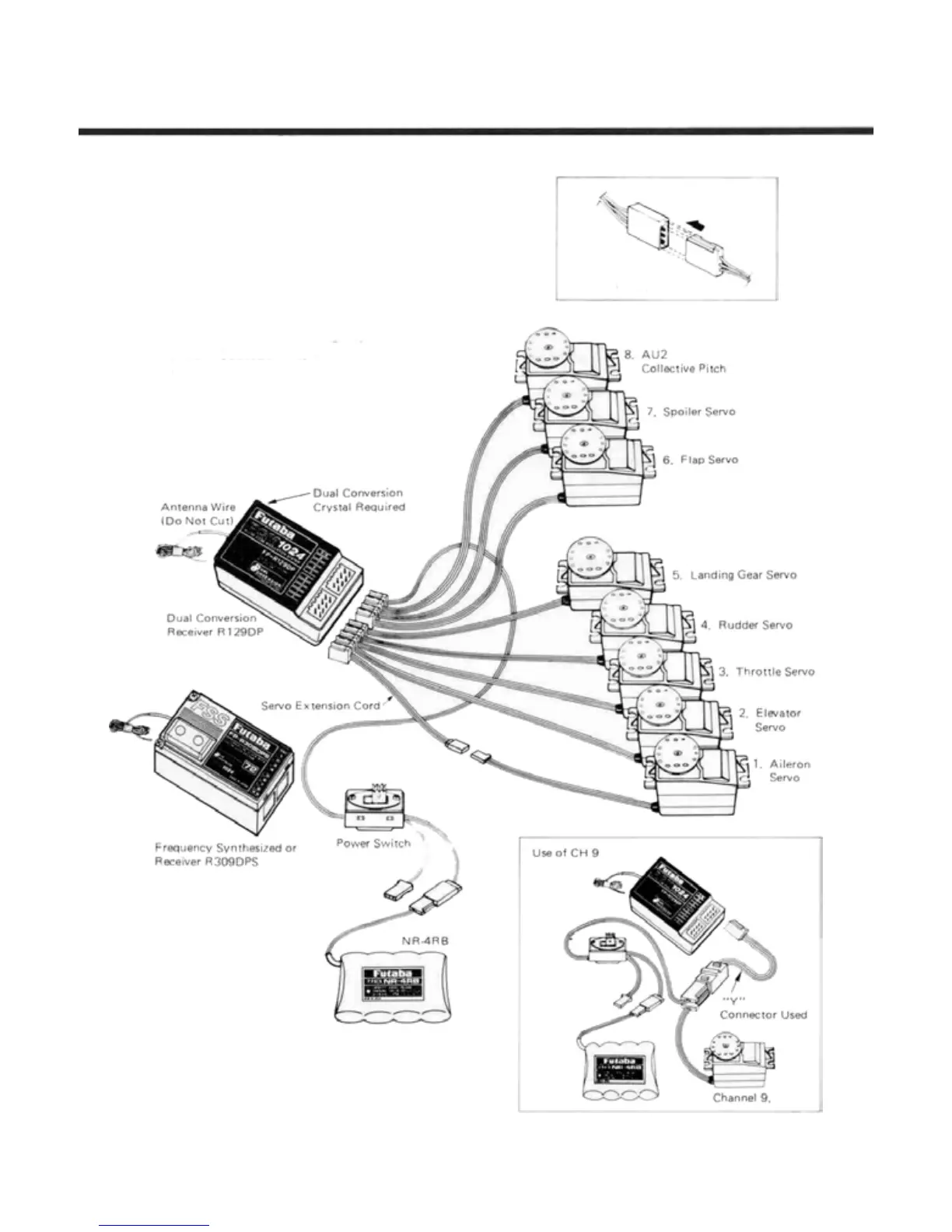

AIRPLANE RECEIVER AND SERVO CONNECTIONS
The receiver output order is shown below:
1. AIL Aileron (Ail 1 if FPN or ADF on. Elevon
1 if EVN on)
2. ELE Elevator (V-Tail 1 if VTL on, Elevon 2
if EVN on)
3. THR Throttle
4. RUD Rudder (V-Tail 2 if VTL on)
5. GEA Landing Gear (Elev 2 if ALV on)
6. FLP
Flap (Ail 2 if FPN activated)
7. AU1 Spoiler (Ail 2 if ADF is used)
8. AU2 Collective Pitch
9. CH9 Channel 9
Be sure to insert
proper direction
Airplane Section, Page 76
