＜ BeforeUse ＞
ŶőťŸŶŒŶőťŸŶŕŃƇƈƙƌƆƈŃƖƈƗƗƌƑƊ
S.BUS/S.BUS2 servos or a telemetry sensor can be connected directly to the T18SZ. Channel setting and
other data can be entered for the S.BUS/S.BUS2 servos or sensors.
6%866%86VHUYR
6%866%86
GHYLFH
7HOHPHWU\VHQVRU
76=

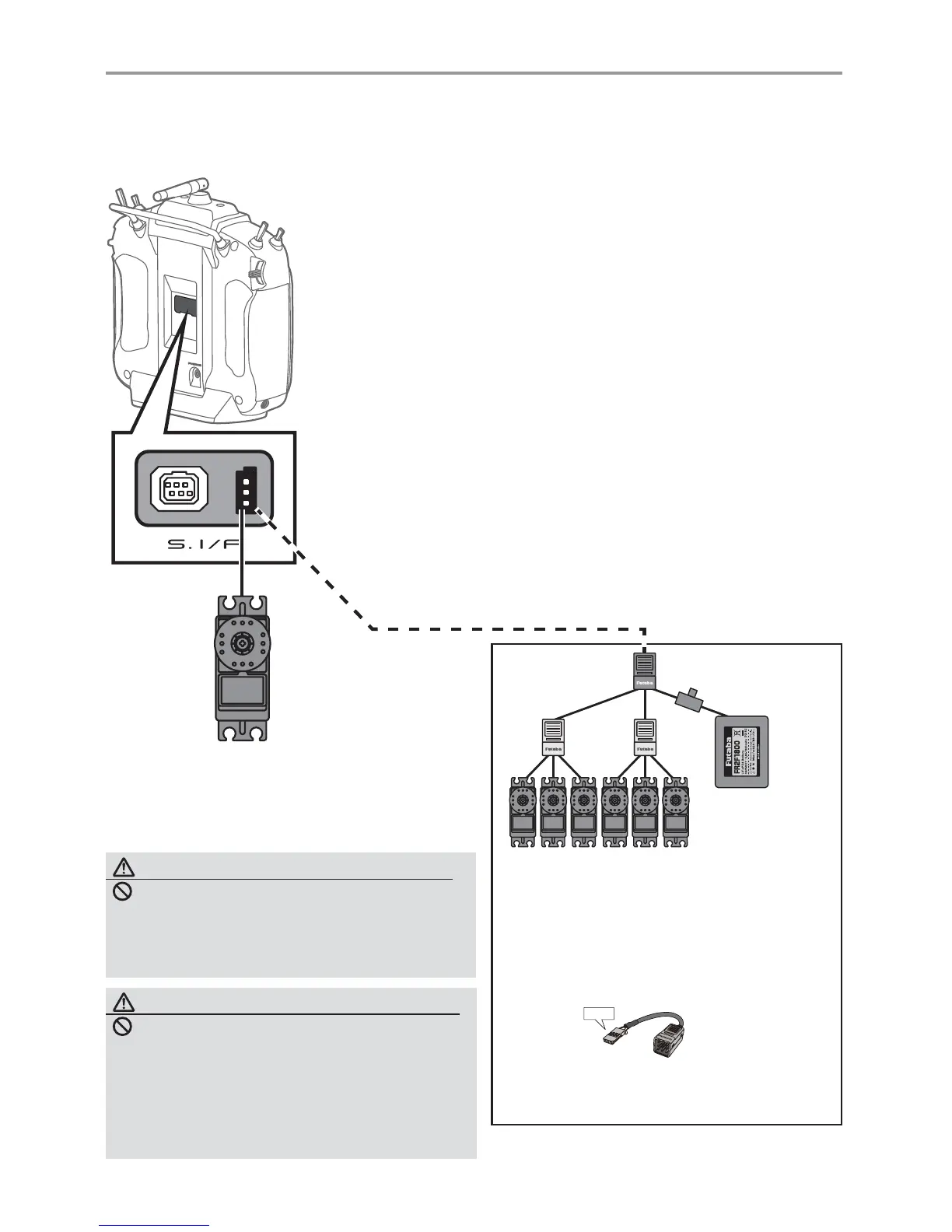

1. Connect the S.%US device you want to set
with as shown in the Àgure.
2. Turn on the transmitter power.
3. Call the setup screen.
Servo: System Menu
→
S.%US servo
Sensor: Linkage Menu
→
Sensor
4. Perform setting in accordance with each
screen.
5. This sets the channel and other data for each
S.%US servo, or telemetry device to be used
with the S.%US device or receiver.
*It is not necessary to carry out multiple battery
connections like a T18MZ/T14SG.
*When connecting many current-consuming
servos, please use an additional power supply
hub.
And electric power is supplied to a servo with
another power supply.
%DWWHU\
+XE +XE
+XE
ق$QRWKHUSRZHUVXSSO\ك
+XE
ق$QRWKHUSRZHUVXSSO\ك
6%866HUYR
●Whenseparatepowersupplyused
When a large number of servos are used or
when high current servos are used, the servos
can be driven using a separate Power Supply
3-way hub.
Used when using a separate
power supply battery.
6ZLWFK
Green
WARNING
DonotusetheS.I/F(S.BUSservosetup)connector
withanythingotherthanhigh-voltage-capable
S.BUSservos.
■ Transmitterbatteryvoltage(6.6V)isconveyed
directly.
Usinganythingotherthanhigh-voltage-
capableservospresentsthedangerthatthey
willbreak.
WARNING
DonotdisconnectorturntransmitterpowerOFF
whileS.BUSservoandtelemetrysensordatais
beingsaved.
■ S.BUSservoandsensorsavedatawillbelost,
resultinginmalfunction.
