2.2 Device Types
This manual provides information on the following access terminals:
- GAT Access 6100 B, F, and ISO
- GAT Access 6100 F PoE
- GAT Access 6100 F BIO
- GAT Access 6100 F Enrollment Station
- GAT TimeAxx 6150 B, F, and ISO
These terminals share the same electronic hardware and have similar operating modes and functions. The difference
is the type of RFID technology supported, the functionality, the housing type of the GAT TimeAxx 6150, and the
fingerprint-reading functionality.
The name "GAT Access 6100" is used in this manual to refer to all terminals in the GAT Access 6100 series in
general. When information is only applicable for a certain type of access terminal, the type will be indicated.
The GAT Access 6100 terminal is used for access control in leisure facilities such as swimming pools, spas, and
fitness clubs. It can be installed at turnstiles or gates that control the entry or exit to certain areas. The access terminal
checks the authorization of visitors and allows entry through an access point such as a turnstile or gate.
The terminal is designed to be wall-mounted or integrated with a turnstile (using the GAT Holder system). It has a
graphical LC-display, 4 function keys for configuration or user input on the front side, an LED bar with red/green/yellow
lights for status indication, and a blue/red/green LED on the RFID scan field.
1 ... Four-segment LED display
2 ... Monochrome display (LCD)
3 ... Function keys
4 ... Illuminated, round scan field
5 ... Device rear part
6 ... Device front part

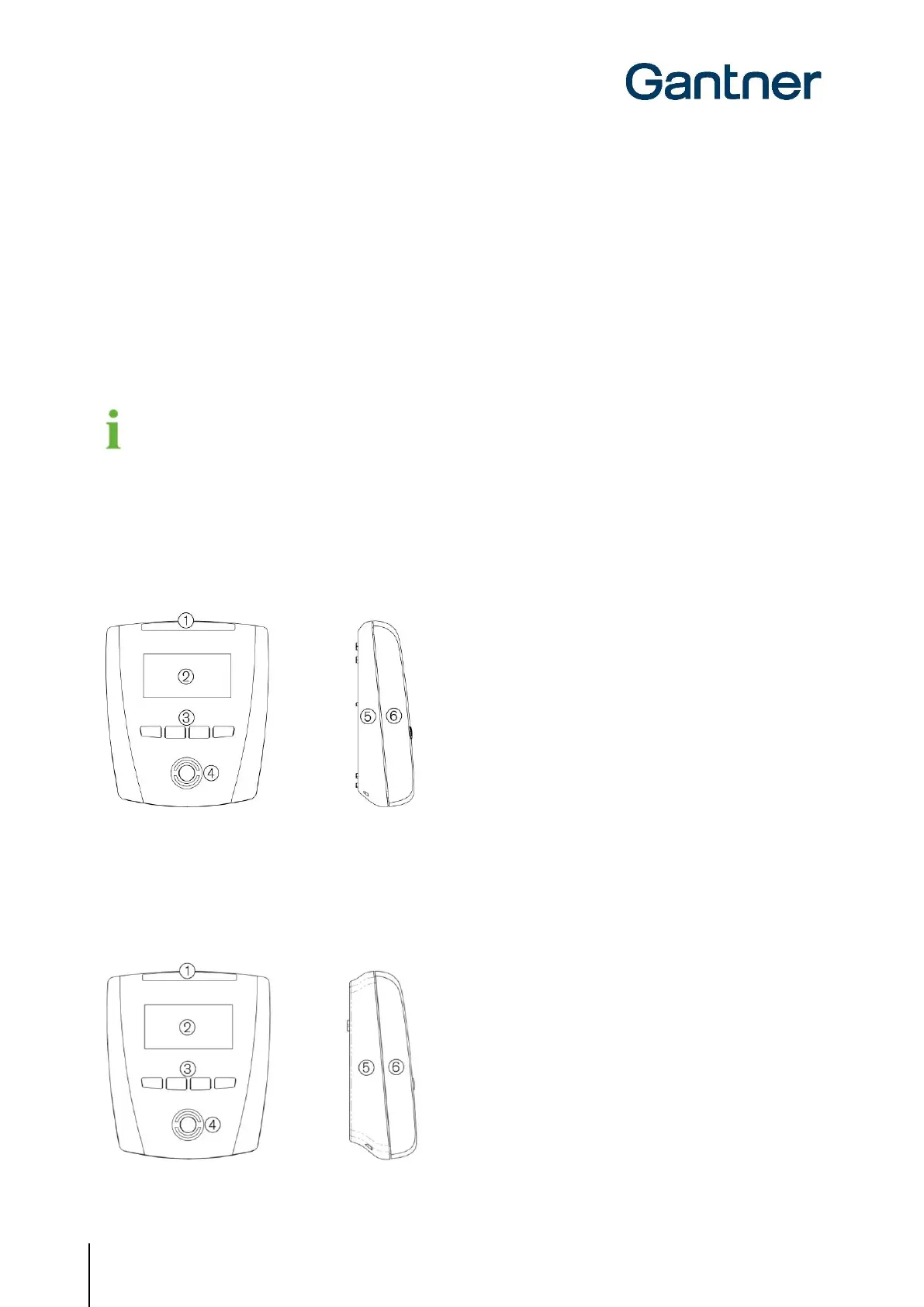

Figure 2.1 - GAT Access 6100
The functionality and application of the GAT Access 6100 F PoE are similar to the GAT Access 6100 with the main
difference being the ability of the GAT Access 6100 F PoE to operate using power over Ethernet (PoE). A single
Ethernet cable supplies the terminal with its power and network requirements.
1 ... Four-segment LED display
2 ... Monochrome display (LCD)
3 ... Function keys
4 ... Illuminated, round scan field
5 ... Device rear part
6 ... Device front part
Figure 2.2 - GAT Access 6100 F PoE
