5.3.2 Communication Parameters
Select the menu item "Communication" in the service menu and press key 4 "OK". This brings up the communication
menu.

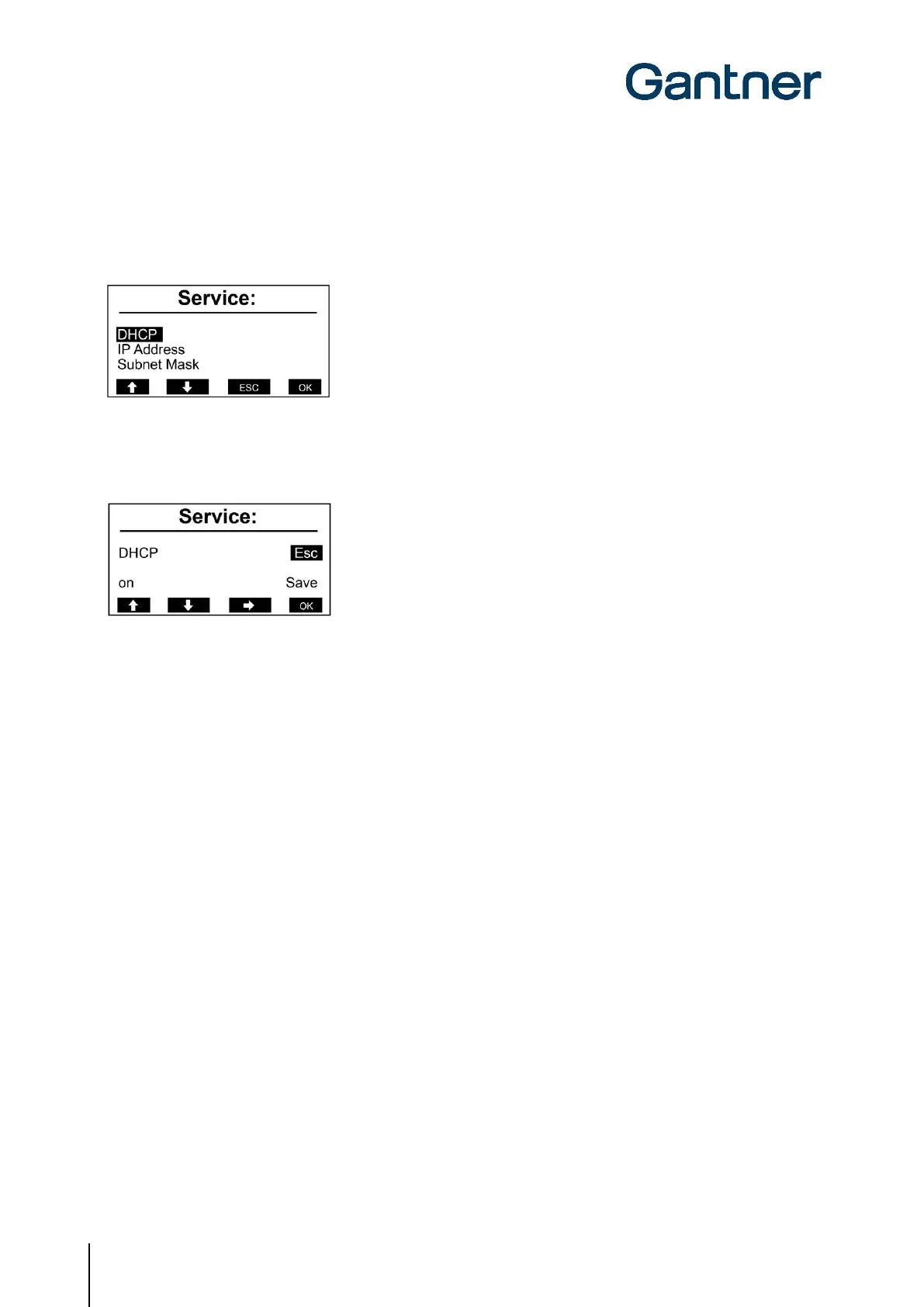

Figure 5.6 - Communication menu
When selecting a menu item and pressing "OK" the settings for the menu item are shown. The following example
shows the DHCP settings.
Figure 5.7 - DHCP settings
With key 3 "➔" you can move the cursor (black background) to select the available options. Move the cursor to "on"
and then you can change between "on" and "off" with the keys 1 "" and 2 "". This principle works for all the settings
in the service menu.
The following settings can be made:
- DHCP: Set to "on" if a DHCP server is used in the network. In this case, the remaining settings (IP
address, subnet mask, gateway, DNS) will be set automatically by the DHCP server.
- IP Address: If no DHCP server is used for automatic IP assignment, enter the IP address of the GAT Access
6100.
- Subnet Mask: Definition of the network prefix.
- Default Gateway: IP address of the default gateway.
- Primary DNS: IP address of the primary DNS (domain name server).
- Secondary DNS: IP address of the secondary DNS (domain name server).
- Device Name: Network name of the GAT Access 6100. Standard is "GA" + part number (6 digits) + serial
number (7 digits) of the device.
- MAC Address: The hardware MAC address of the GAT Access 6100. This cannot be changed.
