Gantner GAT Access 6100 Series User Manual

GAT Access 6100 Terminal Series
Operation
www.gantner.com HB_GAT-ACCESS6100--EN_14 65
6.3 Control and Display Elements
GAT Access 6100 F Enrollment Station
GAT Access 6100 F BIO
GAT Access 6100 / GAT Access F PoE
1 ... Four-segment LED display
2 ... Monochrome display (LCD)
3 ... Function keys
4 ... Illuminated RFID scan field
8 ... Fingerprint sensor

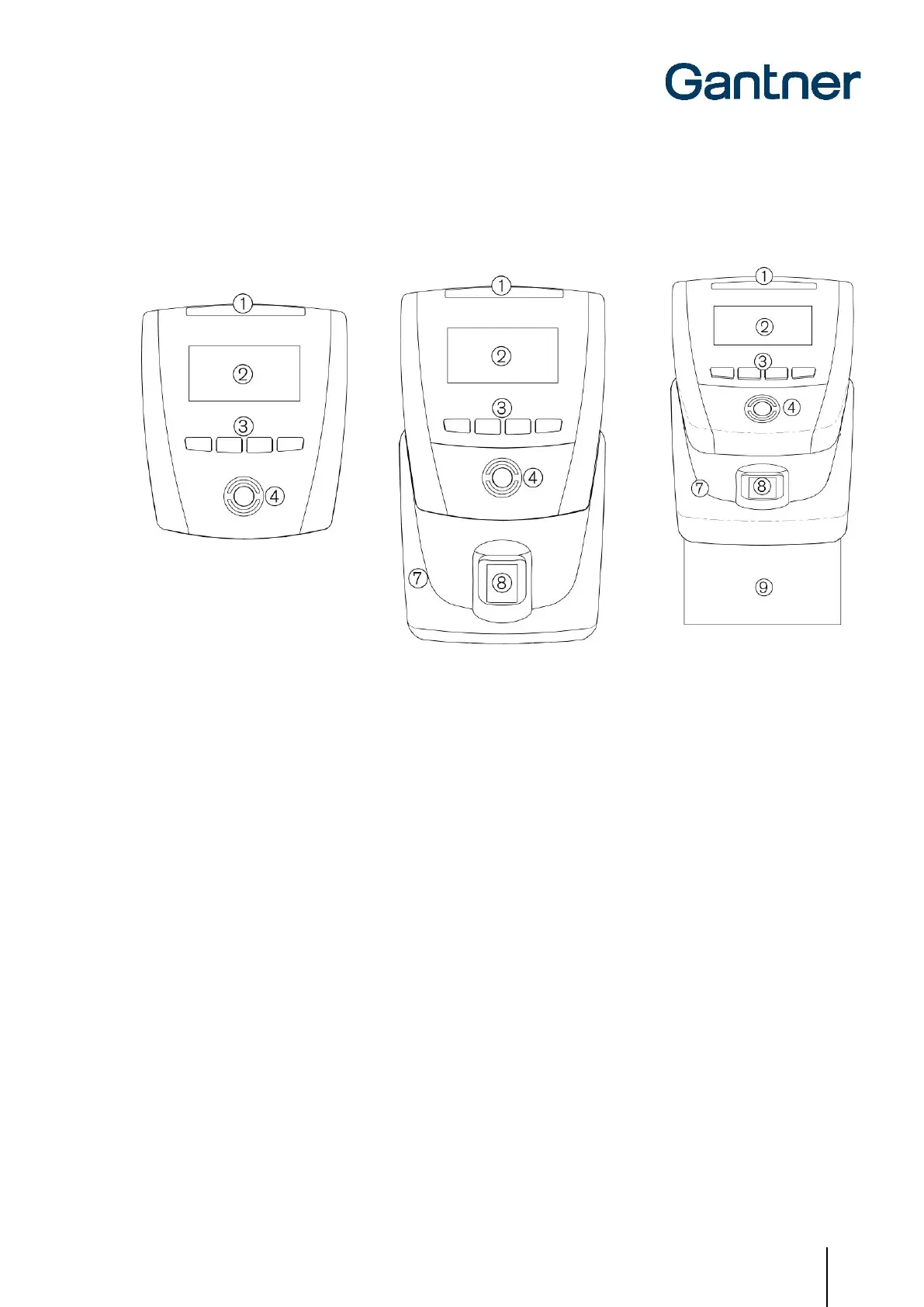

Figure 6.3 - Control and display elements of the GAT Access 6100 terminals
The identification of users is done using RFID data carriers, which are read by holding them next to the RFID scan
field (4) of the internal antenna. The LED of the scan field changes color accordingly to indicate different status
information. Additional status information is indicated via the 4-segment LED display above the display.
The GAT Access 6100 terminals also have a monochrome LC display to show user information. The display language
can be changed in the functionality settings (see "5.4. Configuration Settings").
For user input, e.g., to select certain functions or for acknowledgement, the GAT Access 6100 has four keys on the
front (3) to which different functions can be assigned. The assigned functions are shown on the display.
