Attaching the GAT Access 6100 F PoE to the Mounting Plate
After the connection cable is connected to the GAT Access 6100 F PoE, the terminal is attached to the mounting plate
as follows.

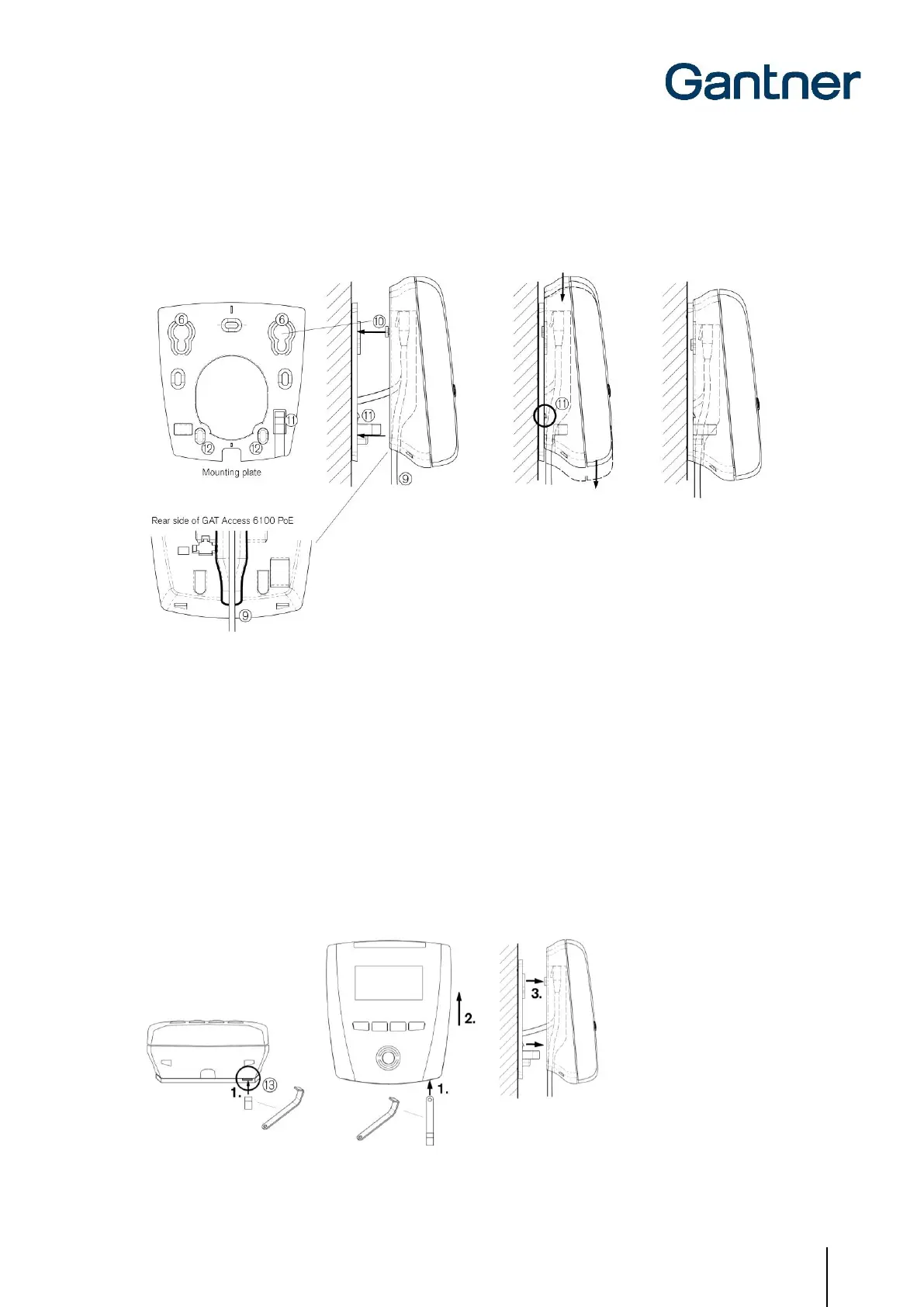

Figure 3.5 – Attaching the GAT Access 6100 F PoE to the mounting plate
1. Ensure the correct orientation and place the GAT Access 6100 F PoE onto the mounting plate so that both
hooks (10) enter the corresponding holes (6) in the mounting plate and both hooks (12) of the mounting plate
also lie in the holes of the GAT Access 6100 F PoE. For surface-mounted cabling, ensure that the connection
cable runs in the guide slot (9) on the rear of the GAT Access 6100 F PoE.
2. Push the GAT Access 6100 F PoE downwards until the hook (11) locks into place in the housing of the GAT
Access 6100 F PoE. Ensure that the terminal is securely attached and cannot be removed.
Detaching the GAT Access 6100 F PoE
1. Insert the long side of the special tool (13) into the hole on the terminal housing until the hook (11) is released.
2. Push the GAT Access 6100 F PoE upwards and remove to the front.
